Section 1: Architectural Split of Thermal Processing Actions in Modern Cellar Layouts
Running a commercial brewery means managing both the hot side and the cold side well.
For a growing brewery, lifting malt sacks and stirring open tanks by hand is risky and slow.
Moving up to a dedicated 3 vessel brewing system gives you the foundation for busy, multi-batch days.
Every fermentation in the cellar depends on a steady, predictable hot side to make good wort.
If the sugars and proteins are not converted well during mashing, the fermentation goes wrong.
That leads to off-flavors, poor shelf life, and uneven attenuation that can hurt your brand.
A professional hot side removes the common errors of small, manual brewing.
Whether you run a taproom or a big plant, your hot-side gear shapes your margins.
This guide breaks down the flow, the layout, and the engineering behind a strong hot-side system.
Section 2: Mechanical Fluid Flow and the Technical Elements of Extraction Loops
To keep your beer steady across thousands of barrels, you need a solid mashing routine.
The basic process pulls starches from crushed grain and turns them into sugars using hot water.
Pumps push hot water through a grist hydrator, which wets the crushed malt evenly before it enters the mash tun.
Before the wort moves to the cellar, the hot side runs through several temperature steps.
The water enters the tanks through valves, and mixing blades gently turn the heavy grain mash.
These blades keep the whole mash moving at a steady pace without shredding the grain husks.
The spent grain is then separated in a lauter tun, where a false bottom holds the grain bed while the sweet wort drains.
To read about vessel design and sanitary flow, see the European Hygienic Engineering & Design Group (EHEDG).
Using a Grist Hydrator
A grist hydrator mixes the crushed malt with hot water before it hits the mash tun.
It wets every grain evenly, which prevents dry clumps and dough balls in the mash.
Even wetting means better sugar extraction and a smoother, more consistent mash.
It also reduces dust and makes loading the mash tun faster and cleaner.
A simple grist hydrator is an easy upgrade that improves almost every brew.
Lauter Rakes and Spent Grain Removal
The lauter tun does more than just hold the grain bed.
Lauter rakes are motorized arms that gently stir and cut the grain bed to keep the wort flowing.
Without rakes, the bed can compact and stop draining, which slows the whole brew.
After lautering, a grain-out system or plow pushes the spent grain out quickly for the next batch.
Good rakes and spent-grain removal speed up turnaround and protect your daily schedule.
Oxygenating Wort Before Fermentation
Yeast needs oxygen at the start of fermentation, even though oxygen is bad later.
After the wort is cooled, a small, controlled dose of oxygen or sterile air is added before it reaches the yeast.
This oxygen helps the yeast grow a healthy population and start a strong, clean fermentation.
An inline oxygenation stone or diffuser adds the right amount without overdoing it.
Proper wort oxygenation gives you faster, more reliable fermentations.
Section 3: Digital Automation Architecture and Parameter Regulation
Moving away from manual work means adding an turnkey brewhouse with a modern brewhouse control network on your floor.
The core system uses pneumatic valves, steam jackets, digital flow meters, and variable-speed pump controllers.
A master PLC panel watches temperature, pressure, and density in real time during the mash and boil.
If the temperature drifts in the heating loop, the system adjusts the steam valves to correct it.
Automation removes human error from the hot side, preventing boil-overs and ruined batches.
By trusting the software to control the heating rate, you keep your recipes identical week after week.
That precision means every batch from the whirlpool hits your target gravity, protecting consistency.
To read about yeast and cell counts, see the journals from the American Society of Brewing Chemists (ASBC).
Automated Brewing Water Blending
Automated water blending gives you the right brewing water every time.
The system mixes hot and cold water to an exact temperature, and can dose in treated or salted water.
This hits your strike and sparge temperatures automatically, without an operator watching a valve.
Consistent water temperature and chemistry mean a more consistent mash and beer.
Automated blending saves time and removes a common source of batch-to-batch variation.
Section 4: Operational Economics and Scale Selection Metrics
Sizing your hot-side gear means looking at real numbers and your weekly volume.
For a startup nano brewery or a recipe lab, a compact 1 bbl brewing system is a low-risk way to test.
These small pilot setups let your team try new ingredients without wasting thousands in materials.
But if your plan relies on high-volume wholesale, a pilot system will bottleneck you fast.
A mid-size setup lets a growing brand raise output without adding much daily labor.
By cutting turnaround times, you can run several batches in one eight-hour shift.
That jump in equipment use lets a regional brand scale up without doubling its floor space.
To review water-use charts, see the archives from the Brewers Association.
Section 5: Purchasing Strategy and Sourcing Safety Protocols
Choosing how to buy your gear means balancing your startup budget against long-term upkeep.
Browsing verified brewhouse equipment for sale helps you find reliable machines at a lower price.
Buying used gear from closed breweries can save thousands, freeing money for packaging machines.
But used parts need care: hidden cracks in steam jackets or pitted welds can fail badly.
New custom systems come with warranties, support, and modern wiring that meets code.
A common middle path is to buy new core vessels and source used storage tanks.
Whatever path you choose, check every liquid-contact surface to prevent contamination later.
Modular Components and Standard Connections
A modular brewhouse is easier to expand and repair.
Modular systems use standard fittings, like tri-clamp connections, so parts swap out quickly.
You can add a vessel, a pump, or a heat exchanger later without rebuilding the whole system.
Standard connections also make cleaning, maintenance, and finding spare parts much simpler.
Buying modular gear with standard fittings protects your investment as you grow.
Section 6: Comparing Multi-Vessel Tank Topologies and Mechanical Advantages
The best layout for your hot side depends on your volume, your space, and your budget.

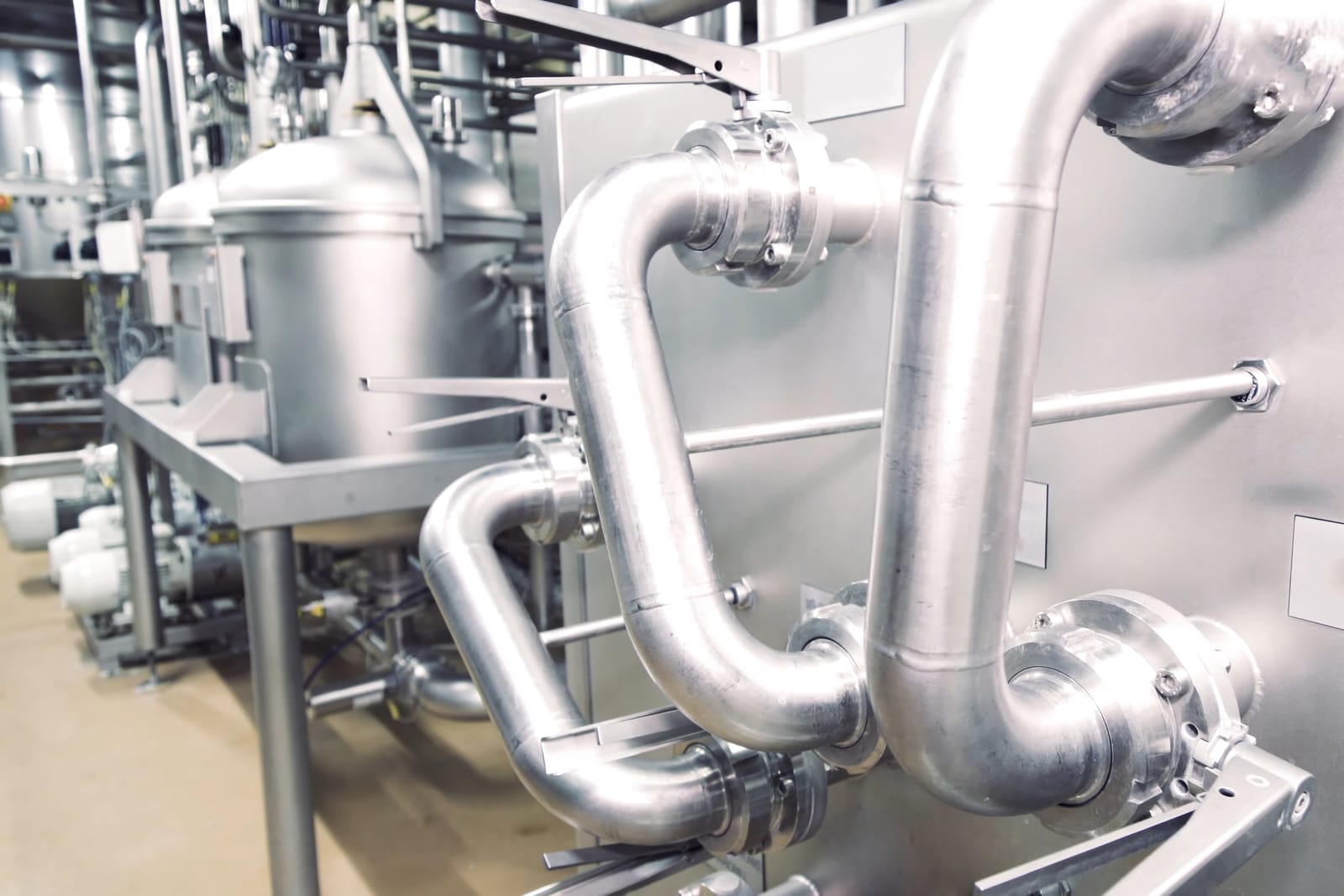

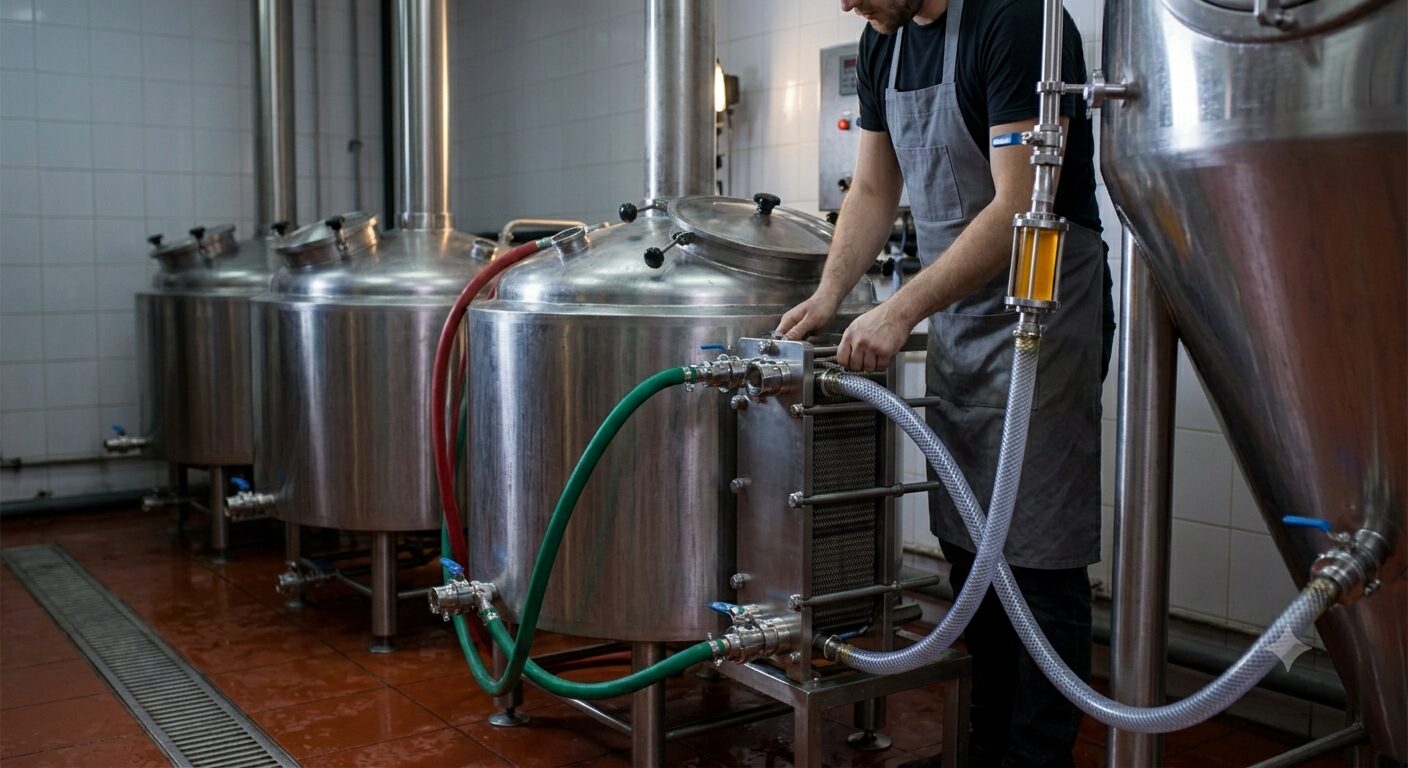

A classic 3 vessel brewing system splits the process into a mash mixer, a lauter tun, and a boil kettle.
This three-tank setup lets your team start a second batch while the first is still boiling.
By running these steps at once, you can finish three to four full batches in one day.
Small taprooms often combine functions into two-tank systems to save space, but that limits you to one batch at a time.
For a brewery running several shifts, a multi-vessel design is the best way to maximize output.
Knowing these layouts helps you pick the right system for your space.
A good brewing system starts with reliable brewing equipment that supports each step of production.
For small and medium breweries, a vessel brewhouse can be a cost effective choice because it combines key brewing functions in a compact setup.
Important parts like the mash tun help control the mash, improve consistency, and make the whole brewhouse easier to manage.
Choosing the Function of the Third Vessel
In a 3-vessel system, the third vessel can serve different jobs.
Some setups use it as a dedicated lauter tun, so mashing and lautering happen in separate tanks.
Others use it as a hot liquor tank or a whirlpool, depending on what the brewery needs most.
The right choice depends on which step is your bottleneck and how you want to run your day.
Deciding the third vessel’s function early shapes the whole layout and workflow.
Vessel Headspace and Maximum Grain Capacity
Vessel size is about more than the batch volume.
Each vessel needs extra headspace above the liquid for foam, boiling, and mixing.
The mash tun also has a maximum grain capacity, which limits how strong a beer you can brew.
If you plan big or high-gravity beers, make sure the mash tun can hold enough grain.
Checking headspace and grain capacity before you buy avoids overflows and undersized batches.
Section 7: Sizing the Equipment for Taprooms and Small Microbreweries
Finding the right size keeps you from outgrowing your gear too fast or taking on too much debt.
For a neighborhood taproom focused on pints, an efficient 3 bbl brewing system is a great balance.
This size keeps twenty draft lines fresh and varied without needing a big warehouse.
It fits in a standard retail unit, avoiding costly renovations or very high ceilings.
For a slightly bigger taproom that also kegs for local bars, a 5 bbl brewhouse adds flexibility.
That larger size fills a ten-barrel fermentation tank in just two back-to-back brews.
Choosing the right scale early keeps startup costs low while leaving room to grow.
Section 8: Mid-Scale Production Logistics and Distribution Targets
As a brand grows regional, its hot side must scale up for supermarkets and liquor stores.
A 7 bbl brewhouse lets your team fill a twenty-one-barrel tank in a single day.
This size is popular with regional taprooms feeding a growing wholesale draft network.
If you need faster growth, a 10 bbl brewhouse can keep a canning line running efficiently.
At ten barrels, your team makes over three hundred gallons per hot-side shift.
That jump in daily output lowers your energy and labor cost per gallon and lifts your margins.
For safe wash temperatures and staff safety, the Master Brewers Association of the Americas (MBAA) has full cellar safety guides.
Section 9: Energy Thermodynamics and Utilities Infrastructure
The heat source for your mash and boil sets your utility bills for the life of the plant.
An electric brewhouse heats the liquid with immersion elements placed right in the tank.
Electric systems are very efficient because almost all the heat goes straight into the liquid.
They also skip the chimneys, gas lines, and fire hoods that gas systems need.
That makes electric a favorite in cities where codes limit gas and venting.
For large plants with plenty of power, steam heating is still the standard for fast boils and precise control.
Balancing your local utility rates against install costs keeps your production costs low.
Recovering Heat from Wort Cooling
Cooling the wort throws off a lot of heat you can reuse.
A heat exchanger captures the heat pulled out of the hot wort and stores it as hot water.
That recovered hot water can feed the next mash or the cleaning system, cutting your energy bill.
Heat recovery is one of the biggest ways a brewhouse can save on utilities.
Adding a hot-liquor tank to store this heat makes the whole plant more efficient.
Managing Kettle Steam and Condensation
The boil kettle releases a lot of steam that must be managed.
Without control, kettle steam fills the room with moisture, which causes mold and rust.
A steam stack or a vapor condenser captures the steam and vents or condenses it safely.
A condenser can also recover some of that heat instead of wasting it.
Managing kettle steam protects your building and keeps the brewhouse dry and clean.
Section 10: Advanced Regional Scale Processing Systems
When a brand reaches grocery chains across states, it needs industrial systems.
A 15 bbl brewhouse lets your crew fill thirty-barrel tanks in a two-brew rotation.
This scale needs heavy utilities: steam boilers, big water lines, and large electrical service.
For serious market growth, a full 20 bbl brewhouse gives real manufacturing power.
At this level, manual grain handling is impossible, so you need silos, augers, and spent-grain pumps.
For continuous packaging across shifts, a 30 bbl brewhouse is the top solution.
This industrial scale makes tens of thousands of barrels a year, driving ingredient costs to the minimum.
To study automated production and cleaning, see the archives of the Institute of Brewing & Distilling (IBD).
Section 11: Production Facility Infrastructure Matrix
Choosing your hot-side gear means balancing upfront cost against daily output.
The table below shows the footprints and output of different equipment tiers:
| Equipment System Scale | Primary Heating Options | Average Daily Throughput | Target Business Model |
| 1 BBL Pilot / Nano Configuration | Direct Electric Elements | 31 Gallons / Batch | Recipe Testing & Research Labs |
| 3 BBL to 5 BBL Craft Packages | Electric or Direct Fire Gas | 93 to 155 Gallons / Batch | Neighborhood Taprooms & Brewpubs |
| 7 BBL to 10 BBL Expanded Platforms | Direct Fire Gas or Low-Pressure Steam | 217 to 310 Gallons / Batch | High-Volume Taprooms & Local Wholesale |
| 15 BBL to 30 BBL Industrial Skids | High-Pressure Industrial Steam Boiler | 465 to 930 Gallons / Batch | Regional Distribution & Automated Canning Lines |
Section 12: Metallurgical Integrity and Clean-In-Place Loop Mechanics
The alloy and surface finish of your tanks affect your beer’s shelf life.
Commercial hot-side vessels should be built from quality stainless steel, usually 304 or acid-resistant 316L.
These alloys hold chromium and nickel, which form a passive layer that protects the metal.
That layer guards the tanks against cleaning acids, high-chloride water, and the acidity of boiling hops.
To keep bacteria out, the inside steel must be polished very smooth.
Rough spots, weld lines, or scratches can hide residue and shelter wild yeast from cleaning.
For safe layout and piping standards, see the frameworks from the Deutscher Brauer-Bund.
Verifying CIP Spray Coverage
Clean-in-place only works if the spray reaches every surface.
Each vessel uses a spray ball or rotating spray head to wash the inside during a CIP cycle.
If the spray misses a spot, soil and bacteria can survive there.
A riboflavin dye test under UV light shows any areas the spray failed to reach.
Verifying spray coverage makes sure your automated cleaning actually cleans the whole tank.
Section 13: Facility Safety and Environmental Wastewater Frameworks
Running an industrial hot side means handling heat and chemicals under strict local laws.
The high-pH caustic and low-pH acid used to clean the kettles cannot go straight into the city sewer.
To follow water safety laws, modern plants install a wastewater neutralization system.
It collects the spent cleaning solutions in a tank and uses probes to balance the pH before discharge.
Your floor crew must also wear full protective gear: chemical suits, heavy gloves, and face shields.
By putting safety and compliance first, you protect your staff and avoid legal delays or fines.
Section 14: Final Summary and Operational Growth Blueprint
Choosing your setup takes a clear view of your sales goals, floor space, and budget.
If you run a taproom where beer sells fast on-site, a compact electric system is an affordable path.
If you plan to expand wholesale across several states, a fully automated steam skid is essential.
Check your building’s floor weight limits, balance your chemical strengths, and enforce strict cleaning loops.
By matching the gear to your volume and treating your brewhouse as a key partner, your team can deliver excellent beer to the market.
