Read Time: ⏱️ 10 minutes | By: Luca
Section 1: Sizing a 7 BBL System as Your Brewery Grows
Running a commercial brewery means paying close attention to two sides of the process.
The hot side heats and prepares the wort, and the cold side ferments and stores the beer.
As a brewery grows, lifting heavy malt sacks and stirring open tanks by hand becomes slow and risky.
It also turns into an expensive bottleneck that holds back production.

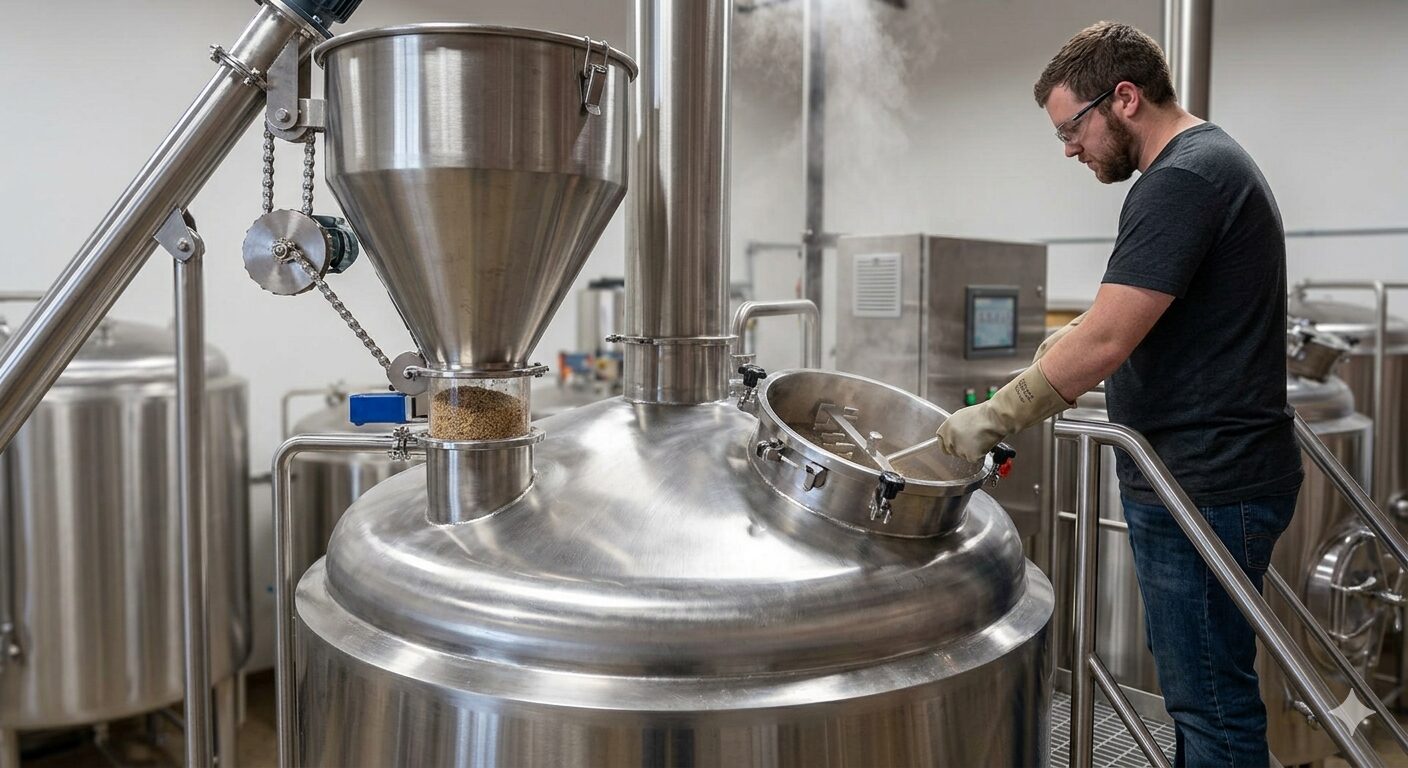

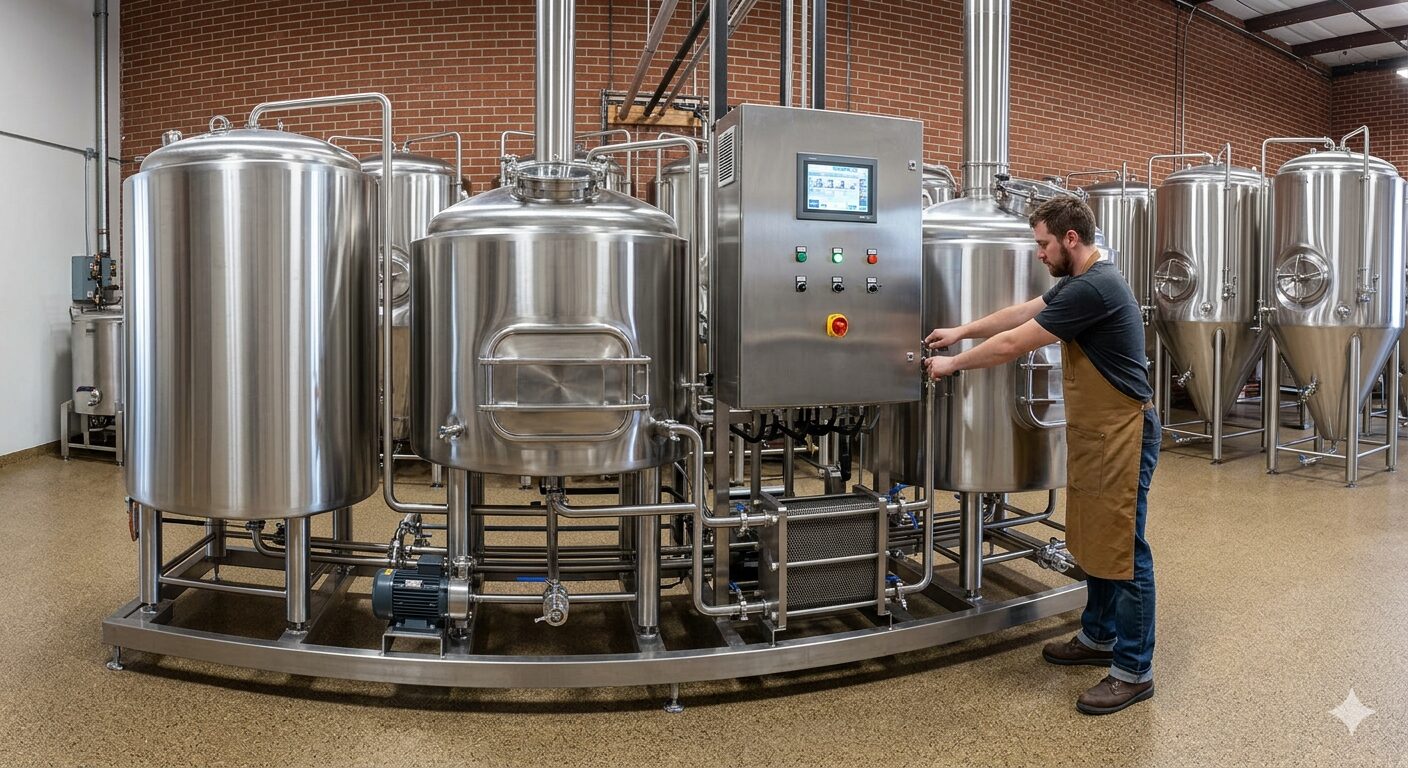

A well-built 7 bbl brewhouse is a popular size for a startup that plans to grow from a taproom into local wholesale.
Every batch that ferments in the cellar depends on a steady, reliable hot side to make good wort in the first place.
If the grains are not turned into sugar correctly during heating, the fermentation that follows will fail.
Poor wort leads to off-flavors, short shelf life, and unpredictable results that can damage a young brand.
Using proper hot-side equipment removes many of the manual mistakes that come with small-scale brewing methods.
Whether you run a small taproom or a large packaging floor, your hot-side machinery decides your profit margins.
This guide explains the process, the layouts, and the engineering choices that go into building a strong hot-side system.
Section 2: How the Extraction Process Moves Fluid Through the System
To keep your beer consistent across thousands of barrels a year, you need a steady, well-planned heating process.
The basic idea is simple: hot water pulls starches from crushed grain and turns them into sugars the yeast can eat.
Pumps push hot water through a device that wets the crushed malt evenly before it enters the main tank.
Before the liquid moves on toward the fermentation cellar, the hot side has to hit several exact temperatures in the right order.
The liquid flows into the tanks through automatic valves, where slow-moving blades gently stir the grain.
These blades keep the whole mash moving at a steady speed without tearing the grain husks apart.
The used grain is then separated in a filter tank, where a false floor holds the grain bed while the sweet liquid drains away.
To study vessel design, filtration speeds, and clean fluid handling in detail, engineers follow the standards shared by the European Hygienic Engineering & Design Group (EHEDG).
A mash tun must be designed to manage heat, water, and cleaning in a practical way.
During brewing, hot liquor is mixed with the grain to create the mash, while heating elements help maintain the right temperature.
After production, a CIP spray ball can be used to clean the inside of the mash tun more easily, reducing manual work and keeping the equipment ready for the next batch.
HERMS Coil for Gentle Mash Control
A HERMS coil inside the hot liquor tank can provide indirect mash temperature control.
Wort is recirculated from the mash tun through the stainless steel coil, where it absorbs heat from the surrounding hot water before returning to the grain bed.
Because the wort does not touch the heating elements directly, the system provides gentle temperature correction and reduces the risk of scorching.
Keeping the mash at a stable temperature can be difficult when heat is applied directly to the vessel.
A HERMS coil warms the recirculating wort more gently by passing it through the hot liquor tank. This gives the brewer greater control during mash rests without exposing the wort to an intense heating surface.
Adding a Wort Grant
A wort grant can be installed between the lauter tun and the transfer pump.
Wort flows from the grain bed into this small open or vented vessel before the pump sends it toward the kettle.
This prevents the pump from pulling directly against the false bottom, reducing the risk of compacting the grain bed and causing a slow or stuck runoff.
A strong pump can pull wort faster than the grain bed can release it.
The wort grant acts as a small buffer between the lauter tun and the pump. It helps maintain a gentler runoff, protects the grain bed, and gives the brewer a clearer view of the wort during lautering.
Section 3: Digital Automation and Control
Moving away from manual floor work means installing a modern, automated turnkey brewhouse control network across your production floor.
A fully integrated brewhouse software system ties every valve, pump, and sensor together.
The system uses air-powered valves, steam loops, digital flow meters, and variable-speed pumps.
A central controller, called a PLC, watches temperature, pressure, and liquid density in real time during heating.
If the temperature drifts anywhere in the heating loop, the software instantly adjusts the steam valves to correct it.
Automatic control removes human error from daily hot-side work and prevents boil-overs or ruined batches.
By letting the software manage the exact heating rates, you keep every recipe the same week after week.
This precise control means every batch leaving the whirlpool matches your target gravity, which protects your brand.
To study wild yeast, draft-line hygiene, and cell counts, production managers read the journals shared by the American Society of Brewing Chemists (ASBC).
Low-Level Protection for Electric Elements
Electric heating elements should include low-level protection to prevent them from operating when they are not fully covered by liquid.
A float switch or level sensor can interrupt the heating circuit when the water level falls below the safe limit.
This simple safety interlock prevents dry firing, overheating, element damage, and potential electrical or fire hazards inside the brewhouse.
An electric element can fail very quickly when it heats without enough water around it.
A level switch provides an automatic layer of protection, especially during filling, draining, or cleaning. It is a small component that can prevent an expensive shutdown and a dangerous situation.
Section 4: Sizing a Pilot System and Understanding the Costs
Deciding how big your hot-side equipment should be starts with real financial numbers and your expected weekly output.
For a startup nano brewery or a recipe lab, a small 1 bbl brewing system gives you a low-risk way to test ideas.
These small setups let your team try new ingredients without wasting thousands of dollars in raw materials.
But if your business depends on selling large volumes to wholesale accounts, a pilot system will quickly become a bottleneck.
Choosing a mid-size setup instead lets a growing brand make more beer without adding more daily labor.
By shortening the turnaround time, your team can brew several batches within a single eight-hour shift.
This better use of equipment lets a growing company scale up without doubling its floor space.
To check system balance and water-use figures, engineers study the technical archives from the Brewers Association.
Section 5: Buying Equipment and Staying Safe While Sourcing
Choosing how to buy your main equipment means balancing your startup budget against long-term maintenance costs.
Browsing listings of brewhouse equipment for sale helps buyers find reliable machines at lower upfront prices.
Buying used gear from closed breweries can save thousands, freeing up money for packaging machinery.
But used parts need careful checks, because hidden cracks in steam jackets or pitted welds can cause serious failures.
New custom systems come with warranties, direct support, and modern wiring that meets local codes.
A good compromise is often buying new tanks for the core process while sourcing used storage tanks.
Whatever path you choose, checking the metal quality of every surface that touches liquid prevents costly contamination later.
Factory Testing and Inspection Records
Before shipment, the manufacturer should complete pressure and leak tests on the vessels, jackets, piping, and welded connections.
The buyer should request the testing pressure, duration, acceptance criteria, serial numbers, and inspection records for every major tank.
Factory acceptance testing can identify leaking jackets, faulty sensors, damaged valves, or incomplete wiring before the equipment is packed and transported.
Finding a leaking steam jacket after the brewhouse has been installed is far more complicated than discovering it at the factory.
Written testing records give the brewery proof that each vessel was inspected before shipment and provide useful reference information if a problem appears during commissioning.
Lead Times and Project Scheduling
Equipment manufacturing time must be included in the brewery’s opening schedule.
A turnkey brewhouse may require several months for engineering, fabrication, testing, shipping, customs clearance, installation, and commissioning.
Building work, utility upgrades, permits, and drainage installation should be coordinated with the production schedule so the site is ready when the equipment arrives.
Ordering the brewhouse does not mean it will be ready to brew a few weeks later.
The brewery should work backward from its planned opening date and include time for design approval, manufacturing, transport, installation, staff training, and test batches. Delays in one stage can affect the entire launch.
Section 6: Comparing Multi-Vessel Layouts
The best layout for your hot side depends on your daily goals, your space, and your budget.
A classic 3 vessel brewing system splits the process into a mash mixer, a lauter tun for filtering, and a boiling kettle.
This three-tank setup lets your team start a second batch while the first is still boiling in the kettle.
By running these steps at the same time, a brewery can finish three or four full batches in a single day.
Smaller taprooms often combine steps into two-tank systems to save space, but that limits them to one batch at a time.
For breweries running several shifts, a multi-vessel design is the best way to get the most out of a year.
Understanding these layouts helps owners pick the exact system that fits their building.
Section 7: Sizing the Equipment for Taprooms and Small Breweries
Finding the right capacity keeps you from outgrowing your equipment too fast or taking on too much debt.
For a neighborhood taproom focused on local pint sales, a 3 bbl brewing system gives the perfect balance.
This size keeps twenty draft lines fresh and varied without needing a huge warehouse.
It also fits inside a standard retail unit, so you avoid expensive building work or very high ceilings.
For a slightly larger taproom that also sells kegs to local bars, a 5 bbl brewhouse adds extra flexibility.
This larger size lets your crew fill a ten-barrel fermentation tank with just two back-to-back brews.
Choosing the right size early keeps startup costs low while leaving room to grow into wholesale.
Floor Space and Layout Zones
A complete 7 bbl brewery may require approximately 1,000 to 1,500 square feet when brewing, fermentation, utilities, storage, and packaging are included.
The floor plan should separate raw material storage, milling, hot-side production, cellar tanks, cleaning chemicals, utilities, and packaging activities.
Clear movement paths should also be maintained around the vessels so operators can handle hoses, remove spent grain, perform maintenance, and move packaged products safely.
The tanks themselves are only one part of the space calculation.
Brewers also need room to move grain, wash equipment, operate pumps, access valves, and transfer finished beer without crossing busy or unsafe work areas. A good layout saves time every day and leaves space for future tanks.
Half-Batch Flexibility
Some 7 bbl systems can produce partial batches when the brewery needs a smaller volume.
A half-batch option can be useful for seasonal beers, expensive ingredients, test recipes, private events, or products with limited demand.
However, the manufacturer must confirm that the heating surfaces, temperature probes, agitators, pumps, and fermenter cooling jackets will still operate correctly at the lower liquid level.
A brewery does not always need seven full barrels of every recipe.
The ability to produce a smaller batch gives the brewer more freedom to test unusual products without filling the cellar with beer that may sell slowly. The equipment must still be designed to heat, mix, and cool the reduced volume correctly.
Section 8: Mid-Scale Production and Distribution
As a local brand grows into a regional name, its hot side has to scale up to supply supermarkets and liquor stores.
Moving up to a 7 bbl brewhouse lets your cellar team fill a twenty-one-barrel tank in a single day.
This size is popular with regional taprooms that need to supply a growing network of wholesale draft accounts.
If you need to grow even faster, stepping up to a 10 bbl brewhouse lets you run high-speed canning lines efficiently.
At this size, your team can make over three hundred gallons of finished beer in every hot-side shift.
This jump in daily output lowers your energy and labor cost per gallon, which raises your profit margins.
To set safe cleaning temperatures and protect your staff, the Master Brewers Association of the Americas (MBAA) offers complete safety guides for cellar work.
Ceiling Clearance and Service Height
Ceiling clearance must be checked before selecting a 7 bbl brewhouse, especially when vessel lids, grain baskets, agitators, or internal components must be lifted vertically.
The brewery should measure the equipment at its maximum operating and maintenance height, not only the normal installed height.
Doors, beams, ventilation ducts, lighting, sprinkler pipes, and overhead utility lines can all interfere with installation or future servicing.
A vessel may fit comfortably inside the room but still be impossible to open or service.
Checking the ceiling only after delivery can create expensive problems. The brewery needs enough overhead space to remove components, clean the equipment, and carry out maintenance without dismantling the surrounding installation.
Section 9: Energy, Heating, and Utilities
The heat source you choose for boiling and mashing will set your utility bills for the life of your brewery.
A modern electric brewhouse heats the liquid with high-power elements placed right inside the tank.
Electric systems are very efficient because almost all of the heat goes straight into the liquid.
They also skip the need for chimneys, gas lines, or fire-suppression hoods inside the building.
That makes electric a favorite in cities, where local codes often limit gas emissions and venting.
For large operations with heavy power limits, steam heating is still the standard for fast boils and precise control.
Balancing your local utility rates against the upfront install cost keeps your production costs as low as possible.
Sizing the Steam Generator
A steam-heated 7 bbl brewhouse must be paired with a correctly sized steam generator.
The boiler must provide enough steam to heat the mash, bring the kettle to a strong boil, and support consecutive batches without long waiting periods.
A generator in the 6 to 9 HP range is commonly recommended for this system size, although the final requirement depends on the number of steam jackets, local pressure limits, piping length, and desired heating speed.
A powerful brewhouse can still feel painfully slow when the steam generator is too small.
Before ordering the equipment, the brewery should confirm that the boiler can support a full brew day, not just heat one vessel under ideal conditions. The right steam capacity keeps production moving without unnecessary pauses between process steps.
Section 10: Large Regional Production Systems
When a brand expands into grocery chains across several states, it needs industrial-grade equipment.
A high-output 15 bbl brewhouse can fill thirty-barrel cellar tanks in just two brews.
This size needs heavy-duty utilities, including dedicated steam boilers, large water lines, and a big electrical supply.
For operations aiming at a large market, a full 20 bbl brewhouse provides serious production power.
At this level, handling grain by hand is impossible, so you need grain silos, auger lines, and spent-grain pumps.
If your long-term goal is running canning lines across multiple shifts, a 30 bbl brewhouse is the ultimate answer.
At this scale, a brand can make tens of thousands of barrels a year, which drives ingredient costs down to the minimum.
To study automated production, cleaning loops, and fluid dynamics, teams review the archives from the Institute of Brewing & Distilling (IBD).
Adding Beer Filtration
Beer filtration can be added when the brewery needs improved clarity, longer shelf stability, or a more consistent appearance before packaging.
Plate-and-frame filters and candle filters using diatomaceous earth are two traditional options for removing suspended yeast and fine particles.
Filtration should be selected according to the beer style, required clarity, production volume, oxygen exposure risk, cleaning needs, and disposal requirements for the used filter material.
Not every craft beer needs to be filtered.
Beer served quickly in the taproom may only need normal conditioning, while products sent to shops or distant distributors may require greater clarity and stability. The brewery should add filtration only when it supports the product and the sales model.
Section 11: Production Facility Comparison Table
Choosing your hot-side equipment means balancing your upfront investment against your daily output goals.
The table below shows the footprint and output of different equipment tiers:
| Equipment System Scale | Primary Heating Options | Average Daily Throughput | Target Business Model |
| 1 BBL Pilot / Nano Configuration | Direct Electric Elements | 31 Gallons / Batch | Recipe Testing & Research Labs |
| 3 BBL to 5 BBL Craft Packages | Electric or Direct Fire Gas | 93 to 155 Gallons / Batch | Neighborhood Taprooms & Brewpubs |
| 7 BBL to 10 BBL Expanded Platforms | Direct Fire Gas or Low-Pressure Steam | 217 to 310 Gallons / Batch | High-Volume Taprooms & Local Wholesale |
| 15 BBL to 30 BBL Industrial Skids | High-Pressure Industrial Steam Boiler | 465 to 930 Gallons / Batch | Regional Distribution & Automated Canning Lines |
Section 12: Metal Quality and Clean-In-Place Cleaning
The way your ingredients react with the metal walls of your tanks directly affects how long your beer stays fresh.
Hot-side tanks should be built from high-grade stainless steel, usually AISI 304 or the more acid-resistant AISI 316L.
These alloys contain plenty of chromium and nickel, which form a thin protective layer over the metal.
That layer shields the tanks from cleaning acids, hard water, and the natural acidity of boiling hops.
To stop bacteria from taking hold, the inside steel must be polished smooth, to a roughness of 0.8 micrometers or less.
Any rough spots, weld lines, or tiny scratches can trap residue and hide wild yeast from normal cleaning.
To make sure your layout allows safe access and proper piping, follow the frameworks from the Deutscher Brauer-Bund.
Section 13: Safety and Wastewater Rules
Running an industrial hot-side system means handling strong heat and chemicals under strict local laws.
The high-pH caustic and low-pH acid used to clean your tanks cannot go straight into the city sewer.
To follow local water-safety rules, modern facilities install a dedicated wastewater neutralization system.
This setup collects your spent cleaning solutions in a tank and uses probes to balance the pH before it drains.
Your floor crew also needs full protective gear, including chemical-resistant suits, heavy gloves, and face shields.
By making safety and the environment a priority, you protect your staff and avoid legal delays or fines.
Section 14: Summary and Growth Plan
Choosing your core setup starts with a clear view of your sales goals, your space, and your budget.
If you run a taproom where beer sells quickly on-site, a compact electric setup is an affordable path.
But if your goal is wholesale distribution across several states, a fully automated steam system is essential.
Be sure to check your building’s floor-weight limits, balance your cleaning chemicals, and enforce strict testing routines.
By matching your equipment to your volume goals and treating your packaging line as a key partner, your team can keep delivering great beer.
Contact Us
