Read Time: ⏱️ 10 minutes | By: Luca
Why Choose a Turnkey Brewhouse
Running a commercial brewery means controlling both the hot side and the cold side of your process.
As you grow, lifting malt sacks and stirring open vessels by hand becomes slow and risky.
A professional turnkey brewhouse is the fastest way to reach steady, industrial-grade output, and a full brewhouse platform ties every part together.
Every batch you ferment in the cellar depends on a clean, steady hot-side process.
If the sugars and proteins are not converted well during the mash, your fermentation will suffer.
That leads to off-flavors, poor shelf life, and uneven attenuation.
A good hot-side system removes most of the manual errors of small-scale brewing.
Whether you run a small taproom or a busy packaging floor, your brewhouse shapes your margins.
This guide covers the fluid flow, the layouts, and the designs that make a strong hot-side system.
Turnkey breweries are complete brewing solutions designed to help producers start production with all the main equipment already planned and integrated.
A system can include a mash tun for mixing grain and hot water, electric heating for better temperature control, and a glycol chiller to manage cooling during fermentation.
This type of setup makes the brewing process easier to organize, especially for small breweries that want a practical and reliable system from the beginning.
One Contract for Boiler, Chiller, and Integration
A complete turnkey brewery contract should clearly define who is responsible for the boiler, glycol chiller, utility connections, automation, and final system integration.
When separate contractors supply these systems, unclear boundaries can cause delays or leave important connections outside every supplier’s scope.
Using one project coordinator gives the brewery a single contact for design changes, installation questions, commissioning problems, and warranty claims.
A brewhouse, boiler, and chiller may work perfectly on their own but still fail to operate correctly when they are connected.
A true turnkey supplier should coordinate these systems as one complete production line. This prevents the brewery from being pushed between several contractors when a problem appears during startup.
Start With a Feasibility Study
A turnkey brewery project should begin with a formal feasibility study before the equipment configuration is approved.
The study should compare expected beer styles, annual production, available space, utility limits, staffing, packaging demand, and future expansion plans.
Financial reviews should also be completed during the project so changes in equipment scope, construction, or installation do not create uncontrolled cost increases.
Choosing the tanks before checking whether the entire project is financially and technically realistic can create expensive mistakes.
A feasibility study connects the brewery’s sales plan with the building, utilities, production schedule, and available budget before manufacturing begins.
How the Brewhouse Makes Wort
The mash pulls starches from the crushed grain and turns them into fermentable sugars using hot water.
High-pressure pumps push water through a grist hydrator, wetting the crushed malt evenly before it enters the tank.
The hot-side gear must hit several exact temperature steps before the liquid moves toward the cellar.
The liquid enters the vessels through automated valves, where mixing blades slowly turn the grain mash.
These blades keep the whole volume moving at a steady speed without shredding the grain husks.
The spent grains are then held on a false bottom while the sweet liquid drains away.
For the engineering behind vessel design and sanitary flow, see the European Hygienic Engineering & Design Group.
Automated Control and Sensors
Moving away from manual work means adding a modern turnkey brewhouse software control network to your floor.
The system uses pneumatic valves, steam jacket loops, digital flow meters, and variable-speed pumps.
The control panel watches temperature, pressure, and density in real time during the mash and boil.
If the temperature drifts anywhere in the heating loop, the system adjusts the steam valves to correct it.
Automated control removes much of the human error from daily hot-side work.
By trusting the software to hold your heating rates, your recipes stay the same week after week.
For research on brewing quality, see the American Society of Brewing Chemists.
A Supervised First Brew
Commissioning should continue beyond basic water testing and include a supervised first production batch.
During this initial brew, the supplier and brewing team can verify heating rates, pump speeds, transfer times, temperature accuracy, lautering performance, evaporation rate, cooling speed, and cleaning coverage.
Any control settings or process problems discovered during the test batch should be recorded and corrected before normal commercial production begins.
A system can pass a water test and still behave differently when it contains grain, hops, foam, and dense wort.
A supervised first brew gives the team a chance to learn the equipment under real conditions while the supplier is still available to adjust settings and solve unexpected problems.
Pilot Systems for Small Test Batches
Sizing your hot-side gear starts with your budget and your expected weekly output.
For a nano brewery or a recipe lab, a compact 1 bbl brewing system is a low-risk way to test.
These small pilot setups let your team try new ingredients without wasting a lot of grain.
But if your plan depends on high-volume wholesale, a pilot setup will soon create bottlenecks.
A mid-size system lets a growing brand make more beer without adding much daily labor.
By cutting turnaround times, your team can run several batches in one eight-hour shift.
For system-balance and water-use guides, see the Brewers Association.
Buying New vs. Used Equipment
Choosing how to buy your main vessels means balancing upfront cost against long-term upkeep.
Browsing listings of brewhouse equipment for sale can help you find solid machinery at a lower price.
Buying used from a closed brewery can save thousands, freeing up money for packaging gear.
But used gear needs care, because hidden cracks in steam jackets or pitted welds can cause failures.
New custom systems come with warranties, support, and wiring that meets local code.
A common compromise is to buy the core vessels new and source used tanks for extra storage.
Either way, check the metal of every liquid-contact surface to avoid contamination later.
Compare Warranty Terms Carefully
Warranty conditions should be compared as carefully as the equipment specifications.
The buyer should confirm when the warranty begins, which parts are covered, who pays for travel and shipping, and how quickly technical support must respond.
Separate terms may apply to tanks, pumps, motors, control components, heating elements, compressors, and third-party packaging equipment.
Training, remote troubleshooting, and spare-parts availability should also be written into the final agreement.
A long warranty sounds reassuring, but the number of years does not tell the whole story.
The brewery needs to know what happens when a component fails, how quickly help will arrive, and whether the supplier or buyer must pay to ship the replacement part. Clear terms are far more useful than a vague promise of support.
List Every Third-Party Component
A turnkey quotation should identify all third-party components and their original manufacturers.
The component list should include pumps, motors, sensors, valves, electrical hardware, refrigeration equipment, packaging machinery, and replacement-part numbers.
The contract must also explain whether warranty and technical support remain with the turnkey supplier or must be requested directly from each original manufacturer.
Even a single-source brewery normally contains components produced by several specialist companies.
That is not a problem when the brands, model numbers, spare parts, and support responsibilities are documented clearly. It becomes a problem only when the brewery discovers after a failure that no supplier accepts responsibility for the component.
Multi-Vessel Layouts
The best layout depends on your daily goals, your space, and your budget.
A classic 3 vessel brewing system splits the hot side into a mash mixer, a lauter tun, and a kettle.
This lets your team start a second batch while the first is still boiling.
By running these steps at the same time, your brewery can finish three or four batches in a day.
Smaller taprooms often use two-tank systems to save space, but that limits you to one batch a day.
For a brewery running several shifts, a multi-vessel design is the best way to raise output.
The Right Size for a Taproom
The right capacity keeps you from outgrowing your gear too fast or taking on too much debt.
For a taproom focused on local pints, a 3 bbl brewing system gives a good balance.
This size keeps about twenty draft lines fresh without needing a large warehouse.
A system this size fits inside a standard retail unit, so you avoid costly renovations.
For a taproom that also sells kegs to local bars, a 5 bbl brewhouse package adds more flexibility.
That larger size fills a ten-barrel fermenter in just two back-to-back brews.
Picking the right scale early keeps your startup costs low while leaving room to grow.
Scaling Up for Distribution
As a local brand grows regional, its hot-side capacity must grow to supply stores and chains.
Moving up to a 7 bbl brewhouse lets your cellar fill a twenty-one-barrel tank in one day.
This size is popular with taprooms feeding a growing wholesale draft network.
If you need faster growth, a 10 bbl brewhouse can run high-speed canning lines well.
At this scale, your team can make over three hundred gallons in a single shift.
This raises daily output and lowers your energy and labor cost per gallon.
For chemical-safety and cellar guides, see the Master Brewers Association of the Americas.

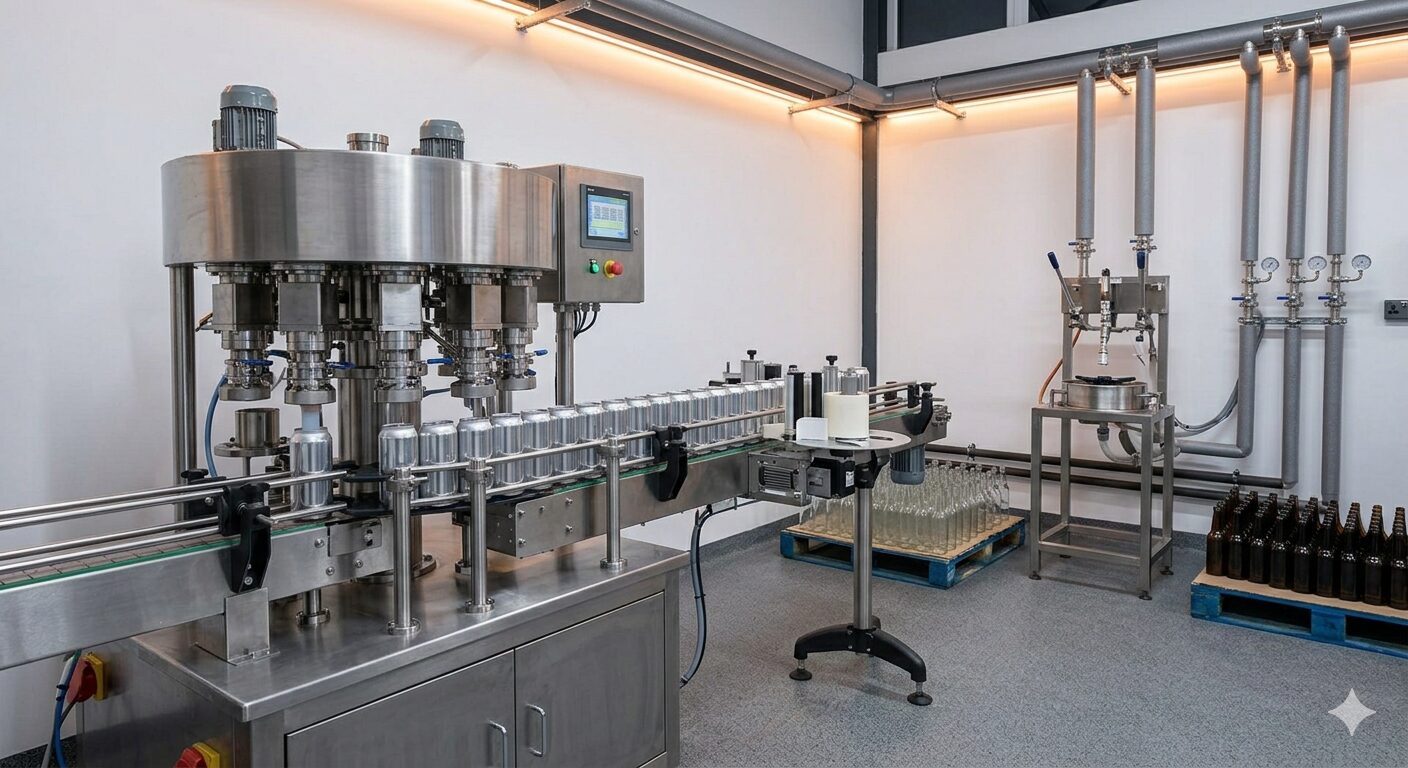

Match Brewhouse Output to Packaging
A turnkey brewery should match brewhouse output with the real capacity of its packaging equipment.
The canning, bottling, or kegging line must process finished beer fast enough to prevent brite tanks from becoming long-term storage vessels.
Packaging speed, changeover time, cleaning cycles, container formats, compressed-air demand, and available cold-storage space should all be included in the production calculation.
Producing beer faster does not help when the packaging line cannot empty the brite tank in time.
The hot side, cellar, and packaging area should be designed around the same production schedule. Otherwise, finished beer begins waiting for equipment instead of moving toward customers.
Electric vs. Steam Heating
Your heat source will shape your utility bills for the life of the brewery.
An electric brewhouse heats the liquid with high-power elements placed inside the tank.
Electric systems are efficient because almost all the heat goes straight into the liquid.
Electric setups also skip the chimneys, gas lines, and fire hoods that gas systems need.
That makes them a good fit for cities where codes limit gas and venting.
For large plants with enough power, steam heating is still the standard for fast boils and tight control.
Balance your local utility rates against the install cost to keep your energy spend low.
The Full Steam Package
A complete steam package may require more than the boiler itself.
Depending on the installation, the system can also include a feedwater tank, condensate return unit, blowdown separator, water treatment, steam traps, pressure controls, and insulated distribution piping.
These components protect the boiler, manage hot discharge safely, recover condensate, and maintain a stable steam supply during consecutive batches.
A supplier may describe a brewhouse as steam-ready even when several essential boiler accessories are not included.
The brewery should ask for a complete steam-system diagram and confirm exactly which components are part of the quotation. Otherwise, important costs may appear only during installation.
Sizing the Compressed-Air System
Compressed air is an important utility in a turnkey brewery with pneumatic valves, actuators, packaging machines, and automated controls.
The compressor must provide enough pressure and airflow during periods of maximum simultaneous demand.
The air system may also require a receiver tank, filters, moisture separator, dryer, pressure regulator, and oil-free design where air could come into direct or indirect contact with the product.
Compressed air is easy to overlook because it is not stored in a large visible tank.
However, low pressure can stop automated valves or packaging equipment even when every other part of the brewery is working correctly. The system should be sized for the busiest production period, not its average use.
Regional-Scale Systems
When a brand reaches grocery chains across several states, the plant needs industrial systems.
A 15 bbl brewhouse can fill thirty-barrel cellar tanks in a two-brew rotation.
This scale needs heavy utilities: dedicated steam boilers, large water lines, and a big electrical service.
For wide market reach, a 20 bbl brewhouse gives serious production power.
At this level, hand-handling grain is impossible, so you need grain silos, auger lines, and spent-grain pumps.
For continuous packaging across shifts, a 30 bbl brewhouse is the top choice.
This scale lets a brand make tens of thousands of barrels a year and cut ingredient costs to the minimum.
For advanced production and cleaning research, teams check the archives of the Institute of Brewing & Distilling.
System Tiers Compared
Choosing your hot-side gear means balancing upfront cost against daily output.
Here are the common tiers.
First, a 1 BBL pilot or nano setup:
┌──► Heating: direct electric elements
[1 BBL Pilot / Nano] ├──► Output: about 31 gallons a batch
└──► Best for: recipe testing and research labs
Next, a 3 to 5 BBL craft package:
┌──► Heating: electric or direct-fire gas
[3 BBL to 5 BBL Craft] ├──► Output: about 93 to 155 gallons a batch
└──► Best for: neighborhood taprooms and brewpubs
Then a 7 to 10 BBL expanded platform:
┌──► Heating: direct-fire gas or low-pressure steam
[7 BBL to 10 BBL Expanded] ├──► Output: about 217 to 310 gallons a batch
└──► Best for: high-volume taprooms and local wholesale
And a 15 to 30 BBL industrial skid:
┌──► Heating: a high-pressure industrial steam boiler
[15 BBL to 30 BBL Industrial] ├──► Output: about 465 to 930 gallons a batch
└──► Best for: regional distribution and automated canning lines
Tank Metal and Cleaning
The metal of your tanks affects both shelf life and daily cleaning.
Hot-side vessels should be made from stainless steel, usually AISI 304 or acid-resistant AISI 316L.
These alloys have high chromium and nickel, which form a self-healing passive layer on the surface.
This layer protects the tank from cleaning acids, high-chloride water, and the acidity of boiling hops.
To keep bacteria out, the inside steel must be polished very smooth.
Rough spots, weld lines, or scratches can shelter wild yeast from a standard cleaning cycle.
Layout and piping should also follow the frameworks managed by the Deutscher Brauer-Bund.
Safety and Wastewater
Running an industrial hot-side system means balancing heavy heat and chemicals with local laws.
The high-pH caustic and low-pH acid rinses used to clean your vessels cannot flow straight into the sewer.
So modern facilities install a wastewater neutralization system.
It collects the spent cleaning solutions in a tank and uses probes to balance the pH before discharge.
Your crew must also wear full protective gear, including chemical-resistant suits, gloves, and face shields.
By making safety and compliance a priority, you protect your staff and avoid legal delays.
Compliance Documents for Local Approval
The turnkey package should include all available technical documents required for local approval and inspection.
These may include equipment drawings, material certificates, pressure-test reports, electrical diagrams, component certifications, operating manuals, safety information, and declarations of conformity.
The brewery should verify before purchase whether the documents meet the specific requirements of the destination country, state, and local authority.
A brewery can receive every tank and still be unable to open if the inspector does not receive the correct documents.
Compliance requirements should be checked before manufacturing, not after the equipment reaches the site. This is especially important when the system is imported from another country.
Who Handles the Permits
A turnkey supplier can support the permit process, but responsibility for every approval should be defined clearly.
The project may require building, electrical, plumbing, fire, pressure-vessel, wastewater, food-production, zoning, and alcohol-related approvals.
A responsibility matrix should identify which documents are supplied by the equipment manufacturer and which applications must be completed by the owner, architect, engineer, or local contractor.
The word turnkey does not automatically mean the equipment company will obtain every permit for the brewery.
Before signing the contract, the owner should know exactly who prepares each drawing, submits each application, pays each fee, and responds to the inspector. This avoids discovering an unassigned responsibility near the planned opening date.
Conclusion
Choosing your setup takes a clear view of your sales goals, your space, and your capital.
If you run a taproom where beer sells fast on-site, a compact electric system is an affordable path.
But if you plan to grow wholesale across states, a fully automated industrial steam skid is essential.
Check your floor weight limits, balance your chemicals, and enforce strict validation on every loop.
By matching your equipment to your volume goals, your team can deliver good beer batch after batch.
Contact Us
