Hop Drying Rooms vs. Kilns: Which Setup Is Right for Your Farm?

Scaling up a commercial hop farm takes a real investment in post-harvest equipment.

One of the first big choices a grower faces is the workspace used to dry the freshly picked cones.

The two main options for small and mid-size operations are the traditional multi-tier hop drying room and the modern, enclosed commercial kiln.

Fresh hop cones come out of the field at about 75% to 80% water.

That has to drop to a stable 8% to 10% within a tight window.

If wet hops sit in bins for more than a couple of hours, they start to self-heat, brown, and rot.

So a good, well-ventilated drying zone is the cornerstone of quality for any hop farm or farm brewery.

This guide compares the layouts, heat profiles, costs, and efficiency of drying rooms versus automated kilns.

It helps you design a floor that keeps the aroma in and protects your yield.

For standards on agricultural storage and facility construction, see the United States Department of Agriculture.

The Biological Foundation: What Are We Processing?

To pick the right drying setup, you first need to understand the crop.

When you look at what are hops in a commercial setting, treat them as sensitive, oil-rich structures that are easily damaged by heat.

The value of the whole harvest sits in the tiny golden lupulin glands at the base of the cone’s petals.

These glands hold the alpha acids that give beer its bitterness, plus aroma oils like myrcene.

Because those oils boil at low temperatures, running the dryer too hot makes them evaporate and vanish into the exhaust.

So mastering how to dry hops without losing their value is a careful balance of heat against airflow.

Your setup has to drive moisture out of both the outer petals and the dense central stem, called the strig.

The petals dry fast, but the strig holds moisture stubbornly, so the core must dry without over-crisping the outer leaves.

For research on how plant resins behave under heat, see the American Chemical Society.

Dissecting the Layouts: Hop Drying Room vs. Kiln Infrastructure

The big difference between a drying room and a kiln is how much of the drying environment you control, and how the air moves.

A traditional hop drying room is usually a retrofitted barn or large outbuilding, with hops spread thinly on suspended mesh or burlap floors.

Ambient or slightly heated air is pushed up from a lower plenum by large fans, and the moist air leaves through the building’s vents.

While a hop drying room has a scalable footprint and a lower upfront cost, its performance depends heavily on the local weather and humidity.

A modern enclosed kiln or commercial hop dryer is a self-contained, insulated cabinet or conveyor built for industrial drying.

It seals the drying bed off from the weather completely, using automated burners, heat exchangers, and variable-speed fans to hold a precise, monitored climate.

Both setups need a smooth upstream flow: the bines are pulled from the wire and run through hop harvesting equipment to strip the cones from the leaves before loading.

The daily weight your harvest gear produces sets the minimum size your dryer needs.

For engineering formulas on airflow through hop beds, see the American Society of Agricultural and Biological Engineers.

Multi-Tier Hop Drying Room Design

A hop drying room can be built with several vertical drying levels.

This adds capacity without a much larger building.

Fresh hops are spread across several mesh floors, and fans push air through the beds to remove moisture.

A multi-tier design is useful for small and mid-size farms that need more drying area during harvest.

But each level must get enough airflow.

If one tier gets less air, that part of the batch dries too slowly and can develop moisture problems.

More floors only help if the air moves evenly through every one.

Oast Houses as Traditional Hop Drying Rooms

Traditional oast houses were early hop drying rooms.

They moved heated air through hops spread on drying floors, and the moist air escaped through vents or cowls at the top.

These buildings show that hop drying has always needed dedicated space, airflow, and heat control.

Modern rooms use fans, sensors, and better materials, but the basic principle is the same.

The old oast house was not just a farm building; it was part of the quality system for the crop.

The grower still faces the same challenge: remove moisture fast enough to prevent spoilage, but gently enough to protect the hops.

Ventilation in a Hop Drying Room

Ventilation is one of the most important parts of a hop drying room.

As hops release moisture, the room air gets humid.

If that humid air is not removed, drying slows down and mold risk rises.

A good room needs both air moving through the hop bed and exhaust venting to carry the moisture away.

Air has to do two jobs: pass through the hops, and then leave the room carrying moisture with it.

If the air only circulates inside the room, the hops can stay damp.

Good ventilation gives the moisture somewhere to go.

The Downstream Processing Loop: Pelletizing and Frozen Storage

Once the loose cones finish drying in a room or kiln, they are still too fragile and unevenly dried to package right away.

They go to an equilibration floor to cool, so the leftover moisture in the strig can move out into the papery petals.

Once the whole batch hits a uniform 8.5% to 9.5% moisture, the cones are ready for a heavy-duty hop pellet mill.

The mill forces the dried flowers through a steel die, pressing them into dense type-90 pellets.

These pellets are vacuum-sealed right away in nitrogen-flushed foil bags and moved into hop storage.

To stop the alpha acids from turning cheesy and oxidized, the cold rooms are held at sub-freezing temperatures, between 26°F and 32°F.

Most of your yield gets dried and pelletized, but some breweries keep a small part of the crop for traditional wet hop brewing.

That means skipping drying and tossing the fresh cones into the kettle within 24 hours of picking.

When you weigh fresh hops vs dry hops for a commercial brewery, the differences in shipping weight and shelf life are huge.

Fresh hops break down in days and cost far more to ship, while pellets or concentrated hop extract give year-round recipe security.

For extreme efficiency, many big plants skip solid hops and use carbon dioxide hop extract to hit exact bitterness with no wort loss.

The Master Brewers Association of the Americas publishes technical data on how different hop formats affect beer quality.

Cooling and Pressing After Drying

After hops leave the drying room or kiln, do not pack them right away.

The cones need time to cool and settle.

This lets the leftover moisture inside the strig move outward into the drier outer petals.

Only after this conditioning step should the hops be baled, pelletized, or packed.

Skipping the cooling step can leave wet pockets that cause mold in storage.

Drying does not finish the moment the heat stops.

Hops still need time to settle and balance inside.

This step feels slow during harvest, but packing hops too early creates problems that only show up later in storage.

Sizing and Siting Your Infrastructure

To pick the best setup for your barn, it helps to compare how different drying systems perform under heavy harvest load.

The table below contrasts three common drying setups across key engineering and logistics metrics.

Here is a traditional ambient hop drying room:

[Ambient Hop Drying Room]
   ├──► Structure: retrofitted barn or large room
   ├──► Airflow: fixed-speed wall fans
   ├──► Labor: high, needs manual turning
   ├──► Energy: moderate, with high heat loss through the walls
   └──► Ideal scale: 1 to 5 acres

Here is a modular forced-air kiln bed:

[Modular Forced-Air Kiln Bed]
   ├──► Structure: enclosed metal or wood plenum
   ├──► Airflow: VFD-driven centrifugal fans
   ├──► Labor: medium, with mechanical tray dumping
   ├──► Energy: high, insulated panel construction
   └──► Ideal scale: 5 to 30 acres

Here is a continuous belt commercial dryer:

[Continuous Belt Commercial Dryer]
   ├──► Structure: insulated double-wall cabinet
   ├──► Airflow: automated variable plenum
   ├──► Labor: near zero, fully automated belt
   ├──► Energy: maximum, with integrated heat recovery
   └──► Ideal scale: 30+ acres

As the table shows, an ambient room is cheaper upfront, but an automated cabinet or conveyor gives the precision and efficiency that growing operations need.

For details on energy upgrades and small-business grants, see the U.S. Department of Energy.

Drying Towers and Vertical Building Layouts

Some historic hop drying rooms used drying towers.

A vertical layout let warm air rise through the crop and carry moisture upward, making the building itself part of the drying system.

Modern farms may not use historic towers, but vertical space is still useful.

Multi-level drying floors, elevated fan rooms, and controlled exhaust paths can improve space use and airflow.

The shape of old drying buildings was not an accident; it followed the movement of air and the needs of harvest.

The room layout should support airflow, loading, unloading, and safe movement around the crop.

Restored Hop Drying Rooms and Modern Use

Many old hop drying rooms have been restored or converted to new uses.

This shows how important these buildings were in historic hop regions.

They were built as specialized agricultural spaces, not general storage rooms.

For a modern grower, the lesson is simple: a drying room should be designed for one purpose.

It must support airflow, hygiene, crop movement, safe access, and repeatable drying.

A drying room is not just a room with hops inside; it is a processing space where quality is won or lost.

When the room is planned well, the work gets easier.

When it is thrown together badly, every harvest day gets more stressful.

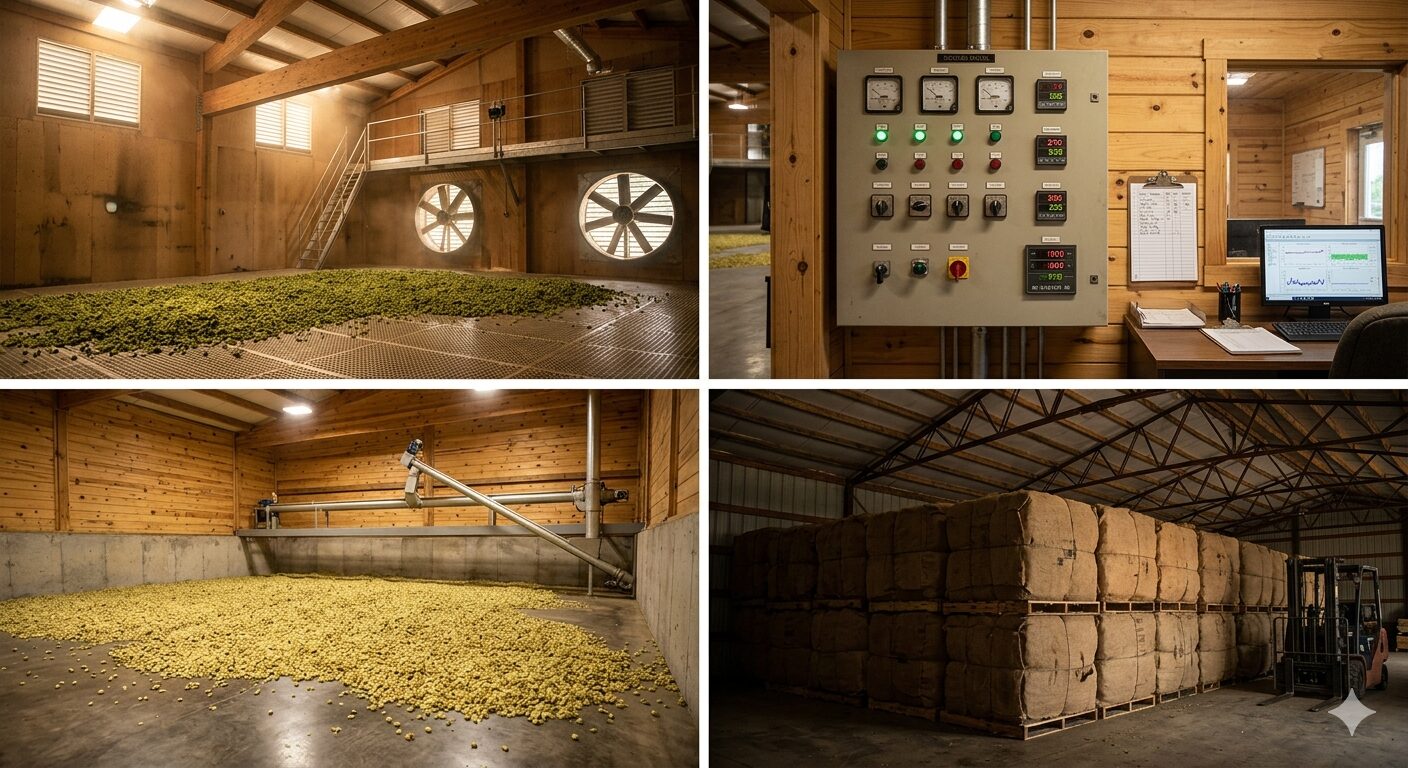

What a Hop Drying Room Should Show Visually

A well-designed hop drying room should look organized and easy to inspect.

Good visual signs include clean floors, accessible drying surfaces, clear airflow paths, enough walking space, and no deep piles of wet hops waiting in corners.

Photos of the room can also help managers spot layout problems.

If the room looks crowded, blocked, or hard to clean, the drying process is probably harder to control too.

Sometimes a quick look at the room tells you a lot.

If operators cannot move easily or check the hop bed, small problems go unnoticed.

A clean, visible layout helps people work better and makes quality checks less rushed during harvest.

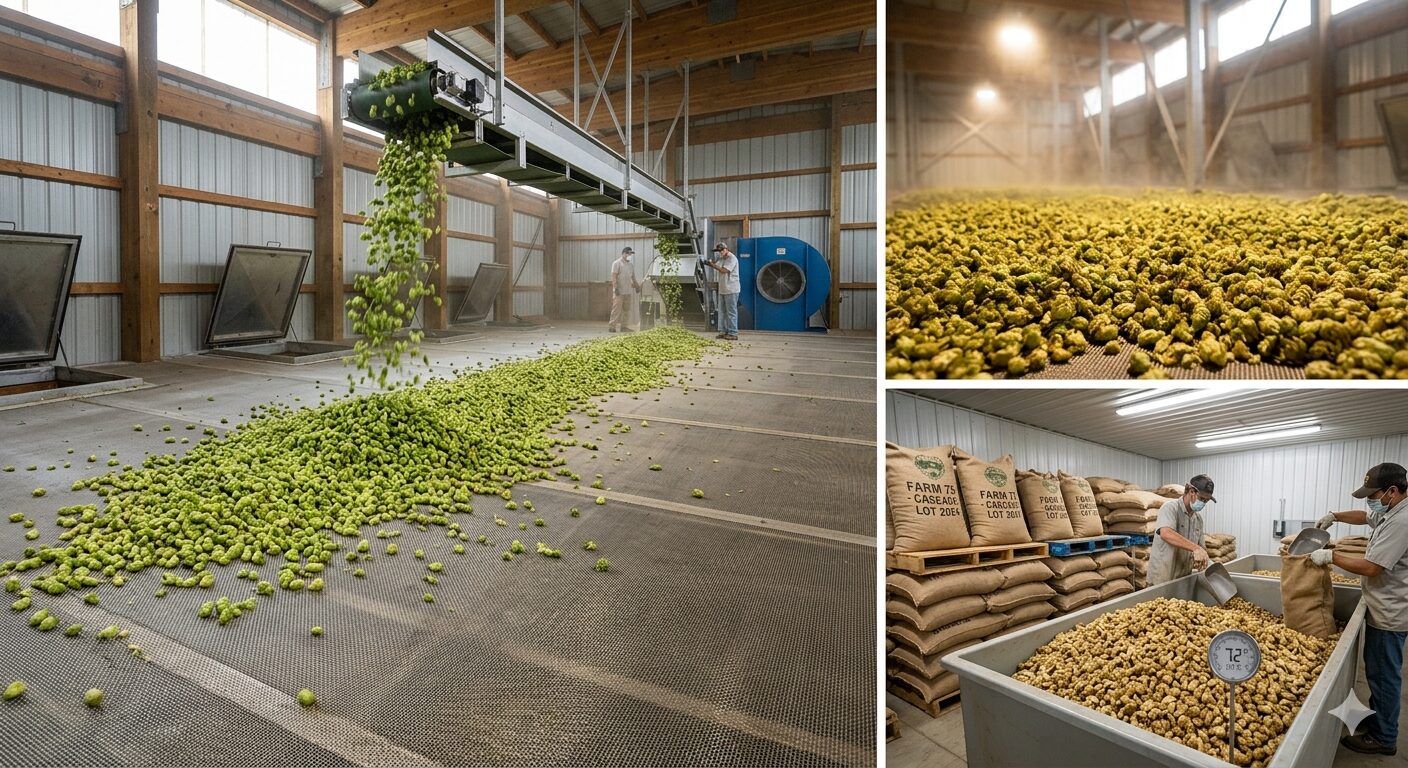

Using Real Drying Room Layouts as Planning References

Photos of real hop drying rooms can help growers understand their layout options.

They show how drying floors, racks, vents, walkways, and building height are arranged in practice.

But a farm should not copy a room just because it looks functional.

Check the layout against your harvest volume, bed depth, airflow, hygiene, fire safety, and future expansion needs.

Real drying rooms give useful ideas, especially for growers planning their first facility.

Workflow Execution: Managing the Drying Curve

To meet the quality standards of the craft beer market, operators need a disciplined, repeatable drying method.

The sequence below shows how to manage the drying curve safely for maximum oil retention.

Important Operational Note: Always verify the static pressure rating of your centrifugal or axial fans before building out a plenum space; a fan with high volume but insufficient static pressure will stall when forced to push air through a deep, heavy bed of wet hop cones.

Temperature Differences Between Home Drying and Commercial Drying

Home drying and commercial hop drying use different temperature logic.

Small growers often dry at lower temperatures, because the hop layer is thin and air can reach the cones easily.

In a commercial room, the hop bed is deeper, so it may need warmer air and stronger fans to move moisture out of the full layer.

The goal is not to copy one temperature number.

You have to match temperature, airflow, bed depth, and your final moisture target.

A small tray of hops and a full drying room do not behave the same way.

That is why drying settings should always be tested in the real room.

The best setting is the one that dries evenly without damaging aroma.

Light and Heat Control in a Hop Drying Room

A hop drying room should protect hops from direct sunlight and uncontrolled heat.

Light can degrade aroma, and too much heat drives off the delicate oils.

The room should be clean, shaded, ventilated, and easy to monitor.

For small rooms, fans and shaded mesh racks may be enough.

For larger rooms, temperature sensors, humidity readings, and controlled airflow become more important.

A drying room should feel like a controlled work area, not just an empty space where hops sit.

Even a simple room works better when it is clean, shaded, and organized.

The grower should be able to see, reach, and check every part of the batch.

Agronomic Preparation: The Source of Quality

Working out the throughput your dryer needs is really backward engineering that starts at your trellis.

Before you design the drying floor, look at your field and master the basics of how to grow hops for beer at scale, so you can project your seasonal yield.

A mature, well-managed field grows a huge wall of green bines that must be cleared within a tight, weather-dependent window of three to four weeks.

Growing hops at commercial scale takes deep knowledge of soil, irrigation, and pest control.

A hop vine needs three full years to reach its peak alpha acid and oil output.

During those years, farms must watch closely for downy mildew and spider mites, which weaken the cone.

Damaged or diseased cones brown early in the kiln or drying room, giving an off-colored, low-value product.

For sustainable farming and disease guides, see the National Center for Appropriate Technology.

Conclusion: Securing Your Farm’s Infrastructure Future

Investing in a professional post-harvest layout is what turns a farm into a trusted supplier for the craft beer market.

From the field challenge of growing good hops to precise temperature ramps, industrial precision is non-negotiable.

By taking full control of your drying environment, you remove weather risk, keep the aroma in, and keep your freezer rooms full of good inventory.

Your brewery clients reward that dedication with long-term contracts, loyalty, and good reviews.

Take time to measure your peak daily harvest, talk to agricultural engineers, and choose a room or machine built for consistent results.

The quality of the beer poured from your client’s taps is decided right in the airflow of your drying floor.
