Hop Harvesting Equipment: Mechanical Engineering, Sorting Frameworks, and Scalability

Moving a commercial hop yard from hand labor to automated, high-volume production takes a real investment in specialized hop harvesting equipment and a matching commercial hop dryer.

Hop cones grow on tall bines hung from 18-foot overhead trellises.

Because of this, a normal farm combine cannot harvest them.

Instead, harvesting uses a two-stage setup: mobile field cutters that strip the bines off the trellis wires, and large indoor picking machines that separate the delicate cones from the leaves and stems.

For any farm growing past a small test plot, it helps to understand how these machines work.

This guide covers the processing loop, the throughput limits, and the calibration tricks used to recover the most cones while protecting the lupulin.

For general farm-equipment safety codes and machine design standards, see the United States Department of Agriculture.

Mechanical Field Stripping vs. Stationary Processing Plant Design

To understand the machines, it helps to know what are hops in mechanical terms, and how they feed into your Hop Drying Kilns.

Hop cones are light and bulky, and they grow on tough, fibrous vines called bines.

Industrial harvesting uses one of two layouts:

• In-field harvesters: tow-behind or self-propelled machines that drive between the rows, cut the bines at the base, and strip the cones into a trailing hopper in one pass. This cuts transport labor, but the heavy machine adds soil compaction risk in the rows.
• Stationary facility processors: the standard choice for large yards. Mobile cutters sever the bines at the bottom and top, drop the whole plants onto low trailers, and the trailers carry the biomass to a central building with a big multi-tier picking machine.

Stationary setups protect the delicate parts from weather and give a controlled sorting environment, which matters for keeping the lupulin intact before the crop reaches the hop drying room.

For research on soil compaction and farm-vehicle weight limits, see the American Society of Agricultural and Biological Engineers.

Bottomcutters, Topcutters and Hop Trucks

A commercial hop harvest does not start inside the picking machine.

It starts in the field with a bottomcutter and a topcutter.

The bottomcutter cuts the bine near the ground.

The topcutter releases the bine from the top trellis wire.

The cut bines are loaded into hop trucks or trailers and moved quickly to the picker.

This field equipment must work in rhythm with the stationary plant.

If it does not, the picker either sits empty or gets overloaded.

Harvesting hops is a chain, not a single machine, so the field crew, trucks, picker, dryer, and cooling area all have to move together.

Why Mechanical Harvesting Changed Hop Farming

Mechanical harvesting changed hop farming because it made large-scale production possible.

Hand picking needs huge seasonal labor and takes too long for commercial acreage.

Machines let a farm process far more bines in a shorter window.

That helps growers pick at the right ripeness and avoid leaving ripe cones too long in the field.

Hop harvesting has always been a race against time, because cones mature fast and quality changes quickly.

Mechanical equipment gives the farm more control over that short window.

It turns harvest from a labor emergency into a planned operation.

The Internal Mechanics of a Stationary Picking Plant

When the truck drops the bines at the facility, the plants are hung on an overhead track and fed top-first into the picking machine.

Inside, the material goes through a multi-stage separation process.

1. Primary Stripping Drums

The hanging bines pass between pairs of counter-rotating drums fitted with flexible steel fingers.

These fingers hook the stems and strip the leaves and cones off the vine, while leaving the thick bine intact.

2. Dribble Belts and Cross-Flow Fan Cascades

The mix of loose cones, leaves, and stems falls onto angled, upward-moving belts called dribble belts.

This step uses a simple difference in how things move:

• The round, heavier cones roll down against the belt and drop into a collection trough.
• The flat leaves and twigs stick to the belt and ride up to a waste chute.

At the same time, cross-flow fans blow through the falling material.

Because leaves are lighter for their size than dense cones, the air lifts the leaves away, giving clean separation without bruising the cones.

3. Star-Wheel and Sieve Final Calibration

Any leftover twigs or clusters pass through star-wheel sorters and vibrating sieves.

These break apart clusters and filter out fine dust, so only clean whole cones reach the output conveyor.

For research on the surface friction of farm products, see the American Chemical Society.

Mechanical Hop Separation

The main job of hop harvesting equipment is mechanical separation.

The machine must pull the cones off the bines while keeping leaf, stem, and debris carryover low.

This is hard, because cones are delicate while the bines and leaves are fibrous and bulky.

A good separator protects cone shape, keeps lupulin damage low, and produces a clean stream of hops ready for drying.

A harvester is not only a labor-saving machine.

It is also a quality-control machine.

If it tears cones, bruises lupulin, or sends too many leaves into the dryer, the final crop suffers.

Poor separation raises waste and creates more work in the drying and cleaning stages.

Key Components to Check on a Used Harvester

When you buy a used harvester, inspect the cleaning parts carefully.

The important parts are dribble belts, side cleaners, picking fingers, conveyors, motors, bearings, guards, and waste-removal areas.

Dribble belts matter most, because they separate leaves from cones.

If they are worn, misaligned, or dirty, cone purity drops.

Also confirm the tractor horsepower or electrical needs before you buy.

Used machines can look solid from the outside, but the small working parts decide how cleanly they harvest.

Checking belts, fingers, and cleaners before buying can prevent expensive surprises later.

Throughput Optimization Metrics

To help you pick the right machine size for your acreage, the table below compares the footprint and capacity of different equipment setups.

Here is a small-scale modular sorter:

[Small-Scale Modular Sorter]
   ├──► Footprint: about 150 sq ft
   ├──► Capacity: 100 to 150 bines per hour
   ├──► Ideal acreage: 1 to 5 acres
   └──► Needs: single-phase power, manual track feeding

Here is a medium commercial harvester:

[Medium Commercial Harvester]
   ├──► Footprint: about 1,200 sq ft
   ├──► Capacity: 500 to 800 bines per hour
   ├──► Ideal acreage: 20 to 80 acres
   └──► Needs: three-phase power, automated waste conveyors

Here is a high-volume industrial plant:

[High-Volume Industrial Plant]
   ├──► Footprint: 4,500 sq ft or more
   ├──► Capacity: 1,500 to 2,500+ bines per hour
   ├──► Ideal acreage: 100 to 500+ acres
   └──► Needs: dedicated power substation, integrated multi-kiln layout

Choosing the right capacity lets the farm harvest the whole crop at peak maturity, so cones do not over-ripen in the field.

For energy-efficiency upgrades and rural power grants, see the U.S. Department of Energy.

Large-Scale vs. Small-Scale Hop Harvesting Systems

Hop harvesting equipment should match the scale of the farm.

Small systems are compact, easier to install, and better for low acreage or estate breweries.

Large systems need more building space, stronger power, more conveyors, bigger crews, and links to several dryers.

Large systems process far more bines per hour, but they also need more maintenance and planning.

Bigger is not always better.

A machine that is too large is costly to run and hard to justify.

The best harvester is the one that fits the farm’s real production, solving the harvest problem without creating a new financial one.

Entry-Level Hop Harvesters for Small Farms

A small farm does not always need a large stationary picking plant.

Entry-level harvesters help a farm move from hand picking to mechanical harvesting without building a full industrial facility.

These machines are often portable, compact, and made for lower acreage.

They cut labor, improve harvest timing, and help growers pick closer to peak maturity.

For a small grower, the first harvester is often the machine that changes the business.

But it should not be chosen alone.

It has to work with the dryer, the building, the crew, and the real harvest window.

PTO-Powered vs. Self-Powered Harvesters

Small hop harvesting equipment can be PTO-powered or self-powered.

A PTO-powered harvester uses the tractor as its power source.

This is practical if the farm already has the right tractor and wants a simpler machine.

A self-powered harvester has its own engine, which gives more flexibility because it does not depend on the tractor.

Power setup sounds like a small detail, but it shapes the whole harvest day.

If the tractor is needed elsewhere, a PTO machine becomes a scheduling problem.

Before buying, check power needs, fuel use, maintenance, mobility, and how easily the machine cleans between varieties.

Budgeting for Used Hop Harvesting Equipment

Used equipment lowers the purchase price, but the machine itself is not the only cost.

Also budget for refurbishment, spare parts, shipping, installation, electrical work, safety upgrades, and operator training.

A cheap used harvester gets expensive fast if belts, fingers, bearings, guards, motors, or conveyors need major repair.

Before buying, inspect the machine carefully and estimate what it will cost to make it harvest-ready.

The real question is not only “how much does it cost to buy?”

The better question is “how much will it cost to run safely during harvest?”

Processing Flow: The Harvest-to-Storage Sequence

To keep production flowing and protect quality, the team should follow a synchronized sequence.

Mechanical Warning: Ensure all safety guards over the counter-rotating stripping drums are securely locked during operation; the high-torque drives can pull in clothing or tools instantly, causing catastrophic equipment damage and severe operator injury.

From Picker to Kiln

After the picker separates the cones from the leaves and bines, the clean hops should move quickly to the kiln or drying room.

At this stage, fresh cones still hold a lot of moisture.

If they sit too long in piles or bins, they heat up and start to lose quality.

A good harvest line uses conveyors, carts, or clean bins to move cones straight from the picker to the drying area.

The picker does not finish the job.

It only prepares the cones for the next critical step.

The faster they reach the dryer, the better the farm protects aroma and color.

Post-Harvest Preservation and Processing Logistics

As soon as the hop harvesting equipment finishes its sorting loop, the clean cones enter a tight timeline, whether they are headed for fresh use or for hop extract.

If the farm supplies wet hop brewing or specializes in how to dry hops, some clean cones go straight to refrigerated docks for delivery to regional breweries within 24 hours.

But most of the harvest must be preserved for year-round use, so most cones move straight into an automated hop drying room.

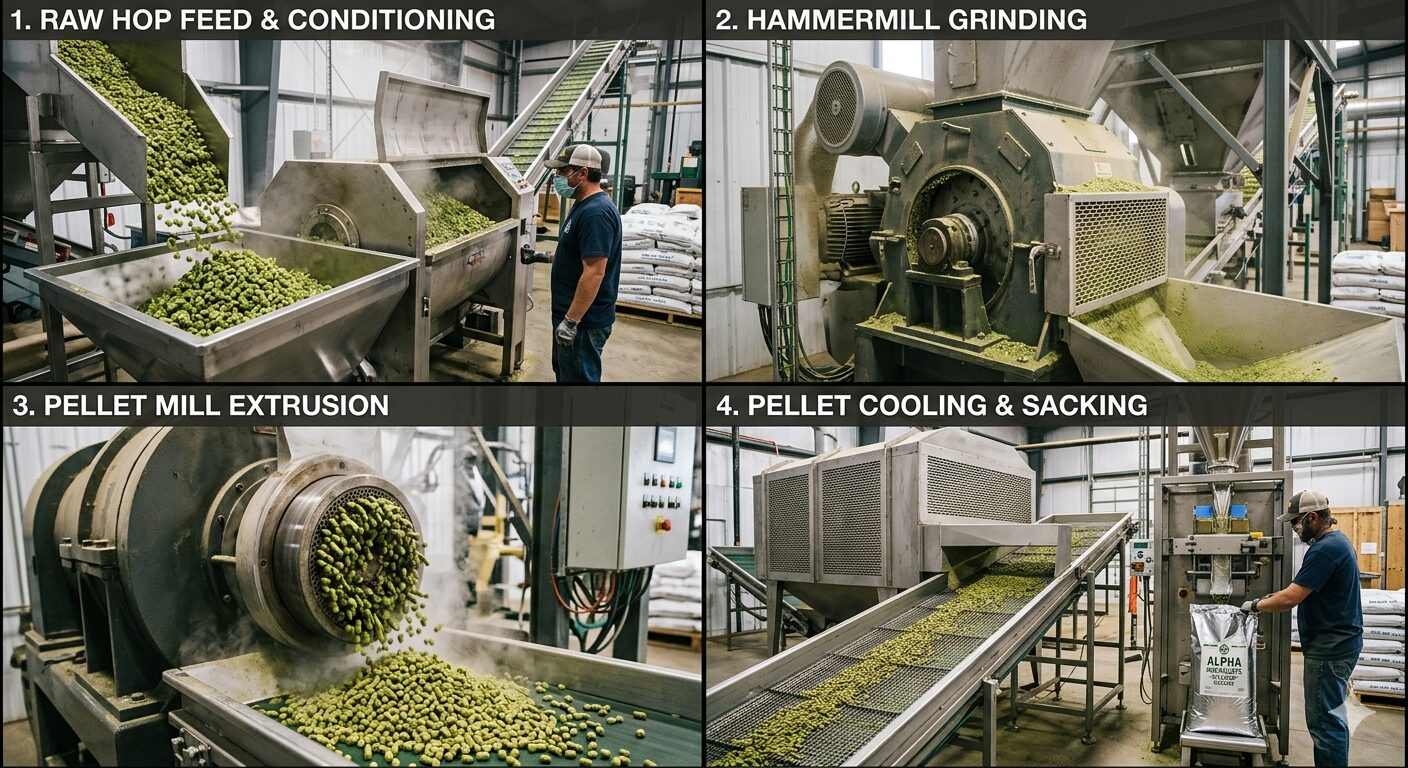

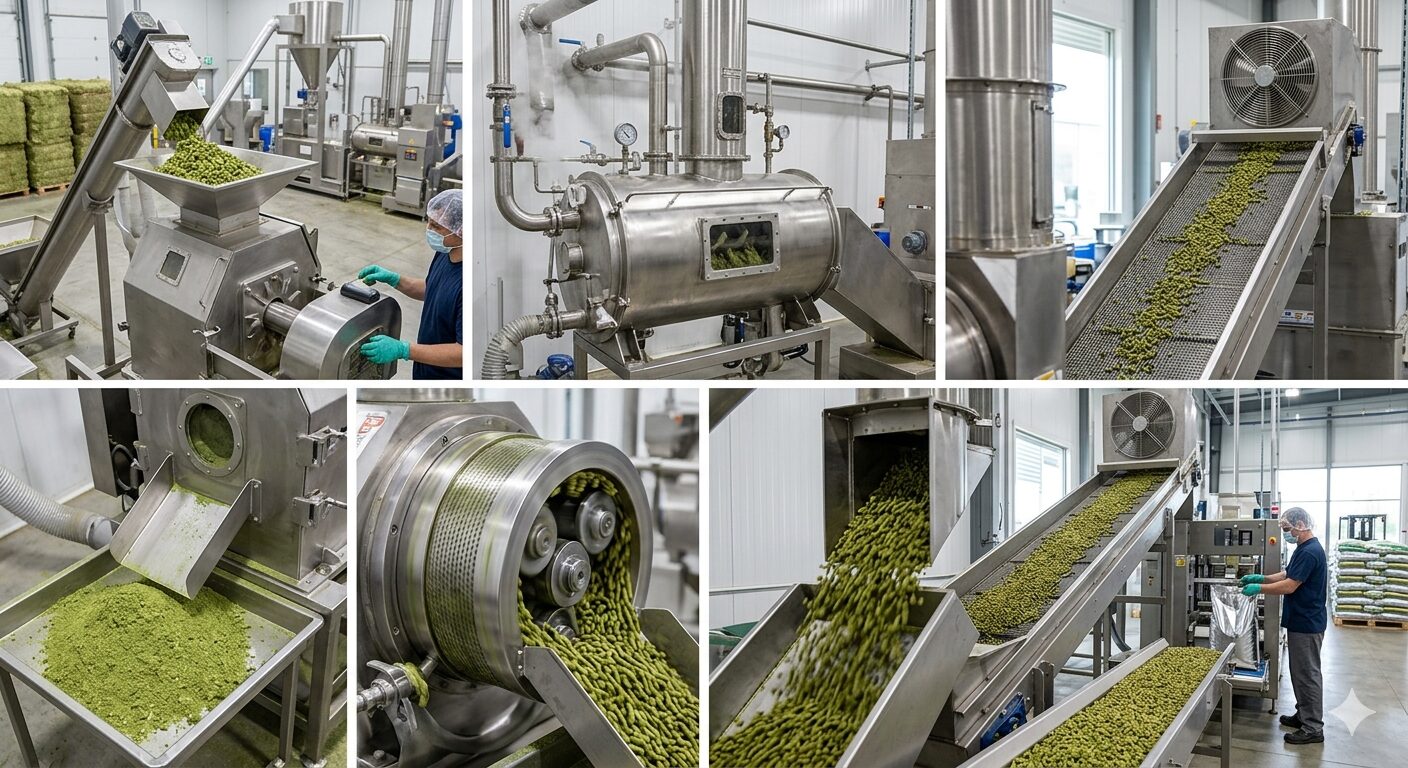

Once dried to a stable moisture level, the whole leaves feed into a heavy-duty hop pellet mill, which presses the crop into dense, standard Type-90 pellets.

Understanding how fresh hops vs dry hops differ in handling and shelf life helps growers set their harvest calibrations correctly.

These pellets are nitrogen-flushed, vacuum-packed, and placed in cold hop storage to lock in their chemistry for global distribution.

For regional farming advice, pest bulletins, and machinery financing tools, see the National Center for Appropriate Technology.

Buying a Complete Hop Processing Line

Hop harvesting equipment should be planned together with drying, pelleting, and storage gear.

A harvester that processes more cones than the dryer can handle creates a bottleneck.

A pellet mill that is too small slows the next stage.

A cold room that is too limited restricts how much you can hold.

So think in terms of a complete processing line, not just a picking machine.

The best setup keeps material moving from field to harvester, harvester to dryer, dryer to pellet mill, and finally into cold storage.

A powerful harvester only helps if the rest of the facility can keep up.

Conclusion: Securing Operational Stability Through Automation

Investing in modern hop harvesting equipment, alongside a solid plan for how to grow hops for beer, is the key step in scaling an estate brewery or commercial hop yard from a manual operation into an efficient business.

From cutting bines in the field to multi-stage sorting in a central facility, mechanical precision directly shapes crop quality.

By working out your throughput needs, tuning fan speeds to each variety, and linking your sorting streams smoothly to your kiln bays, you can recover more oil and remove bottlenecks.

Work closely with mechanical engineers, keep a strict maintenance routine for your stripping fingers, and keep your conveyors aligned.

The precision of your harvesting equipment directly protects the quality of the beer in the glass.
