Commercial Hop Pellet Mill Engineering: Compression, Temperature Control, and Density Dynamics

For farms and cooperatives, turning loose whole cones into shelf-stable Type-90 or Type-45 pellets is a key preservation step.

The main machine for this is the industrial hop pellet mill, a core part of your Hop Drying Kilns line.

Unlike wood or feed pelleting, which uses intense heat and pressure, a hop mill must handle the crop with great care.

The goal is to press loose hops into a dense, uniform format without scorching the delicate lupulin glands.

If you leave the pressure or friction unwatched, the heat oxidizes the alpha acids and boils off the top-note oils.

That lowers the market value of your crop.

This guide covers mill selection, die specs, heat control, and the cooling steps after pressing.

For farm processing rules and machine safety, see the United States Department of Agriculture.

Mechanical Anatomy: The Compression Loop

To understand how the mill works, look at the physical forces that drive the pressing.

When you look at what are hops during processing, they are a fibrous outer structure protecting rich, sticky lupulin resins.

First, the raw material is broken into a coarse, even powder by a hammer mill with dust collectors.

This powder then feeds into the main pelleting chamber.

The core of the mill is two parts: a heavy perforated steel ring die and a set of internal compression rollers.

As the ring die spins, the rollers force the loose powder through hundreds of small channels in the die wall.

The pressure packs the fluffy powder into solid, uniform cylinders.

A set of knives cuts the cylinders to a standard length, usually 6mm or 8mm across.

No binders or chemicals are needed.

The native lupulin resins soften slightly under pressure and act as a natural glue that holds each pellet together once cooled.

To explore research on resin friction and flow under pressure, search the archives of the American Chemical Society.

Whole Cones vs. Ground Hop Material Before Pelleting

Some hop pellet mills can process whole dried cones, while others work better when the hops are ground first.

Grinding creates a more uniform input material. This can improve feeding, compression, pellet shape, and final density.

However, grinding also exposes more surface area to oxygen, so the process should be fast and well controlled.

For commercial quality, the farm should choose the preparation method that gives stable pellets without adding unnecessary heat or oxidation.

The step before pelleting matters more than it seems. If the material enters the mill unevenly, the pellets may also come out uneven.

A clean, consistent feed helps the mill work smoothly. It also reduces stress on the die, rollers, and cooling system.

—

Flat Die Hop Pellet Mills

Some small and medium hop farms use flat die pellet mills.

In a flat die system, the material is pressed through holes in a flat die by rotating rollers. This type of machine can be simpler and more accessible than a large ring die system.

Flat die mills can be useful for smaller production volumes, pilot batches, or farms that are still testing pellet production.

For larger commercial output, ring die systems are often preferred because they can support higher throughput and more continuous operation.

A small farm does not always need the biggest machine first. A flat die mill can be a practical entry point when the farm is learning the process.

The important thing is not only the mill type. The grower must still control moisture, temperature, pellet density, and packaging quality.

—

Flat Die vs. Ring Die Pellet Mills

Pellet mills are often divided into flat die and ring die designs.

Flat die mills are usually simpler and can be useful for smaller production runs. Ring die mills are often used for higher-capacity industrial production because they support continuous output and stronger compression control.

For hops, the choice is not only about capacity.

The grower must also consider temperature control, die friction, cleaning, maintenance, pellet durability, and how gently the machine handles lupulin-rich material.

The best mill is not always the largest one. The best mill is the one that makes stable pellets without damaging hop quality.

For hops, gentle processing matters. A machine built only for hard biomass may not protect the delicate oils that brewers actually want.

Thermal Management: The Overheating Risk

Controlling the temperature inside the chamber is the most important task during pressing.

The friction helps bind the pellet, but too much heat quickly ruins the product.

Lupulin glands are very sensitive to heat.

If the die rises above 130°F, the delicate oils, especially myrcene, flash off into the exhaust.

Long exposure to heat also speeds up alpha acid oxidation and shortens shelf life.

To prevent this loss, modern mills use advanced cooling systems:

• Water-cooled jackets: cooling channels built into the main shaft and die assemblies to pull away excess heat.
• Cryogenic injection ports: advanced lines inject liquid nitrogen into the chamber, dropping the temperature well below freezing.

This cold-processing keeps the material cold under high pressure, protecting the full aroma of your harvest.

For safety specs on high-pressure cooling systems, see the American Society of Agricultural and Biological Engineers.

Low-Temperature Hop Pelleting

A hop pellet mill should work at low temperature.

Hops are not like wood, feed, or other biomass materials. They contain delicate lupulin glands filled with aromatic oils and alpha acids.

If the mill becomes too hot during compression, these compounds can degrade quickly.

For this reason, hop pelleting equipment should be designed to control friction heat and keep the product as cool as possible during processing.

Low temperature is one of the most important details in hop pelleting. The machine is not only shaping the crop; it is protecting its brewing value.

A good pellet mill should compress the hops without cooking them. That is what keeps the aroma closer to the original harvest.

—

Low-Friction Die Design

Die design is critical in a hop pellet mill.

A low-friction die helps reduce heat buildup during compression. This is important because excessive die friction can damage hop oils and shorten shelf life.

The die holes, compression ratio, surface finish, and material flow all influence pellet quality.

A well-designed die creates stable pellets while keeping processing temperature under control.

The die is one of the parts that growers should take seriously. It is where pressure, heat, and product quality meet.

If the die is wrong, the machine may still make pellets, but those pellets may lose aroma or break apart too easily.

—

Production Ratios and Bulk Density Metrics

Pressing loose whole leaf into dense cylinders changes your shipping and storage a lot.

When you weigh fresh hops vs dry hops and learn how to dry hops, the bulk density decides how much warehouse space you need.

Loose whole-leaf hops have low bulk density and need a lot of floor space.

Once pressed, the bulk density rises about four times, saving storage room.

[Loose Whole-Leaf Flowers] ──► [2 to 3 lbs per cubic foot]

[Compressed Type-90 Pellets] ──► [30 to 35 lbs per cubic foot]

This means a shipping container holds four times the product by weight, cutting freight costs.

Pellets are also far less porous than open leaf, so less surface meets oxygen and the alpha acids last longer.

Concentrated liquid hop extract packs even denser, but pellets stay the most practical format for most breweries.

Here is how loose whole leaf compares:

[Loose Whole Leaf]
   ├──► Bulk density: 2.5 lbs per cubic foot
   ├──► Oxygen exposure: high
   ├──► Packaging: high-volume bags
   └──► Storage: around 32°F

Here is how compressed Type-90 pellets compare:

[Compressed Type-90 Pellets]
   ├──► Bulk density: 32.5 lbs per cubic foot
   ├──► Oxygen exposure: low
   ├──► Packaging: compact foil pouches
   └──► Storage: 26°F to 32°F

Here is how concentrated liquid extract compares:

[Concentrated Liquid Extract]
   ├──► Bulk density: 65 lbs per cubic foot
   ├──► Oxygen exposure: low
   ├──► Packaging: canisters or pails
   └──► Storage: ambient stable

For guidelines on warehouse floor loads and stacking limits, see the Master Brewers Association of the Americas.

Why Pellets Improve Brewing Efficiency

Hop pellets improve brewing efficiency because they are compact, measurable, and easier to store than loose whole cones.

Their consistent shape makes dosing simpler for breweries. Their higher density also reduces packaging volume and cold storage space.

For growers, pelleting can increase the commercial value of the harvest.

For brewers, pellets offer a more practical format for daily production, especially when recipes must be repeated throughout the year.

Pellets are not popular only because they are convenient. They make the entire supply chain easier to manage.

The grower can ship more product in less space, and the brewer can measure, store, and use the hops with less waste.

—

Pellet Milling as Flavor Protection

A hop pellet mill is not only a storage machine.

When designed and operated correctly, it helps protect flavor by turning loose hops into a dense, stable format with less oxygen exposure.

This is especially important for aroma varieties, where buyers expect strong, clean, recognizable hop character.

Poor pelleting can flatten the aroma, while careful low-temperature processing can help preserve the identity of each variety.

Pellet milling should not be treated as a purely mechanical step. It is part of flavor protection.

A grower who controls pelleting carefully can deliver hops that feel fresher, cleaner, and more consistent to the brewer.

—

Post-Extrusion Processing: Step-by-Step Production Sequence

To keep your pellets from sweating or degrading in the bag, follow this standard sequence after pressing.

The material should already be conditioned in a drying room first — see our commercial hop dryer guide for that step.

1. Check the incoming moisture. Confirm the whole-leaf material was dried to about 8.5% moisture before milling, because wet material clogs the die channels.
2. Run low-temperature extrusion. Feed the ground material through the mill, watching the thermocouples so die friction heat never goes above 130°F.
3. Move to a counterflow cooler. Send the hot, freshly cut cylinders straight into a vertical counterflow cooling bed to drop them to room temperature within minutes.
4. Screen out the fines. Pass the cooled product over an oscillating screen deck to separate loose powder and fragments from the solid pellets.

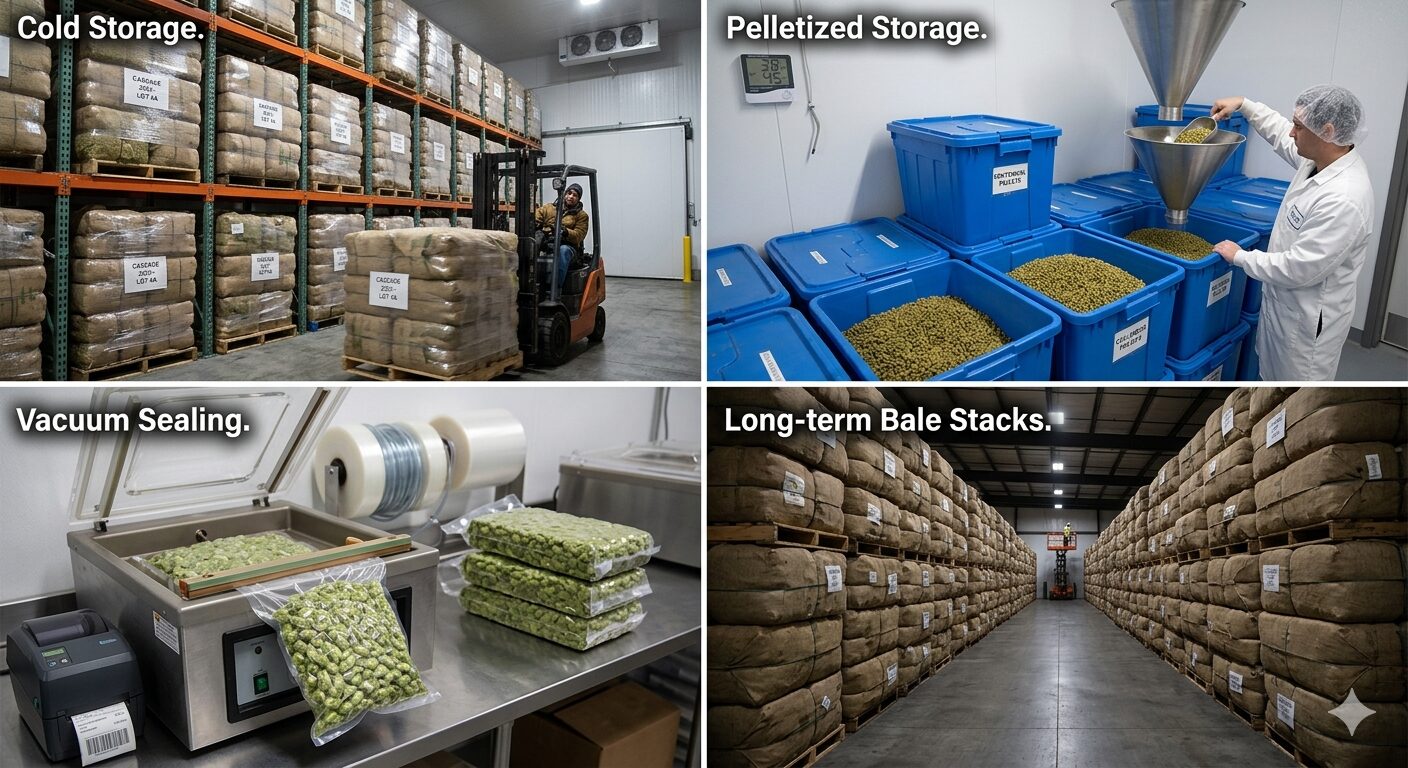

5. Nitrogen-flush and vacuum seal. Pack the pellets into multi-layer foil bags, purge the oxygen with nitrogen, then heat-seal to lock in freshness.

Operational Warning: Never bag pellets while they are still warm from the die.

Sealing warm material traps moisture inside the bag, which leads to mold and total product loss.

Small-Scale Hop Pelleting Workflow

Small-scale hop pelleting usually follows a clear sequence.

First, the hops must be dried to the correct moisture level. Then they are milled or broken down into a consistent material. After that, the hop material is compressed through the pellet mill.

The fresh pellets must be cooled, screened, packed, and stored cold.

Even at small scale, each step affects quality. Poor drying, overheating, or weak packaging can reduce the value of the pellets.

Small-scale pelleting can look simple, but it still needs discipline. The machine is only one part of the process.

The best results come when the grower treats every step carefully: drying, grinding, pelleting, cooling, packing, and storage.

—

Complete Hop Pellet Production Line

A hop pellet mill can be part of a complete pellet production line.

This line may include drying, grinding, pelletizing, cooling, screening, weighing, nitrogen flushing, vacuum sealing, and cold storage.

For commercial growers, the full line matters more than the pellet mill alone.

If one step is too slow, the whole process can create a bottleneck and expose the hops to heat, oxygen, or moisture for too long.

Buying a pellet mill is not the same as building a pellet operation. The farm also needs the right equipment before and after the mill.

Good pellets come from a complete workflow. The mill shapes the hops, but cooling, packing, and storage protect them.

—

Cooling and Screening After Pelleting

Fresh hop pellets should be cooled and screened after extrusion.

Cooling removes the heat created by friction in the die. Screening removes fines, broken pieces, and loose powder from the finished product.

This improves packaging quality and helps create a more uniform bag of pellets.

If warm pellets are sealed too soon, they can sweat inside the package and create moisture problems.

The pellet is not finished when it leaves the die. It still needs to cool, stabilize, and be cleaned from dust and broken fragments.

This final handling step protects the product. It also makes the pellets easier for breweries to dose and use.

—

Agronomic Upkeep: Cultivating for Mill Compatibility

A smooth pelleting run depends heavily on the quality of the incoming crop.

Farms must understand how to grow hops for beer with structural consistency in mind.

Unbalanced fertilizer can create thick, woody stems or poor lupulin glands, which change how the material packs in the die.

The crop must also stay free of stones, wire, and metal debris from the field.

If debris gets past your magnetic separators and into the mill, it scars the expensive ring die and causes costly shutdowns.

By keeping fields clean, using good hop harvesting equipment and wet hop brewing, and watching moisture in your hop drying room, you give the mill a clean, uniform input.

For soil tips and sustainable farming frameworks, see the National Center for Appropriate Technology.

Conclusion: Engineering Long-Term Value into the Harvest

Investing in a cold-processing hop pellet mill layout is a smart way for growers to raise the value of the harvest.

From the field work of learning how to grow hops for beer and planning your hop storage, to fine-tuning ring die compression and nitrogen-purged packaging, precision is key.

By keeping temperatures low, matching compression to each variety’s oil content, and using efficient counterflow cooling, your plant delivers top-tier product every time.

Keep your dies clean, maintain your cooling systems, and check your moisture at every stage.

The care you take on the production floor directly protects the delicate aroma and brewing value in every bag of hops.
