Brewery Water Filtration Systems: RO, Carbon, and Softener Compared

Section 1: Pure Water Foundations in Commercial Breweries

Running a commercial brewery means paying close attention to your water.

Relying blindly on city tap water or raw well water creates risk: production delays and flavor swings.

A heavy-duty reverse osmosis system is one of the most important pieces of infrastructure for a growing brand.

Every fermentation in the cellar depends on good water on the hot side to make a clean wort.

If minerals, organic matter, or chlorine are not controlled early, your chemistry fails.

That leads to off-flavors, poor shelf life, and a medicinal taste that loses customer trust.

A good water system removes the seasonal swings you get from unmonitored city or well water.

Whether you run a small taproom or a big packaging floor, your water machinery shapes your margins.

To understand the science of osmotic pressure and membranes, see Wikipedia: Reverse Osmosis.

Using reverse osmosis water for brewing beer has gone from a luxury to a must for breweries that want to compete regionally.

Mains Water and Borehole Water Filtration

Breweries may start from mains (city) water or borehole (well) water, and each needs different filtration.

Mains water often carries chlorine or chloramine, which must be removed before brewing.

Borehole water can carry iron, manganese, hardness, or bacteria that change with the seasons.

So the filtration setup should be matched to the actual source water, not chosen blindly.

Testing the source water first tells you what you are really dealing with.

A well and a city line can need very different pre-treatment, even for the same beer.

Matching the system to the water protects both quality and equipment.

Section 2: Fluid Flow, Crossflow, and Membrane Basics

To keep quality steady across thousands of barrels a year, you need a solid water routine.

The core idea is simple: strong pumps push raw water through dense membranes under high pressure.

The pumps drive water through crossflow membranes that separate pure water from dissolved solids, minerals, and metals.

Before any water reaches the hot liquor tank, it passes through several filtration steps.

High-pressure pumps push the water against thin-film membrane sheets.

These Wikipedia: Polymer layers let water molecules through while blocking larger ions like sodium and chloride.

The concentrated mineral waste is separated inside the vessels and sent to the floor drain.

A dedicated brewery water treatment setup keeps your base water free of heavy metals, pesticides, runoff, and chlorine spikes.

Multilayer Filtration and Ultrafiltration

Some breweries use multilayer filtration and ultrafiltration as part of their water system.

Multilayer (multimedia) filters use several layers of media to catch particles of different sizes in one vessel.

Ultrafiltration uses a fine membrane to remove very small particles, bacteria, and some large molecules.

These steps can protect the reverse osmosis membranes and improve the water before it reaches them.

Ultrafiltration is useful when the source water carries a lot of fine particles or microbes.

By cleaning the water in stages, each step handles what it does best.

This keeps the whole system stable and extends the life of the more expensive membranes.

Section 3: Water Chemistry and the Mash

The mash needs a balanced mineral environment to convert starch into sugar well.

When you use unmanaged source water, changing levels of calcium, magnesium, bicarbonate, and sodium upset the enzymes.

A multi-stage beer water treatment system lets you strip out all the background minerals before building a recipe.

This blank slate gives your team full control over the mineral ratios for either crisp hop bitterness or rounded malt.

Without it, the natural alkalinity of city water can push the mash pH too high.

A high mash pH pulls harsh, astringent tannins from the grain husks, leaving a dry, unpleasant finish.

To understand starch conversion and wort prep, see Wikipedia: Brewing.

Starting from clean water also improves extract efficiency, saving money on malt every year.

Filtration for Flavor Consistency

Good filtration is not only about safety; it is about making the beer taste the same every time.

When the water is filtered to a known, stable base, each batch starts from the same point.

This removes the flavor swings that come from changing tap or well water through the year.

For a flagship beer that must taste identical in every glass, that consistency is essential.

Customers notice when a favorite beer drifts in flavor.

Stable, filtered water is one of the simplest ways to protect a recipe.

It lets the malt, hops, and yeast define the beer, instead of the local water supply.

Section 4: Pre-Treatment Stages

A high-output water skid uses a set sequence of filtration stages to protect its core parts.

Before the water reaches the membrane, it passes through several brewery water filtration components.

In craft beer production, water quality is very important, because it affects the taste, aroma, and balance of the final beer.

Many breweries use filtered water to create a cleaner, more stable base for brewing.

One key step is removing chlorine, because chlorine can create off-flavors and hide the natural character of the malt, hops, and yeast.

The usual pre-treatment is a sediment filter, a water softener, and an activated carbon bed.

The sediment filter catches sand, rust, and silt that would wear out the pumps or clog the membrane.

The softener swaps scale-forming calcium and magnesium for sodium through ion exchange.

To learn how softening strips scale-forming ions, see Wikipedia: Water Softening.

Finally, the carbon bed removes chlorine and chloramine, which can burn holes in the membranes.

Comparing RO, Nanofiltration, Carbon Filters, and Softeners

Breweries can choose from several water technologies, and each does a different job.

Reverse osmosis removes almost all dissolved minerals, giving a near-pure base.

Nanofiltration removes many minerals but lets some pass, so it sits between RO and softening.

Carbon filters mainly remove chlorine, chloramine, and some organic compounds.

Water softeners remove hardness (calcium and magnesium) but leave most other dissolved solids.

The best setup often combines several of these.

Carbon and softening protect the RO membrane, while RO gives the clean base for building a recipe.

The right mix depends on the source water and the styles you brew.

Chlorine Removal, Hardness, and pH

Three water problems matter most for brewing: chlorine, hardness, and pH.

Chlorine and chloramine must be removed, usually with carbon, because they cause medicinal off-flavors.

Hardness (calcium and magnesium) affects mash chemistry and can form scale in equipment.

pH controls how the mash and wort behave, and it shapes the final flavor.

Handling these three well solves most water issues in a brewery.

Filtration removes the chlorine and manages hardness, while mineral additions fine-tune the pH.

Together they turn raw water into a reliable brewing base.

Iron and Manganese Removal

Some water sources, especially wells, carry iron and manganese.

Even small amounts can cause metallic off-flavors, staining, and stubborn deposits in equipment.

Iron and manganese are usually removed with oxidation followed by filtration, or with special media beds.

This step is important before the water reaches the softener or the membrane.

Left in the water, iron and manganese can foul membranes and clog valves.

Removing them early protects the rest of the system.

It also keeps the beer free of the harsh metallic notes these metals create.

Section 5: Sizing the System for Your Facility

Picking the right capacity means calculating your peak daily water use.

A custom brewery ro system needs a clear view of your brewing, cleaning, and packaging schedules.

A system is rated by how many gallons of clean water it makes per day at ideal temperature.

Because membranes slow down as water gets colder in winter, size for the worst-case cold water.

A real production floor needs about four parts water for every part beer, once you count rinsing and cleaning.

Undersizing this utility causes big bottlenecks, with the cellar crew waiting hours for the tank to refill.

To review water quality benchmarks, see Wikipedia: Water Quality.

Product Water and Technical Process Water

A brewery uses water in two main ways: as product water and as technical process water.

Product water becomes part of the beer, so it needs the highest quality and a precise mineral profile.

Process water is used for cleaning, rinsing, cooling, and steam, and it has its own quality needs.

Treating both correctly avoids waste and protects the beer.

Splitting these two uses helps size the system properly.

You do not need full RO water for every floor washdown, but you do for the beer itself.

Planning both streams keeps costs down and quality up.

Section 6: Sustainability and Wastewater

A high-capacity plant carries real environmental duties and strict city rules.

Membrane separation leaves a concentrated reject stream holding all the solids stripped from the water.

Managing this stream needs a plan for brewery wastewater treatment, or you face city surcharges and penalties.

Many facilities reuse this non-drinkable concentrate for floor washdowns, boiler feed, or cooling make-up.

The high-pH and low-pH cleaning cycles must also be neutralized before they leave the building.

Failing to manage effluent can overwhelm the city plant and trigger shutdown orders.

To see how large plants handle discharge and compliance, see Wikipedia: Industrial Wastewater Treatment.

Section 7: Building the Filtration Skid

A dependable water treatment for brewery setup means mounting industrial parts on a rigid, vibration-damped frame.

The layout should use a stainless steel skid that holds the pre-filters, the high-pressure pump, and the pressure vessels.

All high-pressure lines should be welded 316L stainless steel or heavy-duty thermoplastic.

Avoid cheap PVC or braided hoses on high-pressure loops; they can burst and leach plasticizers.

Flow meters on the permeate and concentrate lines let operators watch the recovery balance in real time.

Pressure gauges before and after each stage make it easy to spot clogged filters or failing seals.

For the basics of sanitary design and fluid hygiene, see Wikipedia: Sanitary Engineering.

Custom Brewery Filtration Skids

Many breweries choose a custom filtration skid built for their exact needs.

A skid packages the pumps, filters, membranes, valves, and controls onto one frame.

This saves floor space, simplifies installation, and keeps the plumbing tidy and serviceable.

A custom skid can be sized to the brewery’s flow rate, source water, and future growth.

Because it is pre-built and tested, a skid is usually faster to install than loose parts.

It also makes maintenance easier, since everything is in one place.

For a growing brewery, a well-designed skid is a clean, scalable solution.

Section 8: Minerals, pH, and Fermentation

The final water profile has a big, lasting effect on the health of your yeast during fermentation.

Mastering brewing water chemistry means understanding how each mineral ion interacts with the yeast.

Calcium is key: it helps yeast settle, improves protein removal in the boil, and stabilizes mash enzymes.

Magnesium is a needed co-factor for yeast, but too much makes a sharp, bitter taste.

Bicarbonate must be watched, because it buffers the mash and keeps the pH from reaching its target.

Starting from demineralized water, you can dose exact amounts of gypsum and calcium chloride to tune fermentation.

For the biology of yeast and fermentation, see Wikipedia: Fermentation.

Section 9: Building Style-Specific Water Profiles

Every classic beer style grew out of the local water where it was born.

Recreating those flavors today means building a detailed ro water profile for each beer.

A Czech Pilsner needs very soft water, giving a smooth mouthfeel and a gentle hop character.

An English Pale Ale needs hard water rich in calcium sulfate, which sharpens the hop bitterness.

With a good membrane system, you can switch from a soft Pilsner profile to a hard Burton profile from one day to the next.

That flexibility lets one plant brew a wide range of world-class styles with no geographic limits.

To explore the history of beer styles, see Wikipedia: Beer.

Section 10: Buying Your Water Equipment

Sourcing your water gear means balancing your startup budget against long-term upkeep.

Checking listings from trusted vendors helps you find reliable parts at lower upfront cost.

Buying used equipment can save thousands, freeing money for packaging machinery.

But used parts need care: hidden cracks in pump housings or fouled membranes can fail fast.

New custom systems come with warranties, tech support, and modern wiring that meets code.

A common strategy is to buy a new core filtration skid and source used storage tanks.

Whatever the path, check every liquid-contact surface to avoid contamination later.

Installation and Maintenance Planning

A water system needs a clear plan for both installation and ongoing maintenance.

Installation should cover space, power, drainage, water pressure, and access for service.

Maintenance includes changing pre-filters, cleaning membranes, checking pumps, and testing water quality on a schedule.

Skipping these tasks leads to poor water, fouled membranes, and surprise breakdowns.

A simple maintenance calendar keeps the system running well.

Track filter changes, membrane cleanings, and test results so nothing is missed.

Planning this from the start protects both the equipment and the beer.

Section 11: Facility Infrastructure Matrix

Choosing your water machinery means balancing upfront cost against your daily output goals.

The table below outlines the footprints and output of different equipment tiers:

Equipment System Scale	Primary Pump Options	Average Daily Throughput	Target Business Model
Micro Pilot Nano Systems	Single-Phase Centrifugal	500 to 1,500 Gallons / Day	Recipe Testing & Research Labs
Boutique Craft Skids	High-Efficiency Multi-Stage	2,000 to 5,000 Gallons / Day	Neighborhood Taprooms & Brewpubs
Expanded Mid-Size Platforms	Heavy-Duty Industrial Hydraulic	6,000 to 15,000 Gallons / Day	High-Volume Taprooms & Local Wholesale
Industrial Production Skids	Multi-Array Multi-Pump Automated	20,000+ Gallons / Day	Regional Distribution & Automated Canning

Section 12: Stainless Steel and Clean-In-Place

The way your water, cleaners, and tank walls interact affects your beer’s shelf life.

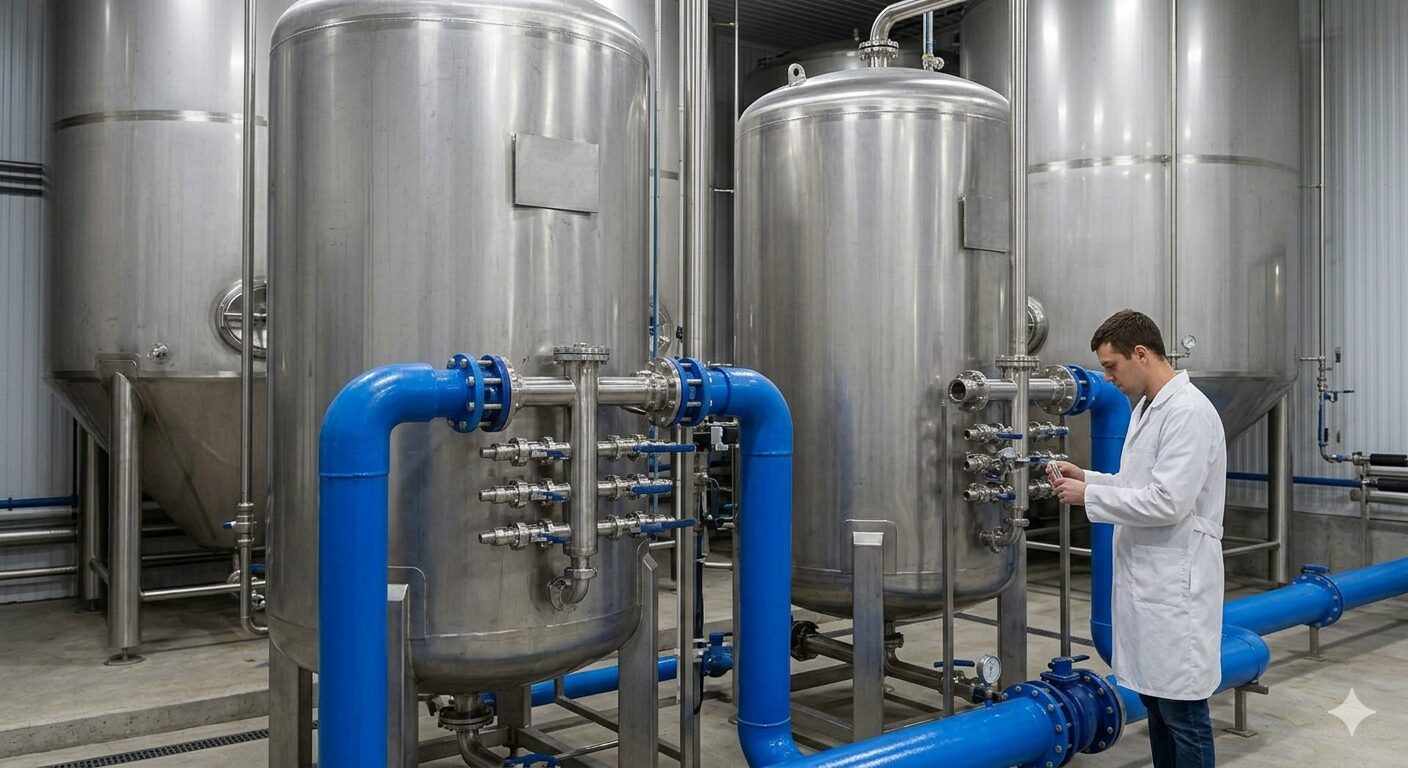

Water vessels should be built from premium stainless steel, usually 304 or acid-resistant 316L.

These alloys hold chromium and nickel, which form a passive layer that protects the metal.

That layer shields the tanks from cleaning acids, high-chloride water, and strong minerals.

To block bacteria, the inside steel must be polished smooth, with a low roughness.

Rough spots, weld lines, or scratches can hide residue and shelter bacteria from cleaning.

Good maintenance means following strict clean-in-place sanitization loops.

Section 13: Safety and Wastewater

Running an industrial water system means handling high pressure and chemicals under strict local laws.

The high-pH and low-pH cleaners used on the membranes cannot flow straight into the sewer.

To meet local rules, plants install a wastewater neutralization system.

It collects the spent cleaning solutions in a tank and uses probes to balance the pH automatically.

Your floor crew must also wear full protective gear: chemical suits, heavy gloves, and face shields.

Making safety and compliance a priority protects your staff and avoids legal delays.

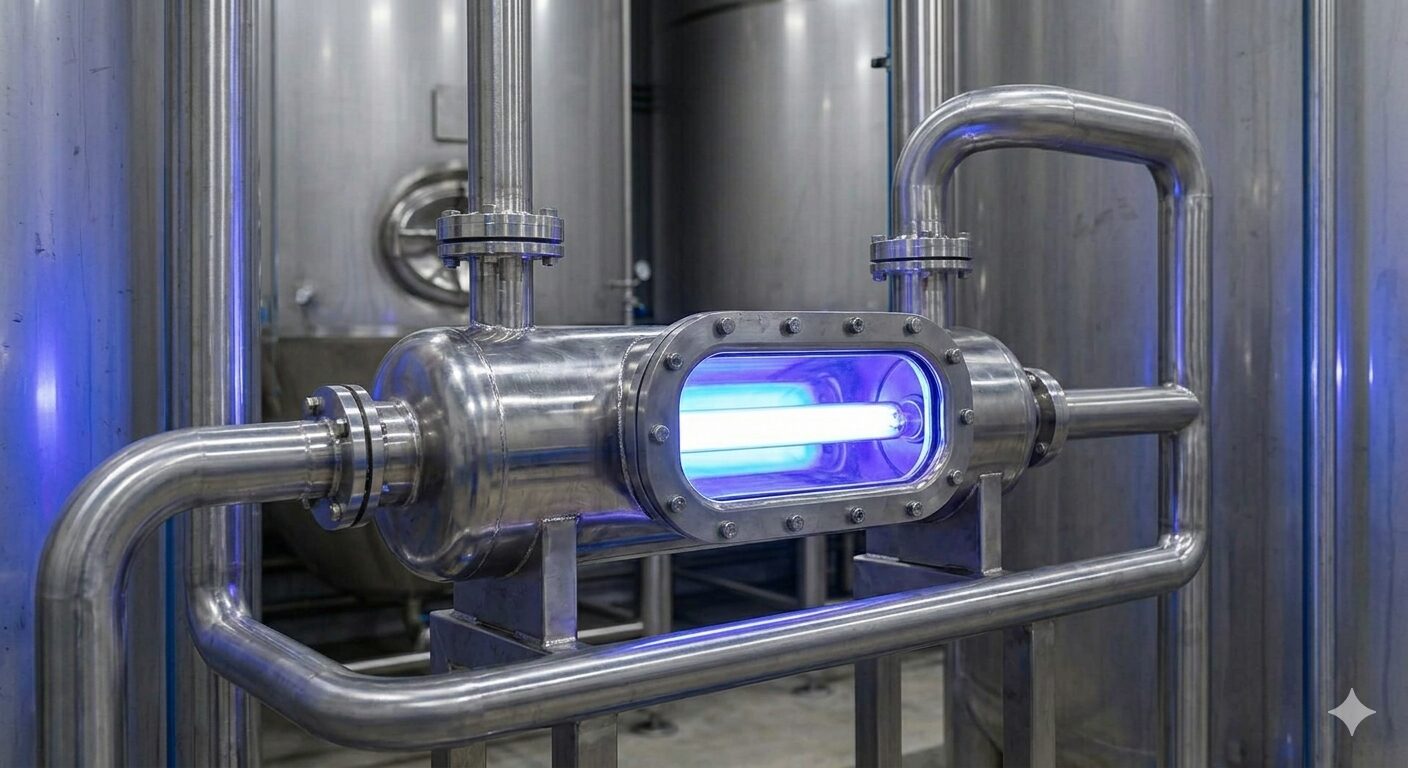

UV Treatment in Brewery Water Filtration

Ultraviolet (UV) treatment is a chemical-free way to disinfect brewery water.

UV light passes through the water and deactivates bacteria, viruses, and other microbes.

It adds no taste, color, or chemicals, so it does not change the water profile.

UV is often used as a final polishing step after filtration, on both incoming and stored water.

Because it leaves no residue, UV is a clean way to control microbes.

It works best on water that is already clear, so filtration usually comes first.

For breweries, UV adds an extra layer of safety without affecting flavor.

Section 14: Summary and Growth Blueprint

Choosing your core setup starts with a clear view of your sales goals, space, and budget.

If you run a taproom where beer sells quickly on-site, a compact automated skid is an affordable path.

But if you plan to grow wholesale across several states, a full industrial multi-membrane skid is essential.

Check your building’s floor weight limits, balance your chemical use, and enforce strict validation checks.

By matching the equipment to your volume and treating water as a key partner, your team will deliver great beer.
