Water Treatment for Brewery: Ensuring Quality and Compliance

Introduction: Industrial Water Engineering and Separation Physics

Running a commercial brewery takes a strong focus on clean water, sanitary design, and steady process control.

For a growing brand, leaning on raw tap water or well water creates real risks: delays, off-flavors, and batch-to-batch changes.

Installing a heavy-duty reverse osmosis system is one of the most important choices an ambitious brewery can make.

Every fermentation in the cellar depends on a clean, predictable hot-side process.

If raw minerals, organic matter, or chlorine slip through the water prep, your chemistry fails.

That leads to flavor defects, poor shelf life, medicinal off-notes, and unpredictable mash results.

A good water purification system removes the seasonal swings you get from unmonitored tap or well water.

To learn the science of osmotic pressure and membranes, see Wikipedia: Reverse Osmosis.

Whether you run a small taproom or a large packaging floor, your water machinery shapes your margins.

Using reverse osmosis water for brewing beer has gone from a luxury to a must for breweries competing in the market.

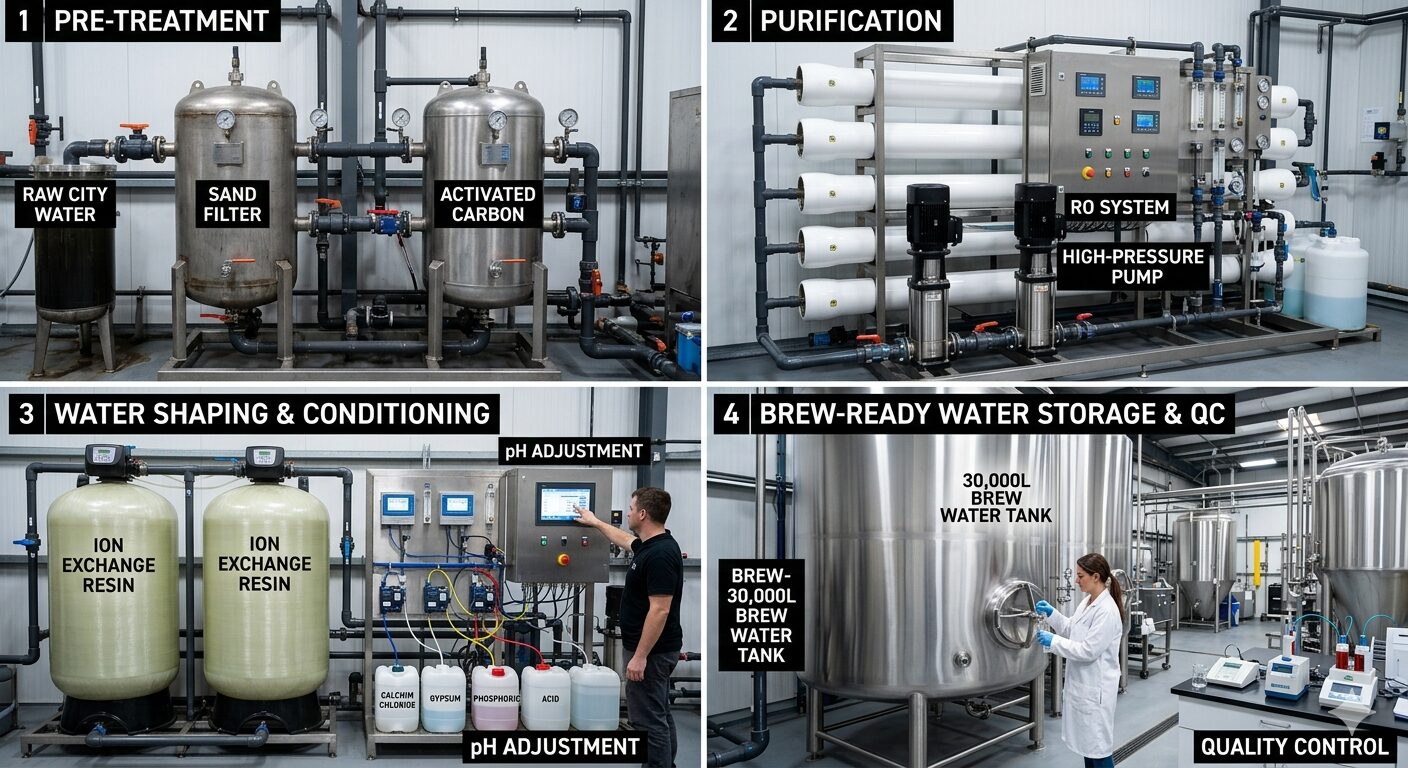

Complete Water Treatment Stages for Breweries

A brewery water treatment system usually works in several stages.

First, pre-treatment removes particles, iron, manganese, and other unwanted compounds from the incoming water.

Then, ultrafiltration or fine filtration can help protect the reverse osmosis membranes.

After that, the RO system reduces dissolved solids and creates a clean base water.

Some breweries also use blending equipment to mix treated water with a controlled amount of source water.

This allows the brewer to reach the right mineral balance without starting from zero every time.

Finally, the concentrate stream must be managed correctly, because it contains the minerals and substances removed from the feed water.

In real brewery work, water treatment is not just one machine doing one job.

It is more like a chain.

If the first step is weak, the next step has to work harder.

If iron, manganese, chlorine, or sediment reach the RO membranes, the system becomes less reliable and more expensive to maintain.

A good setup protects the beer, but it also protects the equipment that makes the beer possible.

Fluid Flow Mechanics, Crossflow, and Membrane Dynamics

To keep quality steady across thousands of barrels a year, you need a strong water purification routine.

The basic process pushes raw feed water under heavy pressure through dense membrane barriers.

High-pressure pumps drive the water through crossflow elements, separating pure water from dissolved solids, minerals, and metals.

Before water reaches the hot liquor tank, the treatment system runs several filtration steps.

The raw water enters through automated valves, where multi-stage pumps push it against thin-film composite sheets.

These polymer layers let water molecules pass while rejecting larger ions like sodium and chloride.

The concentrated waste stream then flows out to the floor drain.

To study the materials used in these filters, see Wikipedia: Polymer.

An automated brewery water treatment setup keeps your base water free of heavy metals, pesticides, runoff, and chlorine spikes.

The Chemistry of Mash Extraction and Enzyme Conversion

The reactions inside the mash tun need a balanced mineral environment to convert starch well.

When you use unmanaged source water, changing levels of calcium, magnesium, bicarbonate, and sodium disrupt the natural enzymes.

A multi-stage beer water treatment system lets you strip out all background minerals before building a recipe.

This blank slate gives your team full control over the mineral ratios for crisp hop bitterness or deep malt character.

Without this control, the natural alkalinity of your tap water can push the mash pH too high.

A high mash pH pulls harsh, astringent tannins from the grain husks, leaving a dry, unpleasant finish.

To understand starch conversion and wort prep, see Wikipedia: Brewing.

With a clean base, every batch hits maximum extract efficiency, saving thousands in malt costs each year.

RO Water as a Controlled Starting Point

RO water should be seen as a controlled starting point.

It is not magic water, and it is not always ready to use without adjustment.

Its main advantage is that it removes most of the unknown variables from the source water.

Once the minerals are reduced, the brewer can rebuild the water profile with more precision.

This makes mash pH, yeast performance, hop expression, and final flavor easier to control from batch to batch.

For many brewers, the real value of RO water is peace of mind.

Instead of wondering whether the city water changed during the season, the team starts from the same clean base every time.

That makes small recipe adjustments easier to understand.

If the beer changes, the brewer can look at the recipe, fermentation, or process without always blaming the incoming water.

Pre-Treatment Separation Stages

A high-output purification skid uses a careful sequence of filtration stages to protect its core parts.

Before water reaches the high-pressure membranes, it passes through several brewery water filtration components.

This pre-treatment usually includes a sediment filter, a water softener, and an activated carbon bed.

The sediment filter captures sand, rust, and silt that could damage the pumps or foul the membranes.

The softener swaps scale-forming calcium and magnesium for non-scaling sodium through ion exchange.

To learn how softeners strip scale-forming ions, see Wikipedia: Water Softening.

Finally, the carbon bed absorbs chlorine and chloramine, which can burn holes through the membranes.

Main Water Treatment Methods Used in Breweries

Most brewery water treatment systems combine different methods.

Filtration removes particles, sediment, rust, and visible impurities.

Activated carbon helps remove chlorine, chloramine, and unwanted taste or odor.

Water softening reduces scale risk in pipes, boilers, heat exchangers, and brewing equipment.

Reverse osmosis removes most dissolved minerals and gives the brewer a cleaner base.

pH adjustment helps the mash stay in the correct range for enzyme activity and better extraction.

Each step has a specific role, and together they create more stable brewing water.

A good water treatment system is easier to manage when the team understands what each step is doing.

The filter is not there just because the system needs a filter.

The carbon bed is not there just because it looks technical.

Each part protects the beer, the equipment, or both.

When operators understand this, maintenance becomes more logical and mistakes are easier to prevent.

Well Water Treatment for Breweries

Breweries that use well water often need a stronger pre-treatment plan.

Well water can contain iron, manganese, sediment, bacteria, nitrates, hardness, and high TDS.

These elements can affect taste, color, equipment life, and brewing consistency.

Iron and manganese may create metallic flavors or staining.

Hardness can increase scale inside pipes, boilers, and heat exchangers.

For this reason, well water should be tested carefully before it enters the RO system or the brewhouse.

A good treatment setup may include sediment filtration, iron and manganese removal, carbon filtration, softening, UV disinfection, and reverse osmosis.

Well water can look clean and still create problems in the brewery.

The issue is not always visible dirt.

Sometimes it is a metallic note, a slow buildup of scale, or a seasonal change that makes the beer behave differently.

Testing well water regularly helps the brewer catch these problems before they reach the mash tun.

Carbon Filtration Before RO

Carbon filtration is often used before reverse osmosis in brewery water treatment.

Its main role is to remove chlorine, chloramine, and other chemicals that may affect beer flavor or damage the RO membrane.

This step is especially important when the brewery uses municipal water.

Even small amounts of chlorine can create unwanted flavors in beer.

Chlorine can also reduce membrane life and increase maintenance costs.

For this reason, carbon filtration should be checked and replaced on schedule.

The carbon filter is a quiet part of the system, but it does important work.

If it stops working well, the brewery may not notice immediately.

The water still looks clear.

But chlorine can move forward, affect the beer, and slowly damage the RO membrane.

A simple maintenance schedule for carbon filters can prevent many expensive problems.

Engineering and Sizing Your System

Choosing the right capacity means calculating your peak daily water demand.

A custom brewery ro system needs a clear view of your brewing, cleaning, and packaging schedule.

A system is rated by its daily output, usually in gallons per day under ideal temperatures.

Membrane output drops as water gets colder in winter, so size the system for worst-case cold water.

A commercial floor also needs a water-to-beer ratio of at least four to one, for rinsing, yeast washing, and cleaning.

Undersizing this asset creates severe bottlenecks, forcing your crew to wait hours for the tank to refill.

To review water-quality benchmarks, see Wikipedia: Water Quality.

Water Analysis Before System Design

Before choosing a brewery water treatment system, the brewery should start with a complete water analysis.

This analysis should check hardness, alkalinity, TDS, iron, manganese, chlorine, chloramine, microbiological risk, and any local contaminants.

Without these data, it is difficult to choose the right equipment.

A brewery may need sediment filtration, activated carbon, softening, RO, UV disinfection, or a combination of these stages.

The system should be designed around the source water, the beer styles, and the daily production volume.

Buying a water treatment system without testing the water first is like writing a recipe without knowing the ingredients.

Two breweries can have the same brewhouse size but completely different water problems.

One may fight hardness and scale.

Another may fight chlorine, iron, or seasonal changes.

The analysis tells the team what the real problem is before money is spent on equipment.

Source Water Changes the Treatment Strategy

Not all source water behaves in the same way.

Municipal water, well water, spring water, and surface water can contain very different levels of minerals, organic matter, hardness, alkalinity, iron, manganese, chlorine, and microorganisms.

For this reason, a standard system is not always the best solution.

The treatment strategy should be adapted to the source water.

A well water brewery may need iron and manganese removal before RO.

A municipal water brewery may need strong carbon filtration to remove chlorine and chloramine.

A surface water source may require more attention to turbidity and microbiological safety.

A brewery cannot assume that water is simple just because it looks clean.

Clear water can still contain minerals, chlorine, metals, or other compounds that affect brewing.

This is why two breweries using the same recipe can get different results.

The recipe is the same, but the water behind it is not.

Environmental Sustainability and Effluent

A high-capacity plant carries real environmental duties and strict municipal rules.

The byproduct of membrane separation is a concentrated reject stream holding all the solids stripped from the source water.

Managing this stream needs a plan for brewery wastewater treatment to avoid surcharges, penalties, and legal trouble.

Advanced plants divert this concentrate into storage and reuse it for floor washdowns, boiler feed, or cooling make-up.

The high-pH and low-pH cleaning cycles must also be neutralized before they leave the facility.

Poor effluent management can overwhelm the local treatment plant and trigger cease-and-desist orders.

To study industrial discharge and compliance, see Wikipedia: Industrial Wastewater Treatment.

Managing the Brewery Wastewater Stream

In breweries, the wastewater stream can hold water from cleaning, rinsing, brewing, and packaging.

Its amount and makeup change with the daily production volumes.

When production rises, the brewery also makes more high strength wastewater, with more sugars, yeast, grain particles, and other organic matter.

This water must be controlled carefully, because it can have a high biological oxygen demand.

A high oxygen demand BOD and high total suspended solids can overload the local treatment plant.

Many breweries use reverse osmosis RO for their brewing water, but they must still manage the waste side with the same care.

Water Treatment and Energy Savings

Water treatment also has a direct impact on energy costs.

When boiler feed water is properly treated, the boiler works with less scale, less corrosion, and better heat transfer.

In breweries that use steam for mashing, boiling, cleaning, or pasteurization, this can reduce fuel consumption and lower maintenance costs.

Clean and stable water helps the whole utility system work more efficiently.

This means that water treatment protects both beer quality and the brewery’s operating budget.

Energy savings in a brewery often start with small technical choices.

A boiler with scale does not just look like a maintenance issue.

It uses more energy every day.

A clogged heat exchanger slows down production.

A poorly treated water loop creates problems that the brewing team feels later in the schedule.

Good water treatment keeps the process smoother and less stressful.

Structural Design of the Processing Skid

A dependable water treatment for brewery setup needs industrial parts on a rigid, vibration-damped frame.

The layout should use a stainless steel skid that holds the pre-filters, the high-pressure pump, and the pressure vessels.

All high-pressure lines should be welded AISI 316L stainless steel or high-density thermoplastic that can take the hydraulic force.

Avoid low-grade PVC or braided hoses on high-pressure loops, because they can rupture and leach plasticizers into the water.

Digital flow meters on the permeate and concentrate lines let operators watch the recovery balance in real time.

Pressure gauges before and after each stage help you quickly find clogged filters or failing seals.

To study sanitary design and fluid hygiene, see Wikipedia: Sanitary Engineering.

Ion Balance, pH, and Fermentation

The final mineral profile of your water strongly affects your yeast health during fermentation.

Mastering brewing water chemistry means understanding how mineral ions interact with yeast and the mash.

Calcium is very important: it helps yeast settle, improves protein removal in the boil, and stabilizes the mash enzymes.

Magnesium is a needed co-factor for yeast, but too much creates a sharp, bitter taste.

Bicarbonate must be controlled, because its buffering keeps the mash and wort pH from reaching the right targets.

Starting from a fully demineralized base, your team can dose exact amounts of gypsum and calcium chloride to tune the fermentation.

To study yeast function and fermentation, see Wikipedia: Fermentation.

Residual Alkalinity and Mash Control

Residual alkalinity is an important part of brewing water chemistry.

It describes how much alkalinity remains in the water after calcium and magnesium have reacted with bicarbonates.

If residual alkalinity is too high, the mash pH may rise above the ideal range.

This can reduce enzyme activity and create rougher flavors.

Brewers can lower residual alkalinity by using RO water, blending treated water, using dealkalisation, or adding brewing acids.

Controlling residual alkalinity helps the brewery build a more stable mash and a cleaner final beer.

Residual alkalinity sounds technical, but the idea is simple.

Some water pushes the mash pH upward.

If the brewer does not control it, the beer can become dull, harsh, or less balanced.

Once the team understands this, water treatment becomes less mysterious.

It becomes one more tool to make the same beer taste the same way every time.

Building Style-Specific Profiles from Blank-Slate Water

Every classic beer style grew out of the local groundwater in its region of origin.

To recreate those profiles in a modern plant, you build a detailed ro water profile for each brand.

For example, a Czech Pilsner needs near-zero minerals for a soft mouthfeel and a gentle hop character.

An English Pale Ale needs a mineral-rich profile with calcium sulfate to sharpen the hop bitterness.

With a high-efficiency membrane, your team can move from a soft Pilsner on Monday to a hard Burton profile on Tuesday.

This flexibility lets one plant make a wide range of excellent beers with no geographic limits.

To explore global beer styles, see Wikipedia: Beer.

Procurement and Vendor Evaluation

Choosing how to buy your water assets means balancing startup capital against long-term maintenance.

Browsing verified equipment vendors helps you find reliable parts at lower upfront cost.

Buying used equipment from closed operations can save thousands, freeing money for packaging machinery.

But used parts need caution: hidden cracks in pump housings or fouled membranes can cause sudden failures.

New custom systems come with warranties, technical support, and modern wiring that meets local code.

A common strategy is to buy a new core filtration skid while sourcing used storage tanks.

Whatever path you choose, verify the integrity of every liquid-contact surface to prevent contamination later.

Practical Criteria for Choosing an RO System

When choosing an RO system, the brewery should not look only at the purchase price.

The system must match the real daily production volume.

It must also fit the available floor space, the target water profile, the existing brewhouse layout, and the cleaning schedule.

A small brewery may need a compact RO skid with a storage tank to cover peak demand.

A larger brewery may need a high-capacity system that can produce treated water continuously during brewing, cleaning, and packaging.

Energy use, maintenance access, and automation should also be considered before installation.

The best RO system is not always the biggest one.

It is the one that fits the way the brewery actually works.

If the team brews early in the morning and cleans tanks in the afternoon, the system must support that rhythm.

If packaging runs on specific days, the water demand changes again.

A good design follows the production schedule, not just the brochure capacity.

Production Facility Infrastructure Matrix

Choosing your machinery means balancing upfront cost against daily output.

Here are the common equipment tiers.

Here is a micro pilot / nano system:

[Micro Pilot Nano System]
   ├──► Pump: single-phase centrifugal
   ├──► Daily output: 500 to 1,500 gallons
   └──► Best for: recipe testing and research labs

Here is a boutique craft skid:

[Boutique Craft Skid]
   ├──► Pump: high-efficiency multi-stage
   ├──► Daily output: 2,000 to 5,000 gallons
   └──► Best for: neighborhood taprooms and brewpubs

Here is an expanded mid-size platform:

[Expanded Mid-Size Platform]
   ├──► Pump: heavy-duty industrial hydraulic
   ├──► Daily output: 6,000 to 15,000 gallons
   └──► Best for: high-volume taprooms and local wholesale

Here is an industrial production skid:

[Industrial Production Skid]
   ├──► Pump: multi-array, multi-pump, automated
   ├──► Daily output: 20,000+ gallons
   └──► Best for: regional distribution and automated canning

Metallurgical Integrity and Clean-In-Place

The reactions between your water, cleaning chemicals, and tank walls affect your product’s shelf life.

Water purification vessels should be built from high-grade stainless steel, usually AISI 304 or acid-resistant AISI 316L.

These alloys have high chromium and nickel, which form a passive oxide layer that protects the metal.

This barrier guards your tanks against cleaning acids, high-chloride water, and strong mineral concentrations.

To stop bacteria from taking hold, the inner steel must be polished to a smooth, low-roughness finish.

Rough patches, weld lines, or scratches can hide residue and shelter bacteria from cleaning.

So system maintenance must follow strict sanitizing loops.

Facility Safety and Wastewater Frameworks

Running an industrial water system means balancing high pressure and chemicals with strict local laws.

The high-pH and low-pH cleaning rinses cannot flow straight into municipal sewers.

To meet local rules, modern plants install a dedicated wastewater neutralization system.

It collects the spent cleaning solutions in a tank and uses probes to balance the pH automatically.

Your floor crew must also wear full protective gear, including chemical-resistant suits, gloves, and face shields.

By making safety and compliance a priority, you protect your staff and keep the plant running without legal delays.

Final Summary and Growth Blueprint

Choosing your core setup takes a clear view of your sales goals, space, and capital.

If you run a taproom where beer sells on-site, a compact automated skid is an affordable path.

But if you plan to grow wholesale across states, a fully integrated industrial multi-membrane skid is essential.

Check your floor weight limits, balance your chemicals, and enforce strict validation loops.

By matching the equipment to your volume and treating your water system as a key partner, your team will deliver excellent beer.
