Read Time: ⏱️ 10 minutes | By: Luca
Section 1: The Critical Necessity of Definitive Sanitation Verification
Running a commercial brewery means proving that your cleaning actually works.
For a growing brewery, cleaning tanks by hand quickly becomes a bottleneck.
To protect your beer on long trips to market, a strict routine for cip cleaning validation is an essential step.
Every beer you brew depends on clean equipment to keep its flavor until it reaches the glass.
Managers need solid, scientific proof that their cleaning cycles run exactly as intended.
This guide breaks down how validation works, the layouts involved, and the costs to weigh.
Whether you supply a small taproom or run high-speed packaging lines, your cleaning choices shape your daily labor cost.
In the food and beverage industry, cleaning validation protocols help make sure that processing equipment is safe, hygienic, and ready for production.
These protocols confirm that the cleaning processes can remove residues, reduce the risk of cross contamination, and leave the equipment in an acceptable state before the next batch.
During CIP validation, the team defines the right contact time, temperature, flow rate, and detergent strength needed to clean equipment correctly.
They may collect rinse samples and test them with specific analytical methods to check for product residues or chemical residues.
The results are compared with clear acceptance criteria and written up in a validation report.
If the results do not meet the limits, the brewery must take corrective actions, adjust the cleaning, and repeat the test if needed.
Validation and Routine Verification
Cleaning validation and routine verification are not the same thing.
Validation is a one-time, in-depth study that proves a cleaning process works, using several test runs and full documentation.
Routine verification is the day-to-day checking that confirms each cycle still meets the standard, using quick tests like conductivity or a rinse check.
Validation proves the process is capable; verification proves it stays that way over time.
A good program uses both: validate once thoroughly, then verify every cycle.
Defining Acceptance Criteria Before Testing
Set your acceptance criteria before you start testing, not after.
Acceptance criteria are the clear limits a clean must meet, like a maximum residue level or ATP score.
Deciding these limits up front keeps the result objective and stops anyone from bending the standard to pass.
The criteria should be based on food-safety rules and your own product needs.
With clear limits set in advance, a pass or fail is simple and honest.
Section 2: Fluid Dynamics and Oxygen Protection in Clean-In-Place Protocols
Keeping your beer clean means controlling the flow of cleaning fluid inside the tanks and lines.
Oxygen and biological soils are the enemies of packaged beer, causing contamination that destroys aromas.
To protect the flavor, a good setup uses a sealed process called clean in place inside the tanks and pipes.
Instead of taking equipment apart, the system locks onto the process lines and runs a multi-stage cleaning program.
It pushes cleaning solution through the lines at the right pressure and velocity to scrub the interior tank walls.
The balanced flow reaches every surface, so the whole vessel gets cleaned without manual scrubbing.
To read about how oxygen and soils affect flavor, see the resources from the Brewers Association.
Section 3: Digital Management Frameworks and Electronic Parameter Regulation
Moving away from manual cleaning means deploying a modern automated CIP system on your cellar floor.
The core system uses high-pressure pumps, pneumatic valves, steam heat exchangers, and digital sensors.
A master PLC panel watches temperature, pressure, and chemical concentration in real time during the wash.
If the pressure drops anywhere in the fluid path, the automation stops the loop and triggers an alarm.
Automated software removes human error from daily cleaning, preventing accidents and ruined batches.
By trusting the software to control the flow, you make sure every loop runs exactly as designed.
To read about yeast and line hygiene, see the journals from the American Society of Brewing Chemists (ASBC).
Calibrating Conductivity and Chemical Sensors
The sensors that guide a CIP cycle must be calibrated regularly.
Conductivity sensors measure how much chemical is in the solution, which sets the wash strength and confirms the final rinse is clean.
If a sensor drifts out of calibration, the system can under-clean or leave chemical behind without anyone noticing.
Calibrate the conductivity and chemical sensors on a set schedule against a known standard.
Well-calibrated sensors are what make automated validation trustworthy.
Monitoring the Spray Head During Every Cycle
The spray head must actually turn and spray during every cycle.
If a rotary spray head jams or clogs, part of the tank goes uncleaned, even if the pumps and chemicals are fine.
Sensors can confirm the spray head is rotating and that flow and pressure are correct.
Monitoring the spray head every cycle catches a silent failure before it ruins a batch.
This simple check closes a common gap in tank cleaning.
Section 4: Microbiological Quality and the Science of Process Loop Sanitation
To protect your beer’s flavor across long supply chains, you need tight biological control.
The cip brewing process works by combining strong mechanical flow with active cleaning chemicals.
When wort or juice moves across steel, it leaves organic soils that shelter microbes.
If those soils are not fully dissolved, bacteria like Lactobacillus can take hold.
These infections cause off-flavors, cloudiness, and pressure spikes that hurt your reputation.
An automated system drives cleaners deep into hard-to-reach spots like valve seats and welds.
The high-velocity flow shears the organic films off the walls and sweeps them to the drain.
To review wash-line design standards, see the European Hygienic Engineering & Design Group (EHEDG).
Demonstrating Repeatability with Multiple Runs
One good clean does not prove a process works.
Validation requires several runs, usually three, that all meet the acceptance criteria.
Passing three times in a row shows the process is repeatable, not just lucky once.
Each run should use the same recipe and be fully documented.
Repeatable results are what turn a single good clean into a validated process.
Riboflavin Testing During FAT and Commissioning
Riboflavin testing checks that the spray coverage reaches every surface.
Riboflavin is a food-safe fluorescent dye sprayed onto the inside of a tank or line.
After a cleaning cycle, a UV light shows any spots where the dye remains, meaning the spray missed them.
This test is often done during the factory acceptance test (FAT) and commissioning of a new system.
Riboflavin testing proves the spray pattern covers the whole vessel before real production starts.
Direct and Indirect Sampling
Validation uses two kinds of sampling: direct and indirect.

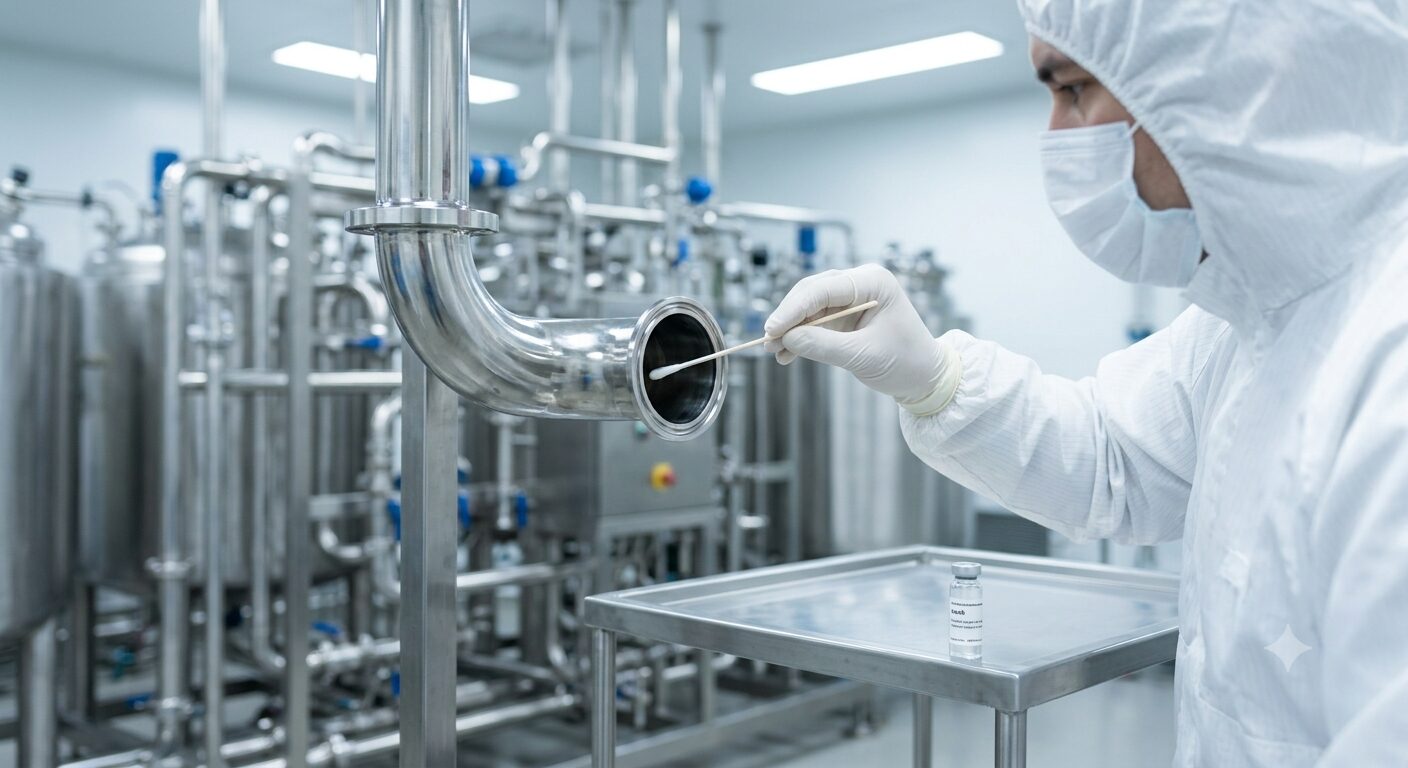

Direct sampling means swabbing a surface to measure residue right where it is.
Indirect sampling means testing the final rinse water for leftover residue or chemicals.
Swabs are good for known hard-to-clean spots, while rinse samples check the whole loop.
Using both methods gives a fuller picture of how clean the equipment really is.
Testing the Incoming and Final Rinse Water
Test both the incoming water and the final rinse water.
The incoming water sets a baseline, so you know what was already in the water before cleaning.
The final rinse water shows whether any residue or chemical is left after the cycle.
Comparing the two tells you the cleaning actually removed the soils, not just moved them around.
Testing both ends of the rinse makes your validation results far more reliable.
Section 5: Analyzing Manual Scrub Protocols vs Automated Configurations
To plan your weekly maintenance, it helps to compare the real costs of each method.
Running the numbers on a manual cleaning vs cip brewery setup helps directors plan for growth.
Manual scrubbing needs constant labor, wastes a lot of water, and exposes your crew to strong chemicals.
It also cannot safely clean the high walls of large modern tanks.
A sealed automated loop uses far less chemical because it recirculates the solution for a set time.
By cutting tank turnaround from six hours to about forty-five minutes, you can run more batches per week.
That jump in tank use lets a growing brand scale up without buying more fermentation tanks.
Section 6: Mobile Fluid Dynamics for Boutique Production Floors
For small brewpubs, labs, or startups, a big fixed cleaning skid may not fit the space or budget.
A flexible, mobile cip cart lets your crew roll professional cleaning power to any tank on the floor.
These carts have two compact stainless steel tanks, a supply pump, and electric heating elements.
Your team can move the cart through tight tank rows and connect hoses to make a closed cleaning loop.
This lets a small brewery automate tank washing without a fortune in fixed pipework.
A built-in return pump keeps the solution flowing out of the tank base, so it does not pool.
With a heavy-duty mobile cart, a small venue gets industrial-grade cleaning on a small budget.
Section 7: Chemical Thermodynamics and Active Formulation Selection
A truly clean surface needs the right brewery cip chemicals for each stage of the wash.
The main cleaning phase uses a hot caustic (sodium hydroxide), usually heated to around 140°F to 160°F.
This hot caustic breaks down proteins, hop resins, and dead yeast stuck to the steel.
The next stage uses a phosphoric or nitric acid wash to dissolve minerals and beer stone.
The final phase uses a sanitizer, like peracetic acid, to kill any remaining microbes.
Keeping the chemical strength and temperature balanced cleans fully without damaging the steel.
For safe wash temperatures and staff safety, the Master Brewers Association of the Americas (MBAA) has full cellar safety guides.
Section 8: Dissecting the Elements of a Complete Brewery Packaging System
A high-efficiency cleaning floor combines several sub-systems into one workflow.
A commercial brewery cip system is more than just pumps and pipes.
It relies on chemical dosing pumps, steam boilers or heaters, valves, and conveyors.
A master PLC panel watches temperature and pressure in real time and adjusts the flow.
If a tank shows an odd reading, the software flags it and pauses the cycle.
That constant checking keeps a bad cycle from slipping through and protects the batch.
To balance automation with quality, see the technical archives of the Siebel Institute of Technology.
Section 9: Standard Operating Procedures and Plant Floor Calendars
A strong brand organizes its daily cleaning into a clear checklist of brewery cleaning procedures.
This plan lists the exact chemical strength, water volume, and cycle time for every vessel.
Bright tanks, wort chillers, yeast brinks, and fermenters each need their own wash profile.
For example, a kettle needs a long, hot caustic wash for caramelized sugars, while a bright tank needs a gentler cycle.
Your crew should log every cycle, noting temperature, chemical strength, and final validation scores.
Good records help managers spot bottlenecks and trace any quality issue fast.
For safe layout and piping standards, see the frameworks from the Deutscher Brauer-Bund.
When a CIP Process Must Be Revalidated
A validated CIP process does not stay valid forever.
You should revalidate whenever something changes, like a new chemical, a new tank, a different soil, or a modified cycle.
A big change can shift how well the clean works, so the old proof no longer applies.
Set clear triggers for revalidation, and record every change that could affect cleaning.
Revalidating after changes keeps your cleaning proof honest and up to date.
Investigating a Failed Validation Result
A failed validation is useful information, not just a setback.
When a test fails, find the root cause before you re-run it.
Common causes include a clogged spray head, weak chemical strength, too short a contact time, or a fouled sensor.
Fix the real problem, note it in the validation report, then repeat the test to confirm the fix.
Investigating failures properly makes your whole cleaning process stronger.
Section 10: Plant Scaling Milestones and Fixed Infrastructure Upgrades
As a brewery grows, moving from mobile carts to a permanent brewery cip skid becomes essential.
A fixed skid has several large stainless steel tanks, dosing pumps, and dedicated steam heating.
These systems run several cleaning loops at once across different areas of the plant.
You can wash a big cellar tank while sanitizing your canning line in another room.
A permanent skid saves floor space, lowers chemical-handling risk, and gives full control of your utilities.
Treating the skid as a core part of your production engine lets your brand scale smoothly.
To study sanitation and validation methods, see the archives of the Institute of Brewing & Distilling (IBD).
Section 11: System Infrastructure Performance Matrix
Choosing your core cleaning gear means balancing upfront cost against daily labor.
The table below shows the capabilities of different equipment tiers:
| System Engineering Tier | Tank Count & Capacity | Primary Heating Integration | Target Facility Output |
| Mobile Two-Tank CIP Cart | 2 x 50 Gallon Tanks | Internal Electric Immersion Elements | Nano Breweries & Taprooms under 1,500 BBL/Year |
| Modular Multi-Tank Skid Layout | 3 x 200 Gallon Tanks | Dedicated Shell-and-Tube Steam Exchanger | Microbreweries & Regional Hubs up to 20,000 BBL/Year |
| Fully Automated Fixed Assembly | 4+ x 1000 Gallon Tanks | Multi-Zone Steam Loop with Direct Injection | Industrial Production Plants over 50,000 BBL/Year |
Section 12: Metallurgical Standards and Bio-Security Washing Cycles
The alloy and surface finish of your tanks affect shelf life and cleaning costs.
Commercial tanks should be built from quality stainless steel, usually 304 or acid-resistant 316L.
These alloys hold chromium and nickel, which form a self-healing passive layer on the surface.
That layer protects the tank from cleaning acids, high-chloride water, and the acidity of fruit and hops.
To keep bacteria out, the inside steel should be polished very smooth.
Rough spots, weld lines, or scratches can shelter wild yeast from a standard wash cycle.
With automated cleaning, your team can focus on making great, consistent beer.
For staff safety advice, teams also review data from the National Restaurant Association.
Section 13: Facility Safety and Environmental Compliance Frameworks
Running an industrial cleaning system means handling strong chemicals under strict local laws.
The high-pH caustic and low-pH acid used on the floor cannot go straight into the city sewer.
To follow water safety laws, modern plants install a wastewater neutralization system.
It collects the spent cleaning solutions in a tank and uses probes to balance the pH before discharge.
Your floor crew must also wear full protective gear: chemical suits, heavy gloves, and face shields.
By putting safety and compliance first, you protect your staff and avoid legal delays.
Section 14: Final Summary and Operational Sanitation Blueprint
Choosing your setup takes a clear view of your sales goals, floor space, and budget.
If you run a taproom where beer sells fast on-site, a compact mobile cart is an affordable path.
If you plan to expand wholesale across several states, a fully automated fixed skid is essential.

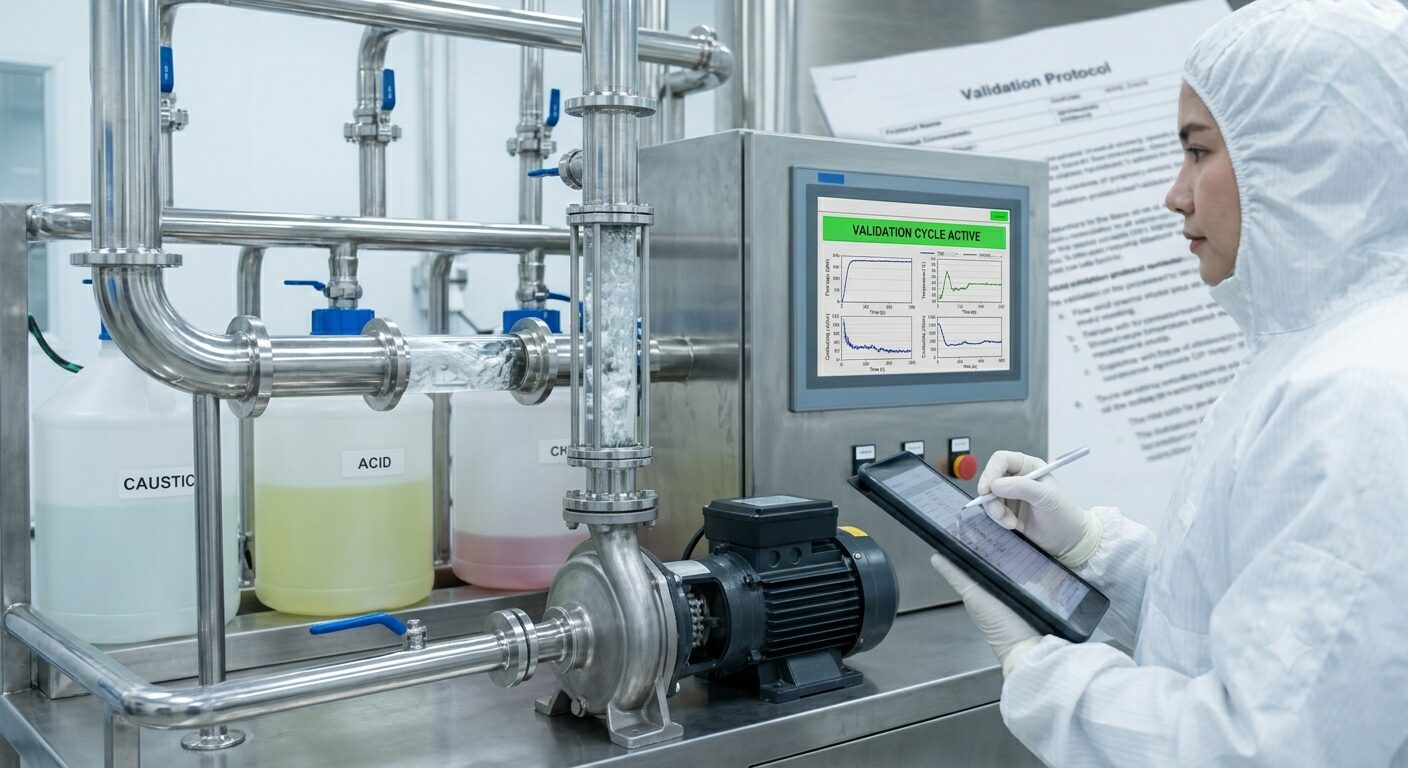

Check your building’s floor weight limits, balance your chemical strengths, and enforce strict validation loops.
By matching the gear to your volume and treating your cleaning system as a key partner, your team can deliver excellent beer to the market.
Contact Us
