Section 1: The Strategic Growth Step for Expanding Taprooms
Moving up to mid-size production is an exciting milestone for a brewpub or local taproom.
When your sales show that your current tanks can no longer keep up with demand, adding capacity is the next step.
Buying a commercial 10 bbl fermenter gives a growing brand the extra volume to win local wholesale accounts and expand packaging.
A single 10-barrel tank holds exactly 310 US gallons, or about 1,170 liters, of fermenting liquid.
This size lets a cellar double the output of a 5 BBL brewhouse with back-to-back brew days.
But making this investment well means looking past raw capacity to the engineering inside the tank.
Finding the Best fermenter types for your site means matching your beer styles to the exact pressure and cooling limits of the steel.
This guide breaks down the structure, the utility hookups, and the cleaning loops you need to add a 10 BBL tank safely.
Section 2: Conical Bottom Tanks vs. Pressure Unitanks
When shopping for mid-size tanks, buyers must choose between standalone low-pressure Conical fermenters and high-pressure unitanks.
A low-pressure fermentation tank handles primary fermentation well, using a steep 60-degree cone to collect the sediment.
As the yeast drops out, it slides into a tight plug at the bottom point, where it is easy to harvest or dump.
But because these low-pressure tanks cannot hold high gas pressure, you cannot use them to force-carbonate finished beer.
That limit forces your team to move the beer to a separate bright tank for conditioning and carbonation.
Understanding the labor and equipment trade-offs of this split brite tank vs fermenter setup helps you plan your daily cellar schedule.
A high-pressure unitank is built with reinforced steel plates and support bands, so it can safely handle working pressures up to 30 PSI.
Working under pressure lets you do primary fermentation, yeast harvesting, cold-crashing, and force-carbonation all in one sealed tank.
The 70-Degree Cone Option
Not every 10 bbl fermenter uses the standard 60-degree cone described in most commercial specifications.
Some compact tanks use a steeper 70-degree interior cone to support sediment movement while reducing the floor space occupied by the lower section.
A steeper cone may improve the movement of yeast and trub toward the bottom outlet, but it can also change the total tank height and available cellar clearance.
The brewery should therefore compare cone angle together with tipping height, yeast-dump performance, leg length, and the position of the cooling jacket.
The 60-degree cone is common, but it is not the only design available.
A 70-degree cone can help yeast and sediment move toward the dump valve while keeping the lower section relatively compact.
The brewery should still check how this shape affects tank height, installation, and access beneath the vessel.
Vacuum and Pressure Relief
A 10 bbl fermenter must be protected against vacuum as well as excessive internal pressure.
Negative pressure can develop during rapid cold crashing, tank draining, a hot CIP cycle followed by a cold rinse, or when caustic absorbs carbon dioxide remaining inside the vessel.
A combined pressure-and-vacuum relief valve opens when the tank moves outside its safe operating range.
The valve must be cleaned, inspected, and function-tested regularly because dried beer, yeast, or chemical residue can prevent it from operating correctly.
A tank strong enough to hold pressure can still collapse when the pressure inside becomes too low.
Cold beer contracts, draining removes volume, and cleaning chemicals can absorb the CO₂ left inside the vessel.
A working vacuum-relief valve protects the shell from being pulled inward by the surrounding atmosphere.
Section 3: Sizing Milestones and Brewhouse Matching
Building an efficient cellar means matching your fermentation tank sizes to your hot-side brewhouse capacity.
For labs, small startups, or recipe teams, a compact 1 bbl fermenter is the standard choice for pilot testing.
These small pilot tanks let you check yeast performance and try new ingredients without risking a large amount of raw material.
As a business grows into a taproom, operators usually step up to a larger 5 bbl fermenter to supply their draft lines.
For startups launching with local draft accounts, a 7 bbl fermenter is the classic entry-level production size.
Moving up to a 10 bbl fermenter gives expanding brands the extra volume to support packaging lines, like mobile canning runs.
When local demand keeps climbing, upgrading to a 15 bbl fermenter or a heavy-duty 30 bbl fermenter improves labor efficiency.
Large regional packaging plants often move to a massive 90 bbl fermenter to reach true economies of scale.
The mash tun and the brew kettle are two essential vessels in the brewing process.
In the mash tun, crushed grains are mixed with hot water to extract fermentable sugars and create wort.
After lautering, the wort is transferred to the brew kettle, where it is boiled with hops to develop bitterness, aroma, and flavor before fermentation.
Pairing a 10 BBL Brewhouse With a 20 BBL Fermenter
A 10 bbl brewhouse does not always need to be paired exclusively with 10 bbl fermenters.
For high-volume flagship beers, two brewhouse turns completed within approximately twenty-four hours can fill one 20 bbl fermenter.
One larger vessel may cost less and occupy less floor space than two separate 10 bbl tanks, while also requiring only one complete cleaning cycle.
However, two smaller fermenters provide greater recipe flexibility and prevent the brewery from committing twenty barrels to every production run.
A 10 bbl fermenter is ideal when one brew should remain one independent batch.
For the beers produced every week, a 20 bbl tank filled with two consecutive brews may use space and cleaning labor more efficiently.
The best cellar often combines both sizes instead of forcing every product into the same production model.
Section 4: Mechanical Specs and Cooling Demands
A commercial 10 BBL tank needs a strong utility setup because larger volumes make a lot of heat during active fermentation.
The tank should have multi-zone laser-welded dimple jackets connected to an automated propylene glycol chiller.
Dimple jackets are efficient because they force the chilled coolant into a turbulent flow across the steel surface.
This turbulence breaks up the still boundary layer, giving fast heat transfer and preventing hot spots inside the tank.
To keep room heat from affecting your fermentations, the tank body should be wrapped in high-density polyurethane insulation.
All ports, sample valves, and pressure devices should use sanitary tri-clamp fittings to remove threaded pockets where bacteria can hide.
The inside steel should be polished to a mirror finish with a Roughness Average (Ra) of 0.8 micrometers or less.
This smooth finish makes automated cleaning work well and stops wild yeast from forming biofilms inside the tank.
Independent Glycol Circuits for Partial Batches
Independent glycol connections can make a 10 bbl fermenter suitable for partial batches.
When the tank contains only five or seven barrels, the upper cooling jacket may sit above the beer level and should not be activated.
Controlling the lower and upper jackets separately allows the brewery to cool the liquid without wasting energy or creating unnecessary ice formation inside an unused jacket circuit.
The thermowell, sample valve, racking arm, and lower cooling zone must also remain below the minimum planned working volume.
A 10 bbl tank does not always need to hold a full ten-barrel batch.
Separate glycol circuits allow the brewer to use only the jacket touching the beer.
This makes smaller seasonal or experimental batches possible without cooling an empty section of the vessel or risking problems in the upper jacket.
Sizing the Glycol Cooling Load
The glycol system should be sized according to the maximum simultaneous cooling demand of the cellar.
A general reference for a 10 bbl ale fermenter is approximately 0.8 to 1.2 refrigeration tons per active tank, with additional reserve capacity for cold crashing.
The final calculation must consider ambient temperature, beer starting temperature, insulation thickness, jacket surface area, piping losses, glycol concentration, and the required cooling time.
Cold-crashing several tanks together can create a much larger refrigeration load than simply maintaining normal fermentation temperature.
A chiller may hold every fermenter at its target temperature and still fail when two tanks begin cold crashing at the same time.
The brewery should calculate its busiest cooling period rather than an average production day.
Extra reserve also protects the process during hot weather and leaves room for future cellar expansion.
Section 5: Cross-Industry Uses and Flexible Cellaring
The core rules of temperature control, sanitation, and fluid transfer apply across all professional beverage sectors.

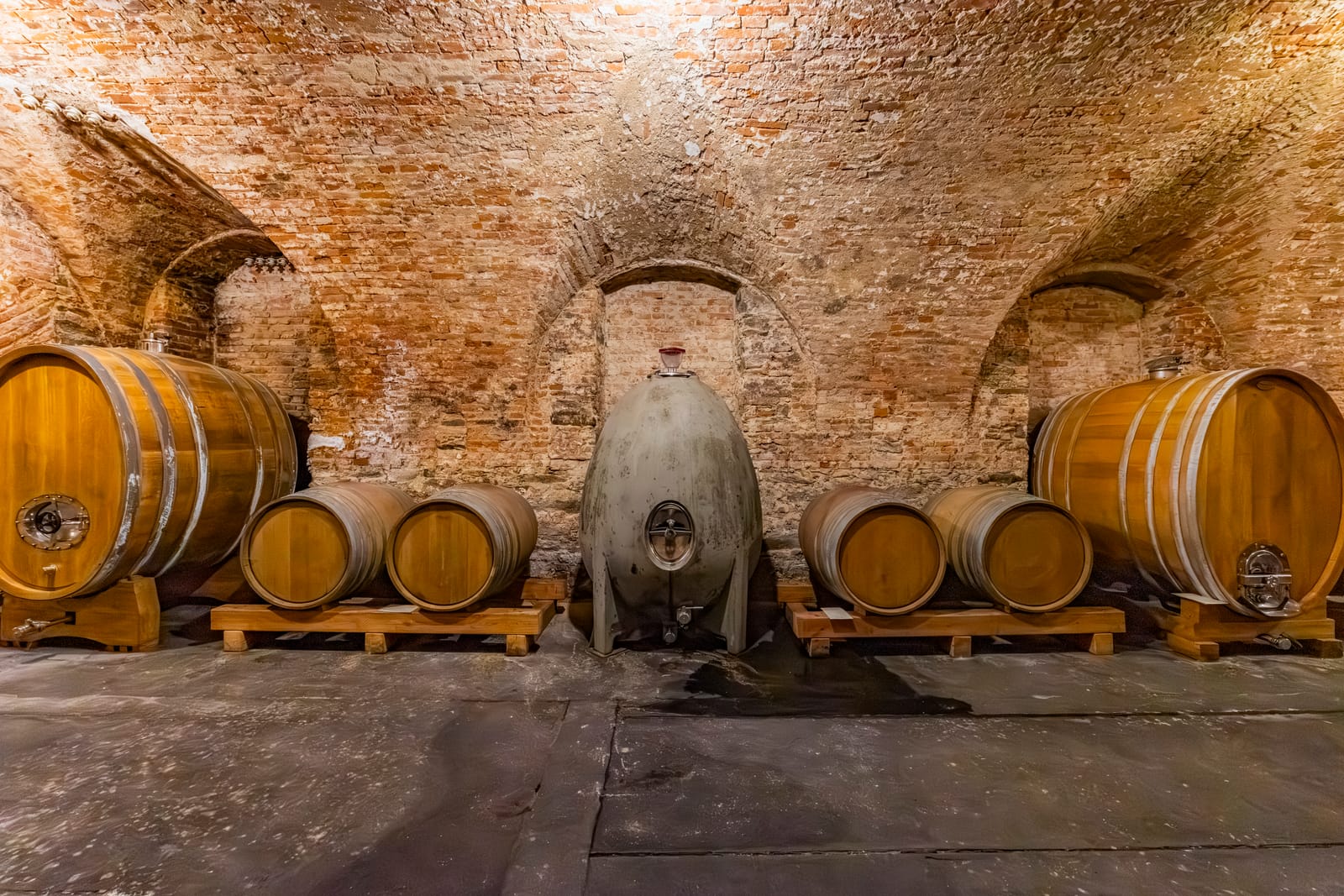

In the wine industry, a dedicated commercial WINE FERMENTER uses wide shapes to manage the floating cap of grape skins during red-wine maceration.
But white winemakers, cider producers, and mead makers often use vertical conical tanks that look exactly like standard beer gear.
This overlap lets microbreweries diversify their product lines by making small, niche drinks.
Setting up a flexible beer brewing fermenter for multi-beverage work means using very adjustable temperature control.
To study how different yeast strains react to changing tank shapes, teams read the technical manuals from the Siebel Institute of Technology.
Mastering these fermentation dynamics helps your team keep quality high across every style.
Section 6: Sanitation and CIP Efficiency
Perfect sanitation across your cellar is the single most important factor for protecting your brand and your shelf-life.
To clean these large tanks without hand scrubbing, plants use automated Clean-In-Place (CIP) loops.
The CIP setup uses a high-flow spray ball in the top dome to push cleaning fluid across every internal surface.
A standard CIP run starts with a fresh-water pre-rinse to knock off heavy yeast cakes and loose matter.
Next, a heated caustic (sodium hydroxide) solution is pumped through the loop at 60°C to 80°C to break down oils and proteins.
After a quick rinse, an acid wash of phosphoric and nitric acid dissolves hard minerals, like calcium oxalate scale.
To track how well the cleaning works, quality teams use automated ATP bioluminescence swabs to confirm sterility.
For advice on removing stubborn scale without scratching your polished steel, producers follow the manuals from the Brewers Association.
The Shadowless Side Manway
A shadowless side manway is welded into the tank without a deep internal collar or projecting pocket.
This design reduces hidden surfaces where yeast, hop debris, and cleaning solution can remain after a CIP cycle.
The side opening also gives technicians direct access for visual inspection, manual residue removal, weld checks, and maintenance when automated cleaning is not sufficient.
The gasket, hinge, sealing surface, and closure mechanism must be inspected carefully before the vessel is pressurized.
A spray ball can clean most of the vessel, but it cannot replace a clear view of the internal surface.
A shadowless manway reduces difficult crevices and gives the cellar team direct access when fruit, hops, or hardened krausen require additional attention.
It also makes weld and surface inspections much easier.
Section 7: Secondary Fermentation and Maturation
Managing your yeast across several generations is key to keeping raw-material costs low and fermentations consistent.
In a two-stage process, brewers move the green beer off the primary yeast cake into a dedicated secondary fermenter.
This secondary tank is great for long aging, wood-chip additions, or adding fruit and spices.
Moving the beer to a clean secondary tank keeps it off dead yeast for too long, which prevents rubbery autolysis off-flavors.
But a high-pressure unitank removes the need for a secondary transfer, letting you dump yeast straight out of the bottom cone.
By opening the lower valve, the team can purge trub and harvest healthy yeast without exposing the beer to air.
To study the biology behind yeast health and harvesting, managers read the journals from the American Society for Enology and Viticulture (ASEV).
Section 8: Metal Standards and Bio-Security
The exact alloy and inside finish of your tanks directly affect your shelf-life and your daily chemical costs.
Commercial tanks must be built from premium austenitic stainless steel, usually AISI 304 or acid-resistant AISI 316L.
These alloys have high levels of chromium and nickel, which form a self-healing, passive oxide layer on the surface.
This passive layer protects the tank from cleaning acids, high-chloride water, and the natural acidity of fruit and hops.
Any rough spots, weld lines, or scratches can shelter wild yeast and shield it from even a custom microbrewery fermenter cleaning run.
To meet strict international safety codes, your tank welds must follow industrial sanitary standards.
To set your wash temperatures and protect your staff, the Master Brewers Association of the Americas (MBAA) provides full safety guides for cellar work.
Documented Factory Quality Control
Factory quality control should be documented before a 10 bbl fermenter is shipped.
The main vessel and glycol jackets should undergo separate pressure tests, while sanitary welds should be inspected for cracks, incomplete penetration, rough areas, and trapped residue.
The buyer should request material certificates, pressure-test records, weld documentation, surface-finish information, and the tank serial number.
These records make it easier to identify manufacturing defects and support future warranty or inspection claims.
A polished tank can look perfect while a weak weld or leaking glycol jacket remains hidden behind the outer shell.
Written inspection and pressure-test records give the brewery evidence that the vessel was checked before delivery.
They also create a useful reference if a problem appears after installation.
Section 9: Tank Sizing and Structural Matrix
Picking the right tank size needs a close look at your space limits and your expected monthly package volume.
The table below outlines the physical numbers common to standard commercial cellar expansions:
| Vessel Sizing Category | Liquid Volume Capacity | Recommended Headspace Margin | Primary Production Application | Floor Weight Load Demand |
| Small-Scale Pilot Setup | 31 US Gallons (1 BBL) | 25% minimum headspace | Experimental prototyping and yeast propagation | Low (Can operate on heavy locking caster wheels) |
| Mid-Tier Production Core | 310 US Gallons (10 BBL) | 25% to 35% headspace | Small-scale wholesale distribution and packaging lines | Medium (Requires reinforced concrete floor pad) |
| Industrial Distribution Shell | 2,790 US Gallons (90 BBL) | 30% to 35% headspace | Mass regional packaging and automated canning runs | Extreme (Requires deep engineered concrete pilings) |
Section 10: Headspace Safety and Building Layout
Planning a cellar layout needs careful attention to your building’s real dimensions and its concrete limits.
Your tanks should always be bought in exact volume multiples of your brewhouse output to keep the workflow smooth.
Leaving enough empty space at the top of the tank, known as headspace or ullage, is a critical safety factor.
As yeast breaks down sugar, it makes a thick, rising layer of foam and protein called krausen.
If a tank is overfilled and lacks headspace, this foam can clog the relief valves and create dangerous unvented pressure.
For standard ales, a minimum of 25 percent headspace is recommended, while vigorous yeast strains may need up to 35 percent.
You must also check floor load limits, because a large full tank weighs several tons and needs thick reinforced concrete pads.
To keep hose connections safe and workflows clean, your design must follow the sanitary standards certified by the European Hygienic Engineering & Design Group (EHEDG).
Front-Mounted Valves for Tight Spacing
Port and valve placement affects how closely several 10 bbl fermenters can be installed together.
Front-mounted sample valves, racking arms, gauges, and product outlets allow operators to access the equipment from one working aisle.
This can reduce unused space between adjacent tanks and simplify hose routing, sampling, yeast dumping, and maintenance.
The layout must still preserve enough clearance to remove valves, open manways, connect CIP lines, and work safely around the vessel.
Tank diameter is only one part of the real cellar footprint.
When valves and fittings face several different directions, the brewery needs wider gaps around every vessel.
Grouping the main controls on the front allows a cleaner working aisle and makes daily cellar tasks easier to organize.
Lifting Ears for Safe Installation
A 10 bbl fermenter should include engineered lifting points when it must be moved or raised into its final position.
Lifting ears allow a qualified rigging team to attach approved equipment without wrapping chains or slings around cooling jackets, ports, or the external cladding.
The manufacturer should specify the empty tank weight, approved lifting method, center of gravity, lifting-point capacity, and whether a spreader bar is required.
The vessel must never be lifted while it contains beer, water, glycol, or cleaning solution.
Moving a large fermenter is not the moment to improvise with chains around the tank body.
Purpose-built lifting ears give the rigging crew safe connection points and help protect the jackets and outer shell from damage.
The manufacturer’s lifting instructions should reach the installer before the delivery truck arrives.
Section 11: Inline Probes and Automated Tracking
The beverage market is adopting digital systems, turning traditional cellars into connected, data-driven networks.
Traditionally, a cellar worker had to draw a sample from every active tank each day to check the sugar drop with a glass hydrometer.
This manual work takes labor hours, wastes product, and adds a small contamination risk every time the valve is opened.
To solve this, modern plants fit digital inline density sensors right into the walls of their tanks.
These smart sensors use continuous pressure data or sound frequencies to track the sugar drop in real time, sending alerts to the brewer’s phone.
If a batch slows down unexpectedly, the software warns the team early, so they can adjust the temperature before the fermentation stalls.
To balance this automation with classic flavor, teams consult the Australian Wine Research Institute (AWRI) to study how processing changes affect long-term aging.
Section 12: Summary and Investment Blueprint
Buying a new mid-size tank means balancing your distribution goals against your available space and your cash flow.
If your model is about serving fresh beer fast through taproom draft lines, standalone low-pressure conicals are an affordable entry point.
But if your goal is growing a wholesale canning brand across your city, a high-pressure 10 BBL unitank is well worth it.
Be sure to check your building’s floor limits, plan for plenty of headspace, and enforce strict automated CIP loops.
Compare the Complete Package, Not the Bare Tank
The quoted tank price should be checked against the complete list of included fittings and accessories.
A 10 bbl fermenter may require butterfly valves, clamps, gaskets, a sample valve, pressure gauge, relief valve, racking arm, blowoff assembly, dry-hop cap, CIP spray ball, thermowell, and carbonation stone before it can operate.
One current supplier lists a complete 10 bbl unitank at approximately $8,599.99, but freight, temperature controls, solenoid valves, glycol plumbing, installation, and commissioning may still be additional costs. (MoreBeer!)
Two tanks with similar advertised prices may include very different equipment.
One quotation may arrive ready to connect, while another still needs valves, gauges, clamps, a carb stone, and cleaning hardware.
Comparing the complete installed package is much more useful than comparing the bare stainless steel vessels.
By choosing the right tank design for your volume goals and treating your cellar as a vital partner, your team can deliver great beer to your market for years.
Contact Us
