Read Time: ⏱️ 10 minutes | By: Luca

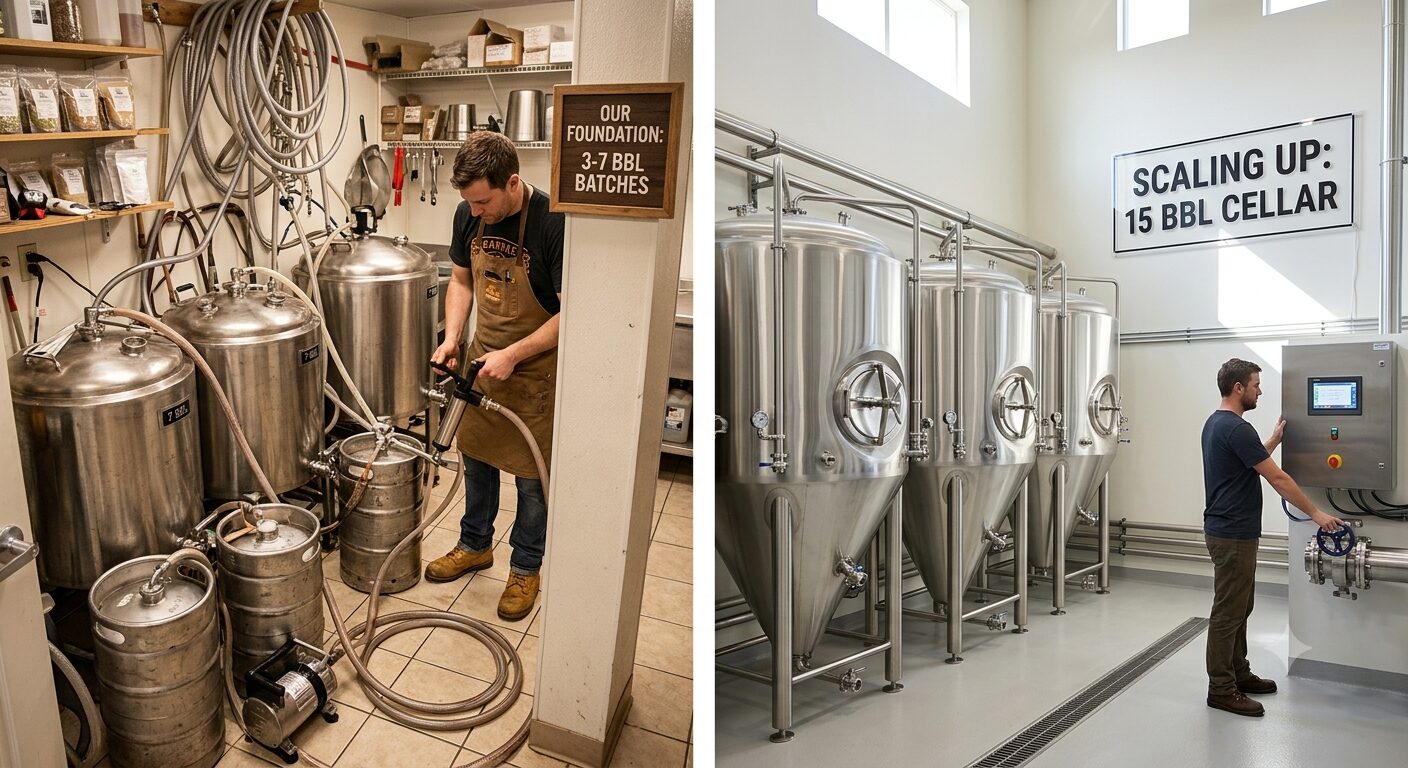

Section 1: The Milestone of Mid-Tier Expansion
Growing a small beverage business past the limits of a local taproom takes a real change in your cellar layout and equipment.
When your weekly sales show that your smaller setup can no longer keep up with distributor orders, your facility hits a bottleneck.

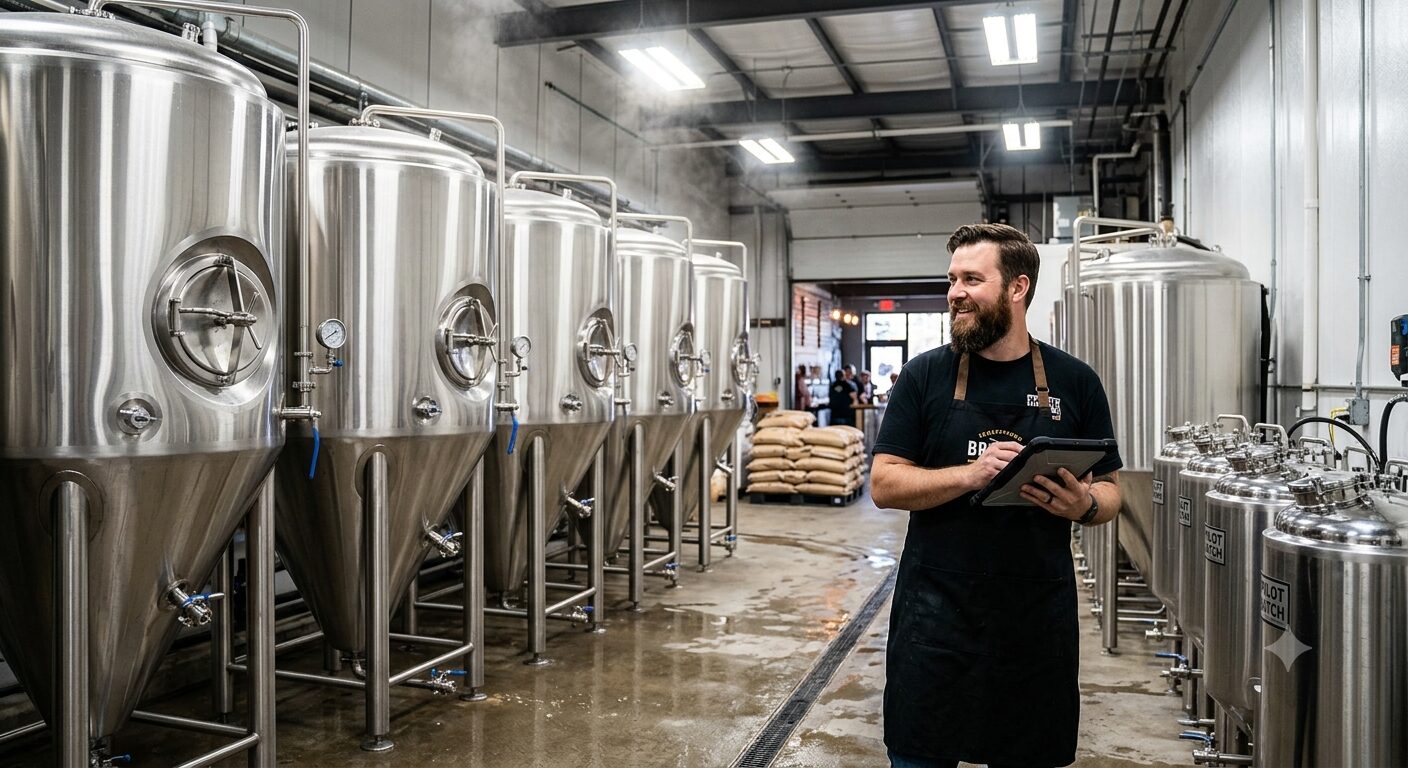

Investing in a commercial-grade 15 bbl fermenter is the logical next step for a business ready to expand its regional footprint.
A single 15-barrel vessel holds exactly 465 US gallons, or about 1,760 liters, of fermenting beer.
This size lets production teams combine several brewhouse batches into one cellar footprint, cutting down on labor hours.
Finding the Best fermenter types for this stage means matching your floor space to your temperature-control needs and delivery targets.
This guide breaks down the building needs, cooling jackets, and layouts required to safely fit a 15 BBL tank into your operation.
Section 2: Cone-Bottom Yeast Management vs. Open Vats
Choosing your primary tank shape means thinking about how the base design affects your daily yeast harvesting and cleanup.
The industry standard for a modern fermentation tank is a vertical cylinder with a steeply pitched 60-degree cone base.
This sharp 60-degree angle uses gravity to pull trub and dropping yeast into a dense plug at the bottom point.
By separating these solids from the main beer, brewers can harvest healthy yeast or purge waste without moving the liquid.
But many standalone conical fermenters are built as low-pressure systems, usually limited to pressures under 5 PSI.
Because they cannot handle high gas pressure, you cannot use them to force-carbonate finished beer with carbonation stones.
This means moving the beer to a separate bright tank, which shows the clear difference of a split brite tank vs fermenter setup.
Open-top fermenters, by contrast, leave the beer surface exposed to clean air, removing all head pressure to boost ester flavors in traditional ales.
Comparing Cone Geometry
Not every commercial 15 BBL fermenter uses the same cone geometry.
Some suppliers specify a 60-degree cone, while others describe an 80-degree interior angle. Because manufacturers may measure these angles differently, buyers should request a dimensional drawing and compare the actual cone height, outlet position, and available floor-to-ceiling clearance.
The angle listed in a product description does not always tell the whole story.
Before choosing a tank, ask for the CAD drawing and look at the complete cone shape. This provides a much clearer idea of yeast collection, outlet access, and the total height required inside the cellar.
Section 3: The Multi-Functional High-Pressure Unitank
To save floor space and cut the product loss that comes with transferring beer, growing mid-size plants use multi-purpose unitanks.
A unitank has the same vertical, cone-bottom shape as standard Conical fermenters but uses thicker steel plates and reinforced support bands.
These upgrades let the vessel safely handle continuous working pressures of 15 to 30 PSI.
Working under pressure completely changes how a cellar team manages packaging timelines.
Brewers can close the gas arm near the end of the cycle to trap natural carbon dioxide inside the beer.
This natural pressure carbonates the beer while keeping it safely sealed away from damaging oxygen.
A unitank also has permanent sanitary ports for high-pressure carbonation stones, rotating racking arms, and sample valves.
That lets you ferment, drop yeast, cold-crash, and fully carbonate the beer inside one sealed vessel with no extra transfers.
A tank made from 304 stainless steel is strong, hygienic, and ideal for daily brewery production.
When the vessel is rated up to 15 psi, it can support controlled pressure during fermentation, carbonation, or beer storage.
Proper head space is also important because it gives foam and gas enough room to expand safely inside the tank.
Vacuum and Pressure Relief Protection
A fermenter must be protected from vacuum as well as excessive positive pressure.
Internal pressure can fall during cold crashing, draining, product transfer, or cooling after a hot cleaning cycle. A correctly sized pressure and vacuum relief valve allows the vessel to equalize safely and helps prevent the tank walls from deforming under negative pressure.
Brewers often focus on how much positive pressure a unitank can hold, but vacuum damage can be just as serious.
When the beer cools rapidly or liquid leaves the vessel, the pressure inside can drop. A properly maintained vacuum relief valve protects the tank during these common cellar operations.
Section 4: Choosing the Right Tank Size
To keep an efficient layout, every growing beverage company should pick tank sizes that match its brewhouse batch size.
For research labs, small startups, or recipe development, a compact 1 bbl fermenter is the standard choice for pilot testing.
These small setups let you check yeast performance and test new ingredients without risking large amounts of raw materials.
As a business grows into a neighborhood taproom, most operators move up to a larger 5 bbl fermenter to supply their draft lines.
For startups launching with local draft accounts, a 7 bbl fermenter is the classic entry-level production size.
Moving up to a 10 bbl fermenter gives growing taprooms the extra volume to support packaging lines like mobile canning.
As regional demand climbs, upgrading your cellar to a heavy-duty 15 bbl fermenter or a 30 bbl fermenter improves labor efficiency.
Finally, a 90 bbl fermenter provides the volume to keep high-speed canning and bottling lines running all the time.
Scaling the Whole Operation, Not Just the Tank
Increasing fermentation capacity without upgrading the surrounding operation can simply move the bottleneck to another department.
Before installing additional 15 BBL tanks, the brewery should review glycol capacity, wastewater limits, packaging speed, cold-storage space, ingredient supply, keg and can availability, and staffing requirements. Every part of the production chain must be able to handle the higher output.
More tank volume does not automatically mean more beer ready for sale.
If the canning line, glycol chiller, cold room, or cellar team cannot keep up, the new fermenters may spend time waiting instead of producing revenue. The entire brewery must grow together.
Section 5: Insulation and Multi-Zone Glycol Jackets
A commercial 15 BBL vessel needs a strong utility setup because larger volumes of beer generate a lot of heat during active fermentation.
The vessel should have multi-zone laser-welded dimple jackets connected to an automated propylene glycol chiller.
Dimple jackets are efficient because they force the coolant into a turbulent flow across the steel surface.
This turbulence breaks up static layers, which speeds up heat transfer and prevents hot spots inside the tank.
To keep room temperature from affecting your fermentations, the vessel body should be wrapped in high-density polyurethane insulation.
All ports, sample valves, and pressure devices should use sanitary tri-clamp fittings so there are no threaded pockets where bacteria can hide.
The inside steel should be polished to a mirror finish, with a roughness of 0.8 micrometers or less.
This smooth finish makes automated cleaning more effective and stops wild yeast from forming biofilms inside the tank.
Independent Glycol Zones for Partial Batches
Independent glycol zones also make a 15 BBL fermenter more flexible when processing partial batches.
When the liquid level does not reach the upper jacket, the brewer can leave that zone off and cool only the lower portion of the tank. This prevents unnecessary cooling above the product level and improves temperature control for 7, 10, or 15 BBL batches.
A 15 BBL tank does not always need to be filled completely.
With independently controlled cooling zones, the brewery can run a smaller batch without wasting energy or cooling an empty section of the vessel. This gives the tank much more flexibility when production schedules change.
Separate Temperature Sensors for Each Zone
Separate temperature sensors can improve the performance of a multi-zone glycol system.
Installing an individual Pt100 sensor for the cone and another for the main tank body allows the control system to measure each area independently. This helps the brewer avoid excessive cooling in the cone while maintaining the correct temperature in the main liquid volume.
Two cooling jackets work best when each zone also has its own temperature sensor.
Instead of assuming that the entire tank is at the same temperature, the brewer can see what is happening in the cone and the main body and adjust each zone more accurately.
Section 6: Using One Vessel Across Different Drinks
The core rules of temperature control, cleaning, and fluid transfer apply across every professional drink industry.
In the wine industry, a dedicated WINE FERMENTER uses wide shapes to manage the cap of grape skins during red wine maceration.
White winemakers, cider producers, and mead makers often use vertical conical tanks that look exactly like standard beer gear.
This overlap lets microbreweries easily add small, niche drinks to their product line.
Setting up a beer brewing fermenter for multi-drink work means using flexible temperature control systems.
To study how different yeast strains react to different tank shapes, production teams read the manuals shared by the Siebel Institute of Technology.
Understanding these fermentation basics helps your team keep quality high across every product style.
Section 7: Secondary Fermentation and Longer Aging
Managing your yeast across several generations keeps raw-material costs low and fermentations consistent.
In a traditional two-stage process, brewers move the young beer off the primary yeast into a dedicated secondary fermenter.
This secondary tank works well for long aging, wood-chip additions, or adding specialty fruits and spices.
Moving the beer to a clean tank keeps it from sitting on dead yeast too long, which prevents rubbery off-flavors from yeast autolysis.
A high-pressure unitank removes the need for that transfer by letting you dump yeast straight out of the bottom cone.
By opening the lower valve, the cellar team can remove trub and harvest healthy yeast without exposing the beer to air.
To study yeast biology and healthy harvesting, production managers read the journals shared by the American Society for Enology and Viticulture (ASEV).
Section 8: Steel Grade and Bio-Security
The steel blend and inside finish of your tanks directly affect your beer’s shelf life and daily cleaning costs.
Beverage tanks must be built from high-grade stainless steel, usually AISI 304 or the more acid-resistant AISI 316L.
These alloys contain plenty of chromium and nickel, which form a self-healing protective layer on the metal.
This layer protects the tank from cleaning acids, hard water, and the natural acidity of fruit and hops.
Any rough spots, weld lines, or scratches can shelter wild yeast and hide them from a microbrewery fermenter cleaning run.
To set safe cleaning temperatures and protect your staff, the Master Brewers Association of the Americas (MBAA) offers complete safety guides for cellar work.
Checking Shell, Jacket, and Cladding Thickness
Tank specifications should identify the thickness of the inner shell, cooling jacket, and external cladding separately.
Steel grade alone does not provide enough information to compare two fermenters. Buyers should request technical drawings showing material thicknesses, reinforcement points, vessel weight, dimensions, and the tested working pressure.
Two tanks can both be described as 304 stainless steel while having very different construction quality.
Checking the thickness of every layer makes it easier to understand what is actually being purchased and whether the vessel is suitable for years of daily commercial use.
Passivation of the Stainless Steel
Passivation should be included in the quality requirements for a new stainless steel fermenter.
After fabrication, grinding, and welding, the internal surface should be properly cleaned and passivated to remove free iron contamination and support the formation of a uniform protective oxide layer. Buyers can request documentation confirming that passivation was completed before shipment.
A polished tank may look ready to use, but the treatment performed after welding is just as important as its appearance.
Proper passivation helps the stainless steel rebuild its protective surface and gives the brewery a cleaner, more corrosion-resistant vessel from the first production cycle.
Section 9: Procurement Comparison Table
Choosing your core production tanks means balancing your upfront budget against the daily labor hours your crew spends.
The table below shows the main engineering differences between common tank choices:
| Mechanical Design Element | Low-Pressure Conical Setup | High-Pressure 15 BBL Unitank |
| Maximum Pressure Tolerance | Limited below 5 PSI threshold | Rated for 15 to 30 PSI continuously |
| Yeast Purging Mechanism | Standard 60° bottom dump valve | Bottom dump valve with pressurized links |
| Force Carbonation Stone | Incompatible (Requires bright tank split) | Fully Compatible via sanitary tri-clamp ports |
| Oxidation Risk Profile | Higher if moved to separate bright tanks | Zero (Sealed all-in-one cellaring cycle) |
Warranty and Technical Support
Warranty coverage and technical support should be evaluated before purchasing a 15 BBL fermenter.
Breweries should compare warranty duration, spare-parts availability, response times, installation assistance, and support for pressure or cooling-system problems. A lower purchase price may provide little value if replacement valves or technical assistance are difficult to obtain.
The tank itself is only part of the investment.
A strong warranty and a supplier who can quickly provide parts or technical help can prevent a minor equipment problem from stopping production for several days.
Factory Leak and Pressure Testing
Factory acceptance testing should be completed before a 15 BBL fermenter is shipped.
The manufacturer should test the vessel and glycol jackets separately for leaks and provide records of the procedures and results. Pressure tests, valve checks, jacket inspections, and verification of the safety devices reduce the risk of discovering manufacturing defects after installation.
Finding a leak after the tank has been delivered and connected can become an expensive problem.
Requesting factory test records gives the brewery proof that the vessel, cooling jackets, valves, and safety components were checked before leaving the manufacturer.
Section 10: Automated Clean-In-Place (CIP) Cleaning
Keeping your whole cellar perfectly clean is the single most important factor in protecting your brand and shelf life.
To clean these large tanks without manual scrubbing, plants use automated Clean-In-Place (CIP) loops.
The CIP setup uses a high-flow spray ball in the top dome to push cleaning fluids across every inside surface.
A standard CIP run starts with a fresh-water pre-rinse to remove heavy yeast cakes and loose material.
Next, a heated caustic solution (sodium hydroxide) is pumped through the loop at 60°C to 80°C to break down oils and proteins.
After a quick rinse, an acid wash of phosphoric and nitric acid dissolves hard minerals like calcium oxalate scale.
To check how well the cleaning worked, quality teams use automated ATP swabs to confirm the tank is sterile.
For advice on removing stubborn mineral scale without scratching the polished steel, producers follow the manuals shared by the Brewers Association.
Separate Blow-Off Tube and CIP Ball
A dedicated blow-off tube should be separated from the CIP spray ball connection.
During active fermentation, foam, yeast, and hop particles can enter the blow-off line. Keeping this line separate helps prevent residue from reaching the CIP assembly and allows the spray ball to maintain full cleaning coverage.
A separate blow-off tube may look like a small design detail, but it makes everyday cellar work much easier.
Krausen and hop particles stay away from the CIP spray ball, so the cleaning system remains ready to deliver consistent coverage after every batch.
Section 11: Real-Time Density Sensors and Tracking
The drinks industry is moving to digital systems that turn traditional cellars into connected, data-driven networks.
In the past, a cellar worker had to draw a sample from every active tank each day to check the sugar level with a glass hydrometer.
This manual step takes labor hours, wastes beer, and adds a small contamination risk every time the valve is opened.
To fix this, modern facilities install digital inline density sensors right into the tank walls.
These sensors use continuous pressure data or sound frequencies to track sugar drop in real time and send alerts to the brewer’s phone.
If a batch slows down unexpectedly, the software warns the team early so they can adjust the temperature before it stalls.
To balance these automated systems with classic flavor, production teams consult the Australian Wine Research Institute (AWRI) on how processing changes affect long-term aging.
Section 12: Planning Your Cellar Investment
Choosing your primary 15 bbl fermenter takes a clear, long-term view of your beer styles, packaging methods, and available floor space.
If your business moves inventory quickly through taproom lines, standalone low-pressure conicals are an affordable entry path.
But if your goal is expanding wholesale distribution with canning lines, high-pressure unitanks save a lot of time and labor.
Be sure to check your building’s floor-weight limits, plan for plenty of headspace, and enforce strict automated CIP loops.
By matching your equipment to your volume goals and treating your cellar as a key partner, your team can keep delivering great beer.
